Remote I/O

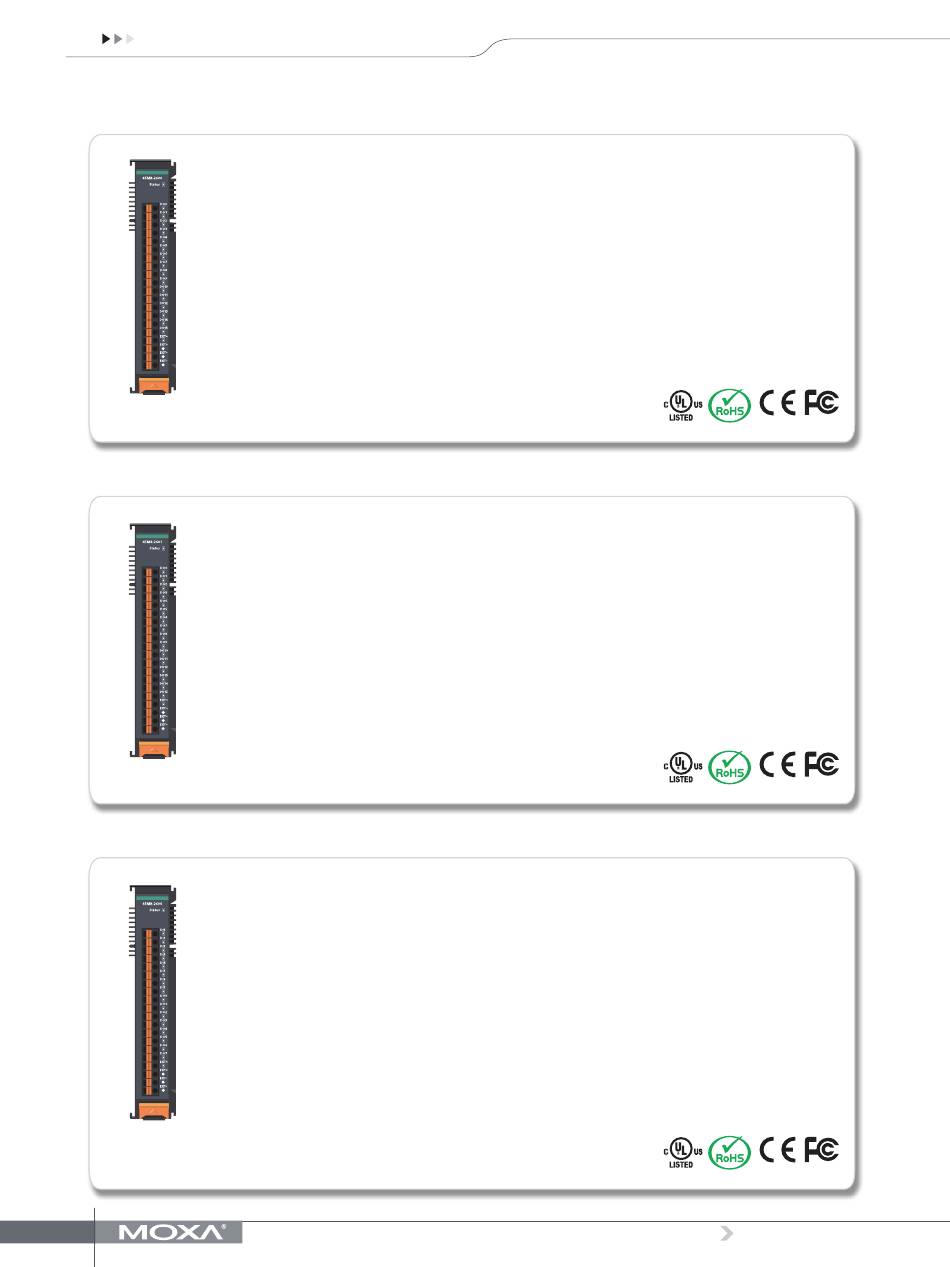

45MR-2600: Module for ioThinx 4500 Series, 16 DOs, 24 VDC, sink
Inputs and Outputs
Digital Outputs: 16 channels
Isolation: 3k VDC or 2k Vrms
Digital Output
Type: Sink type
I/O Mode: DO or Pulse (only supports the first 4
channels)
External power: 12/24 VDC
Pulse Output Frequency: 1 kHz
Over-Voltage Protection: 45 VDC
Over-Temperature Shutdown: 175°C (typical),
150°C (min.)
Current Rating: 500 mA per channel
Physical Characteristics
Weight: 77.4 g (0.171 lb)
45MR-2601: Module for ioThinx 4500 Series, 16 DOs, 24 VDC, source
Inputs and Outputs
Digital Outputs: 16 channels
Isolation: 3k VDC or 2k Vrms
Digital Output
Type: Source type
I/O Mode: DO or Pulse (only supports the first 4
channels)
External power: 12/24 VDC
Pulse Output Frequency: 1 kHz
Over-Temperature Shutdown: 175°C (typical),
150°C (min.)
Current Rating: 500 mA per channel
Physical Characteristics
Weight: 77 g (0.17 lb)
45MR-2606: Module for ioThinx 4500 Series, 8 DIs, 24 VDC, PNP, 8 DOs, 24 VDC, source
Inputs and Outputs
Digital Inputs: 8 channels
Digital Outputs: 8 channels
Isolation: 3k VDC or 2k Vrms
Digital Input
Sensor Type: PNP type
I/O Mode: DI or Counter (only supports the first 2
channels)
Dry Contact:
On: Short to FP+
Off: Open
Wet Contact (DI to FP-):
On: 10 to 30 VDC
Off: 0 to 3 VDC
Counter Frequency: 1 kHz
Digital Filtering Time Interval: Software configurable
7
Power Consumption (Max.)
System Power: 57.2 mA @ 3.3 VDC
Field Power: 11 mA @ 12/24 VDC
MTBF (mean time between failures)
Time: 647,334 hrs
Standard: Telcordia SR332
Power Consumption (Max.)
System Power: 63.8 mA @ 3.3 VDC
Field Power: 11 mA @ 12/24 VDC
MTBF (mean time between failures)
Time: 660,179 hrs
Standard: Telcordia SR332
Digital Output
Type: Source type
I/O Mode: DO or Pulse (only supports the first 2 channels)
External power: 12/24 VDC
Pulse Output Frequency: 1 kHz
Over-Temperature Shutdown: 175°C (typical), 150°C (min.)
Current Rating: 500 mA per channel
Physical Characteristics
Weight: 77.4 g (0.171 lb)
(Max.)
Power Consumption
System Power: 62.7 mA @ 3.3 VDC
Field Power: 15.4 mA @ 12 VDC, 18.7 mA @ 24 VDC
MTBF (mean time between failures)
Time: 638,652 hrs
Standard: Telcordia SR332
