Barco DCS-200 Specifications: Front Panel; Rear Panel

Dual-channel switcher with preview output.
Hide thumbs


Advertisement

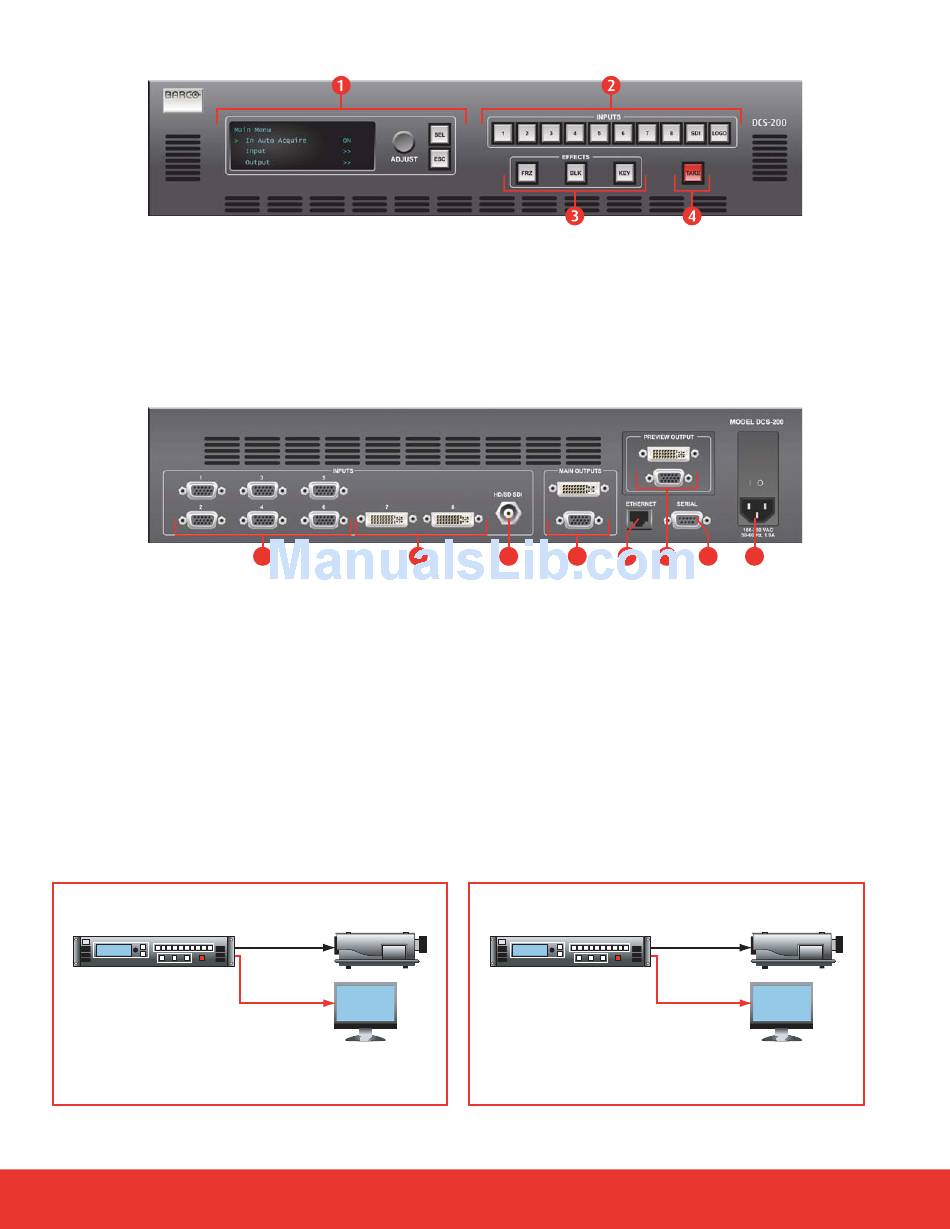

Front Panel

1: Display Section
Four (4) line VFD Display
Menu navigation via rotary encoder knob, Select/Escape buttons
2: Inputs Section
Ten buttons select the corresponding input source, or the stored LOGO
image, to be placed on program after the TAKE button is pressed.
Rear Panel
1-3: Input Connectors
1: Six Analog Inputs via HD-15 VGA connectors
Supports YPbPr and RGBHV
10-bits/color sampling at maximum 170 MHz
True pixel mapping (1:1) for signal resolutions up to 1600x1200@60
Hz. Sources with higher pixel rates (1920x1080p@60, 1920x1200@60
and 2048x1080p@60) are also supported.
2: Two Digital or Analog Inputs via DVI-I connectors
8-bit digital input per DDWG 1.0 with HDCP support.
RGBHV data via analog pins of the DVI-I connector.
The digital source will be processed if valid DVI signals are detected.
The Analog source can be selected via the front panel menu.
3: Serial Digital Input (HD/SD SDI) via BNC connector (optional)
SD SDI per SMPTE 259M-C (NTSC/PAL resolution)
HD SDI per SMPTE 292M (HDTV)
Application 1
DCS-200
Main Program output is connected to the projector at 1080p;
Preview connected is sent to a confidence low-res XGA monitor.
Program and preview output resolutions are different.
31-XXXXXXXXXX-00 Apr 08
Any item contained in this datasheet may change without notice.
www.barco.com
1
2
Program DVI
1920 x 1080p
Preview RBGHV
1024 x 768
3: Effects Section
FRZ: Instantly freezes the current image that is on program.
BLK: Transitions program to black.
KEY: The key source will transition to/from program, after the TAKE
button is pressed.
4: TAKE
Transitions the selected source or KEY to Program.
3
4
5
4: Main Output Connectors
Program output in digital format on the DVI-I connector and in analog
format on the HD-15 connector.
Progressive resolutions at RGBHV.
HDCP Encryption support for DVI signals.
5: Ethernet
RJ-45 connector for 10/100Base-T Ethernet communications
6: Preview Output Connectors
Selectable output in digital format on the DVI-I connector and in
analog format on the HD-15 connector.
7: Serial RS-232
DB-9 connector for communicating with external serial devices.
8: AC Power
Input Power: 100-240 VAC, 47-63 Hz; Auto-Ranging
240 watts maximum
Application 2
DCS-200
Input adjustments are made by viewing the source on the
preview monitor, before is transitioned to the program output.
Program and preview output resolutions need to be the same.
11101 Trade Center Drive Rancho Cordova, CA 95670
Tel. 916 859 2500 Fax 916 859 2515
6
7
8
Program DVI
1600 x 1200p
Preview DVI
1600 x 1200
Barco Media and Entertainment
