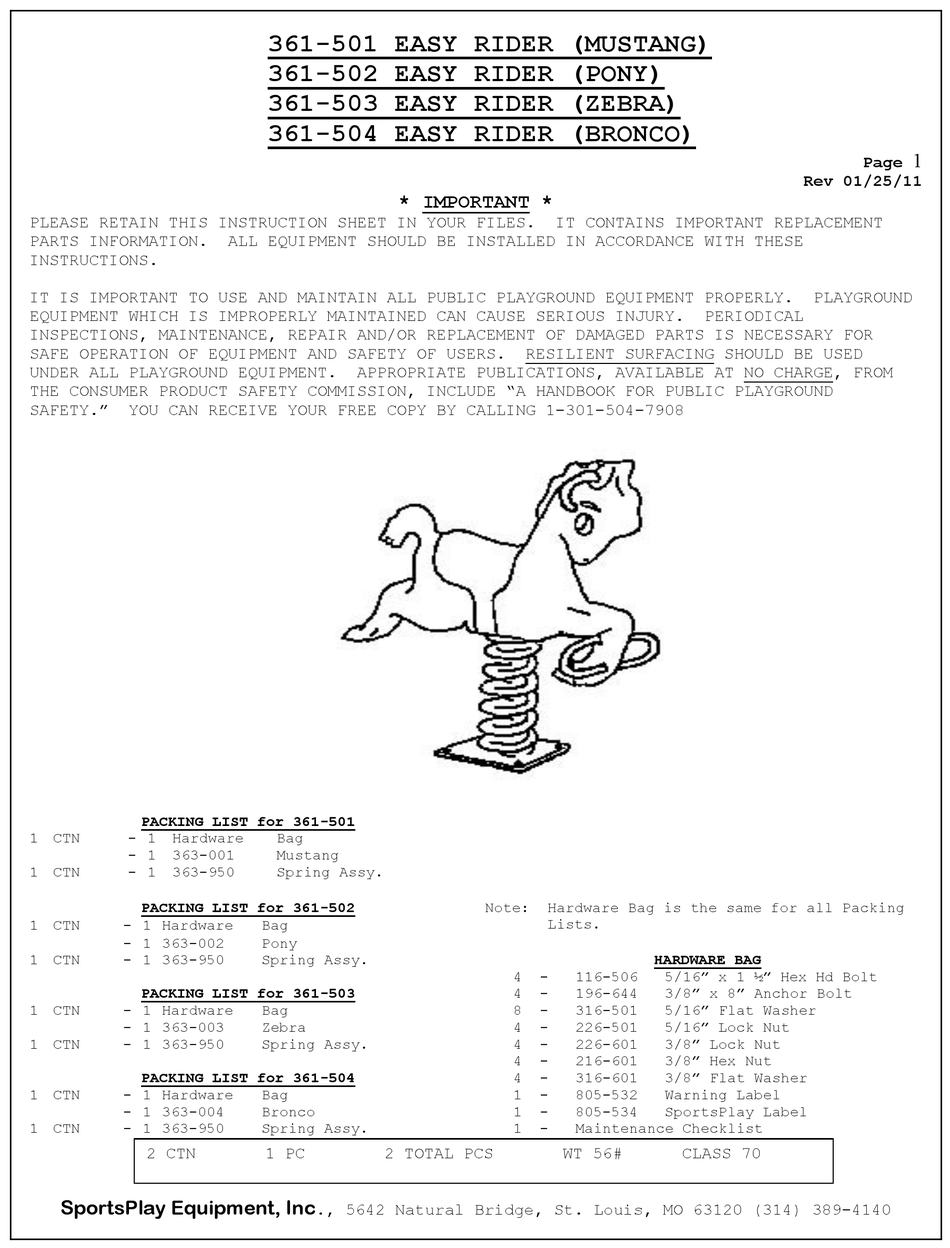

SportsPlay Equipment MUSTANG EASY RIDER 361-501 Manual

PLEASE RETAIN THIS INSTRUCTION SHEET IN YOUR FILES.
PARTS INFORMATION.
INSTRUCTIONS.
IT IS IMPORTANT TO USE AND MAINTAIN ALL PUBLIC PLAYGROUND EQUIPMENT PROPERLY.
EQUIPMENT WHICH IS IMPROPERLY MAINTAINED CAN CAUSE SERIOUS INJURY.
INSPECTIONS, MAINTENANCE, REPAIR AND/OR REPLACEMENT OF DAMAGED PARTS IS NECESSARY FOR
SAFE OPERATION OF EQUIPMENT AND SAFETY OF USERS.
UNDER ALL PLAYGROUND EQUIPMENT.
THE CONSUMER PRODUCT SAFETY COMMISSION, INCLUDE "A HANDBOOK FOR PUBLIC PLAYGROUND
SAFETY." YOU CAN RECEIVE YOUR FREE COPY BY CALLING 1-301-504-7908
PACKING LIST for 361-501
1 CTN - 1 Hardware
- 1 363-001
1 CTN - 1 363-950
PACKING LIST for 361-502
1 CTN - 1 Hardware
- 1 363-002
1 CTN - 1 363-950
PACKING LIST for 361-503
1 CTN - 1 Hardware
- 1 363-003
1 CTN - 1 363-950
PACKING LIST for 361-504
1 CTN - 1 Hardware
- 1 363-004
1 CTN - 1 363-950
2 CTN
SportsPlay Equipment, Inc
361-501 EASY RIDER (MUSTANG)
361-502 EASY RIDER (PONY)
361-503 EASY RIDER (ZEBRA)
361-504 EASY RIDER (BRONCO)
* IMPORTANT *
ALL EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THESE
APPROPRIATE PUBLICATIONS, AVAILABLE AT NO CHARGE, FROM
Bag
Mustang
Spring Assy.
Bag
Pony
Spring Assy.
Bag
Zebra
Spring Assy.
Bag
Bronco
Spring Assy.
1 PC 2 TOTAL PCS
., 5642 Natural Bridge, St. Louis, MO 63120 (314) 389-4140
IT CONTAINS IMPORTANT REPLACEMENT
RESILIENT SURFACING SHOULD BE USED
Note: Hardware Bag is the same for all Packing
Lists.
HARDWARE BAG
4 - 116-506 5/16" x 1 ½" Hex Hd Bolt
4 - 196-644 3/8" x 8" Anchor Bolt
8 - 316-501 5/16" Flat Washer
4 - 226-501 5/16" Lock Nut
4 - 226-601 3/8" Lock Nut
4 - 216-601 3/8" Hex Nut
4 - 316-601 3/8" Flat Washer
1 - 805-532 Warning Label
1 - 805-534 SportsPlay Label
1 - Maintenance Checklist
WT 56#
Rev 01/25/11
PLAYGROUND
PERIODICAL
CLASS 70
1
Page
