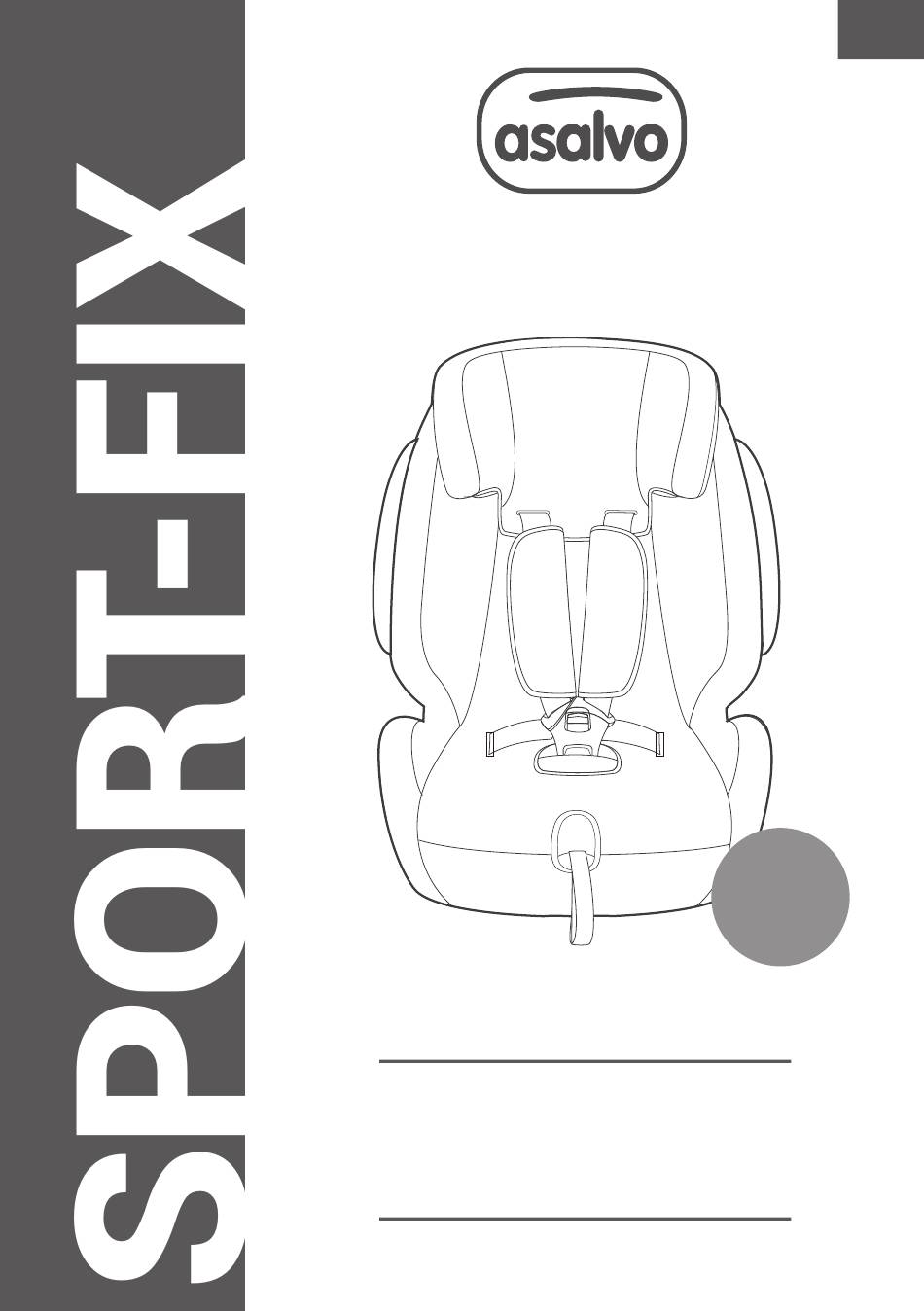

- Page 1 Manual GROUP I+II+III (9-36 kG) ref : 15051/15068 IMPORTANT: SAVE ThESE INSTRUCTIONS FOR FUTURE REFERENCE. www.asalvo.com...
- Page 2 INSTRUCTIONS Dear Customer: Thank you for purchasing a product ASALVO. We’re glad you’ve chosen one of our products, and we hope you are satisfied with its use. Please read the instructions carefully and keep this manual in a safe place.
- Page 3 MAINTENANCE & CLEANING • The car seat can be cleaned by using lukewarm water and soap. Do not use aggressive cleaners like abrasives or thinner. • The cover should be washed by hand at a maximum temperature of 30ºC. Do not put it in the dryer CERTIFICATION AS A ChILd SAFETy SEAT INSTALLEd IN A VEhICLE Tested and certified according to ASALVO / SPORT FIX ECE* R 44/04 Child Safety Seat Gruop Body Weight SPORT FIX I+II+III 9-36 kg.
- Page 4 INSTRUCTIONS Headrest shoulder Belt Guide Harness slots Harness strap shoulder Pads Harness Buckle Buckle Pads adjusting device reclining handle Headrest adjusting handle cover top tether release side protetion button top tether strap Belt Guide top tether Hook locking arms snap isofiX Button release Button...
-
Page 5: Use In The Vehicle
INSTRUCTIONS USE IN ThE VEhICLE dO NOT use with 2-point belt. Please install with the 3-point belt. Please observe the regulations applicable to your particular country. the safety belt must be approved to ece r 16 or a comparable standard. do not use with 2-point belt. can be used if the vehicle seat is equipped with a 3-point belt. - Page 6 INSTRUCTIONS SECURING yOUR BABy SECURING yOUR BABy SEGURIdAd dEL BEBÉ IMPORTANT the correct belt height of the shoulder belts is attained when the belt disappears into the shell slightly above the shoulder of the child. Make sure that the shoulder belts fit properly over the shoulders of the child.
- Page 7 INSTRUCTIONS alturas del rePosacaBeZas tWo Positions adJustMent MecHanisM Pulse y tire del manillar ajustable this car seat can be reclined to two situado detrás del reposacabezas. different seating position by pulling un correcto ajuste del adjusting board under seat base reposacabezas asegura una as shown in right pictures.(only for protección...
- Page 8 INSTRUCTIONS securinG Your BaBY usinG tHe Harness d. slide buckle tongues Clic k together and insert them in the buckle with an audible sound “ click”. e. Pull the straps tight by the harness adjustment strap, and make sure the tightness is comfortable to your kid.
-
Page 9: Installation In The Vehicle
INSTRUCTIONS INSTALLATION IN ThE VEhICLE Please do not leave your child unattended in the child safety seat in the vehicle. For the protection of all vehicle occupants in the case of an emergency stop or an accident unsecured persons or objects may cause injury to other vehicle occupants. - Page 10 INSTRUCTIONS installation of GroUp I for tHe cHildren WHose WeiGHt BetWeen 9-18KG WitH IsoFIX AND top tEtHEr. a. Press the isofiX release button and push the isofiX connectors forward as far as possible. B. Push the isofiX connectors directly into the anchorages until heard an audible sound “click”.
- Page 11 INSTRUCTIONS d. Pull out the top tether and press the tether strap release button to extend the strap until it is long enough to hook the user-ready tether anchorage behind. e. Hook the tether strap hook onto the user-ready anchorages. check there maybe are 3 anchorages for the hook, please find one in your favor.
- Page 12 INSTRUCTIONS GroUp I CAr BELt installation for cHildren’s WeiGHt BeWteen 9-18KG a. Pull the car belt and insert belt buckle into front side cover hole(picture 1), then across seat back and took out from the other side of cover hole (picture 2) ,finally buckle up until heard“click”sound.
- Page 13 INSTRUCTIONS GroUp I CAr BELt installation for cHildren’s WeiGHt BeWteen 9-18KG B. Please make sure car belt should be through red guide slot at the top of seat back and red waist belt guide without no twist. after installation, tighten car belt as arrow indicator direction (picture4) c Pull the harness strap as far...
- Page 14 INSTRUCTIONS GROUP II/III VEhICLE BELT installation and it is for tHe cHildren WHose WeiGHt BetWeen 15-36kG. Before the installation, please take away the Harness system of baby car seat. Note: the Baby insert, Harness strap, Harness buckle, Buckle pads& shoulder pads should be stored away safely for future use ( see 5.1...
- Page 15 INSTRUCTIONS GROUP II/III VEhICLE BELT installation and it is for tHe cHildren WHose WeiGHt BetWeen 15-36kG. d. Make sure the lap belt is stretched as low as possible over the child’s hips , within the belt guides, and fastened into the buckle . the shoulder belt must cross midway between child’s shoulder and neck.
-
Page 16: Care Instructions
INSTRUCTIONS CARE INSTRUCTIONS reMoVinG tHe 5-Point Harness sYsteM and coVer a. Press adjusting advice and pull harness strap towards as far as you can, details see page 12. open the cover snap button at the bottom of seat back as shown right picture. - Page 17 INSTRUCTIONS refittinG tHe 5-Point Harness sYsteM and coVer a. after washing, place the cover on the shell. B Pass both sides of harness strap through strap slots at the bottom of seat. then, lead straps through buckle metal connector c. Pass buckle clip through buckle pads and put clip into bottom slot, then rotate it to shown position in right picture.
- Page 18 Thak you follow us for PurcHasinG asalVo Product. www.asalvo.com imported by estar asalvo s.l. cif B91234286 c/1, Pi fridex · 41500 · alcalá de Guadaíra · sevilla · tfno. 902 360 516 fax: 955 631 205 · email: info@asalvo.com www.asalvo.com...
