c. Once the power controller is turned on, the display should power on.
Figure 4 illustrates the connections described above:

2.3.2 Connections to Multiple G2 Power Controllers

To connect the G2 display to multiple G2 power controllers:
a. Connect one end of a standard Cat 6 cable to one of the two RJ45 ports on the back
of the display.
b. Connect the other end of the cable to one of the two RJ45 ports on the first G2
power controller.
c. Use additional standard Cat 6 cables to daisy-chain other power controllers, as
shown in Figure 5.
d. Once any of the power controllers is turned on, the display should power on.
®

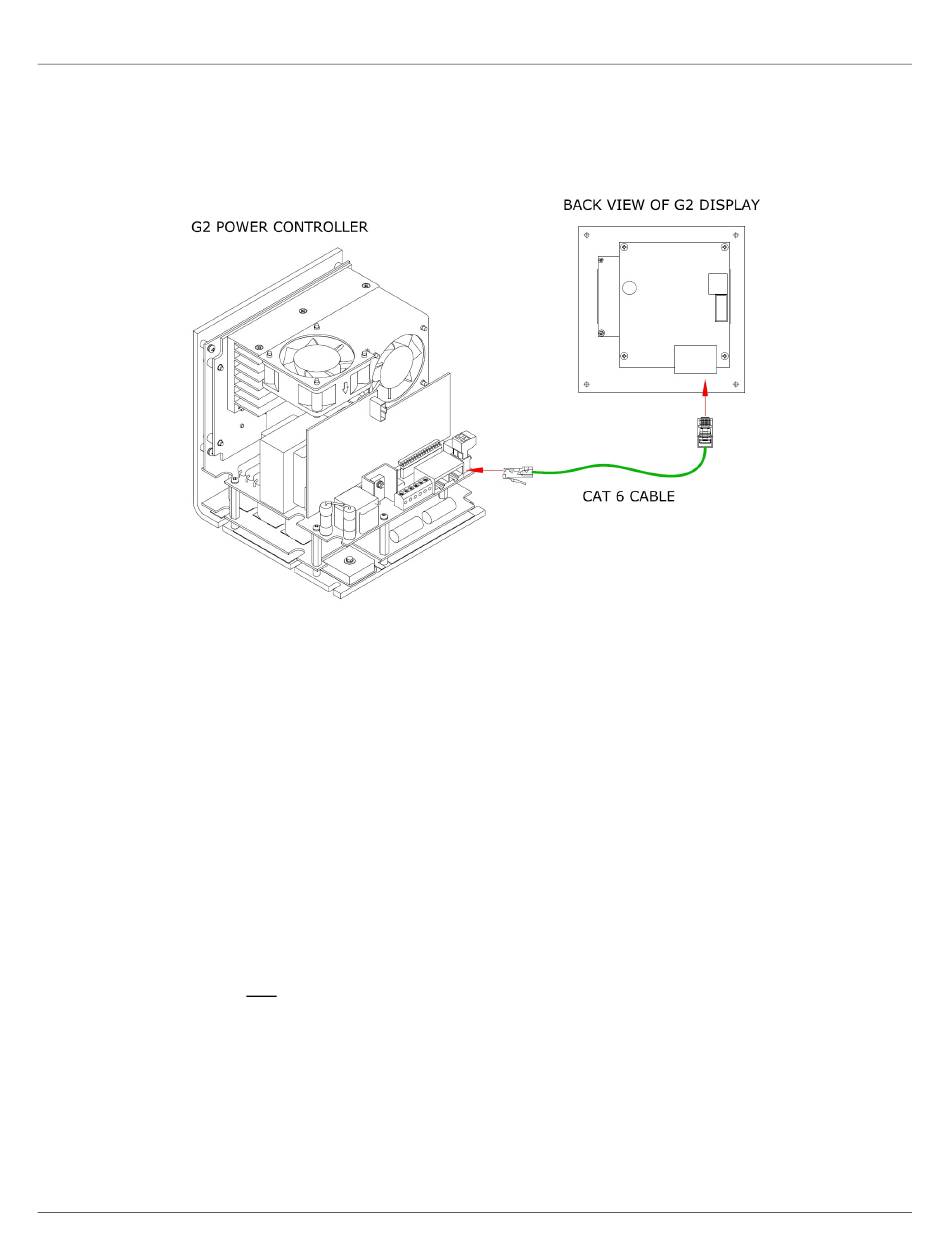

Figure 4: Connections to a Single G2 Power Controller
