2.2 Panel Mount

To mount the G2 display into a panel:
a. Prepare a cutout and four mounting holes in the door of the panel as shown in Figure 3. All
cutouts should be clean and free of burrs.
b. Install the display board on the door of the enclosure using the supplied hardware and
gasket.

2.3 Connections

2.3.1 Connections to a Single G2 Power Controller

To connect the G2 display to a single G2 power controller:
a. Connect one end of a standard Cat 6 cable to one of the two RJ45 ports on the back
of the display.
b. Connect the other end of the cable to one of the two RJ45 ports on the G2 power
controller.
®

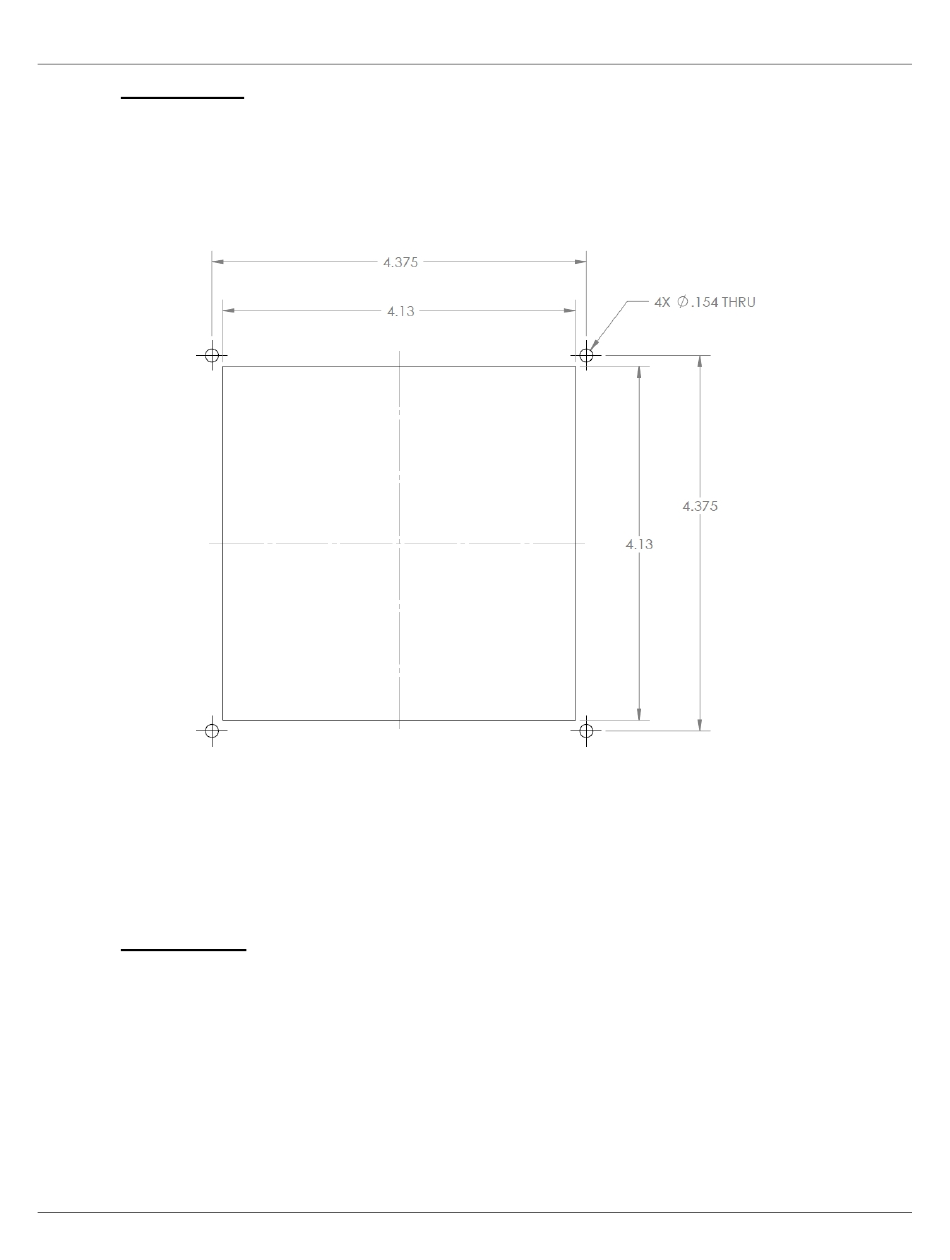

Figure 3: Panel Cutout Dimensions

G2 DISPLAY BOARD – IP-POWERDSP-G2
