Figure 21: Min Values Screen - Evoqua IONPURE IP-POWERDSP-G2 Operation & Maintenance Manual

IONPURE
MIN VALUES: displays minimum values of important parameters to help with
performance analysis and troubleshooting. These values are monitored continuously
while the DC output of the power controller is enabled (closed remote ON/OFF input).
MODULE OHMS&AMPS: this is a log of module resistance versus DC amps recorded
every 24 hours. This log will contain data samples from the last 1440 hours or 60 days.
The most recent data sample will be at the top of the list. The UP and DOWN arrows
can be used to scroll through all the data.
®

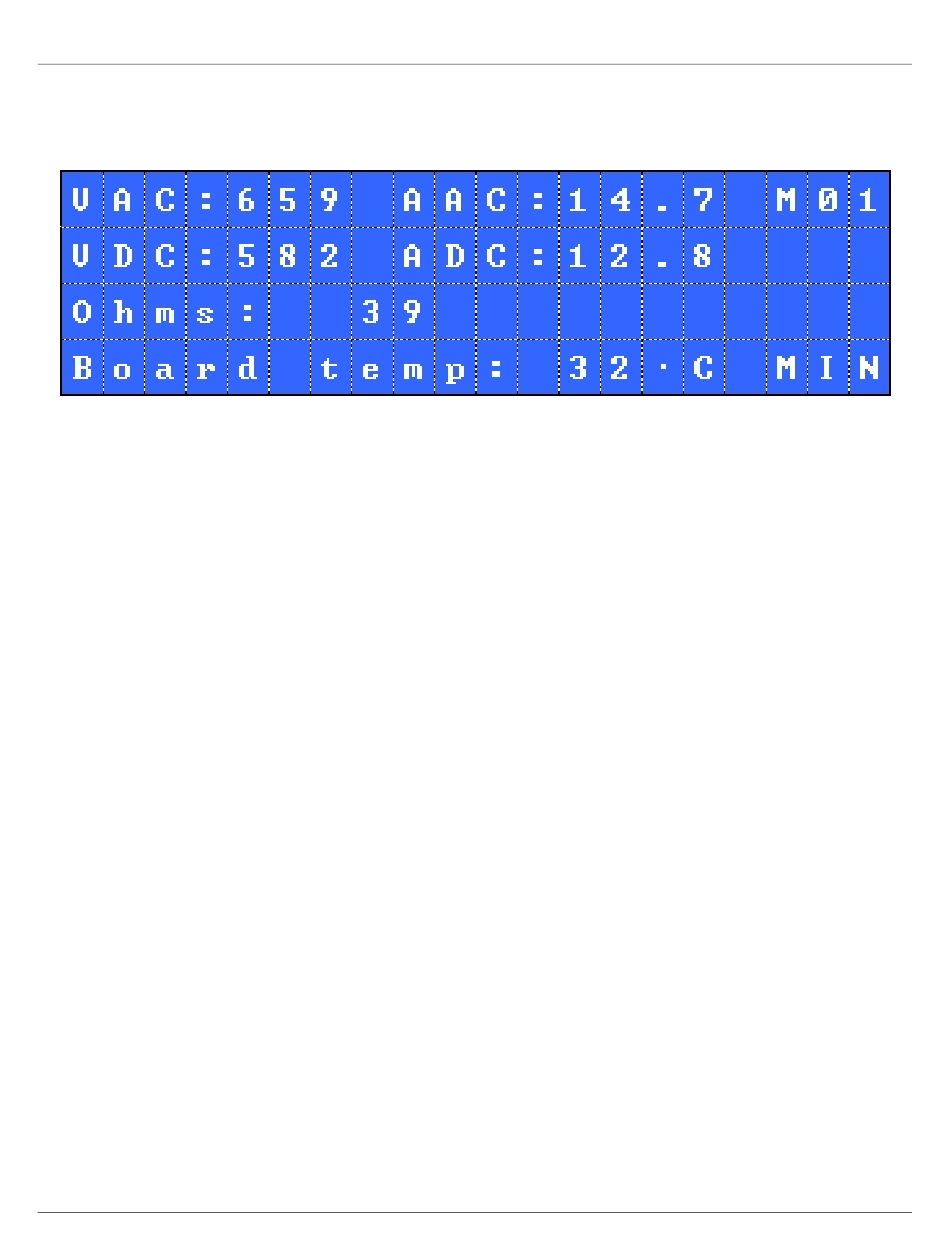

Figure 21: MIN VALUES Screen

VAC: minimum registered AC input voltage to the selected power controller.
AAC: minimum registered AC current drawn by the selected power controller.
VDC: minimum registered DC output volts from the selected power controller to
the CEDI module.
ADC: minimum registered DC amps from the selected power controller to the
CEDI module.
Ohms: minimum registered CEDI module resistance, in ohms. Resistance
values above 996 ohms are represented with "***HI".
Board temp: minimum registered temperature in degrees Celsius of the
selected power controller's heatsink.
G2 DISPLAY BOARD – IP-POWERDSP-G2
