2 Installation
2.1 Requirements
The G2 Display Board meets NEMA 4/IP65 requirements when properly installed. The unit is
intended to be mounted into an enclosed panel with the supplied gasket to provide a seal at the
panel cutout and it is secured from the back with the provided nuts.
The environmental limits for operation are 0 to 50 °C at up to 95% relative humidity
(non-condensing).
Consider the display's dimensions shown in Figure 2 to select the proper size for the panel.
All connections and settings in this section should be made without
energizing the power controller(s). Review other safety procedures prior to
working in the panel.
®

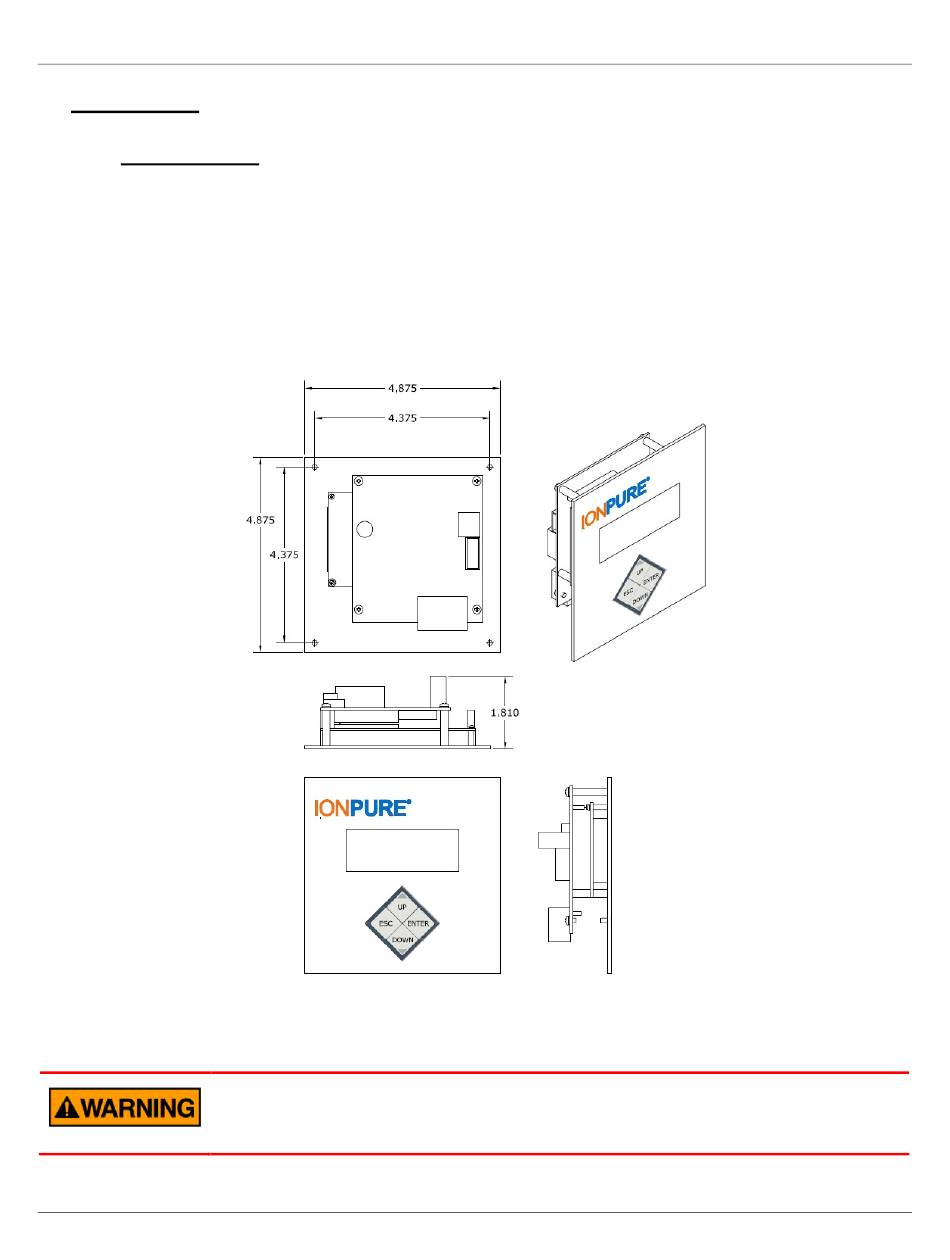

Figure 2: G2 Display Dimensions
G2 DISPLAY BOARD – IP-POWERDSP-G2
IP-POWERDSP-G2MAN Rev 1
Page 7 of 25
