Op.hours: hours in operation since the initial startup. Time is accrued only while
the Remote ON/OFF input of the power controller is closed.
Ic (VDC): estimated value of analog signal between terminals Ic+/Ic- of the
selected power controller.
Vm (VDC): estimated value of analog signal between terminals Vm+/Vm- of the
selected power controller.
Im (VDC): estimated value of analog signal between terminals Im+/Im- of the
selected power controller.

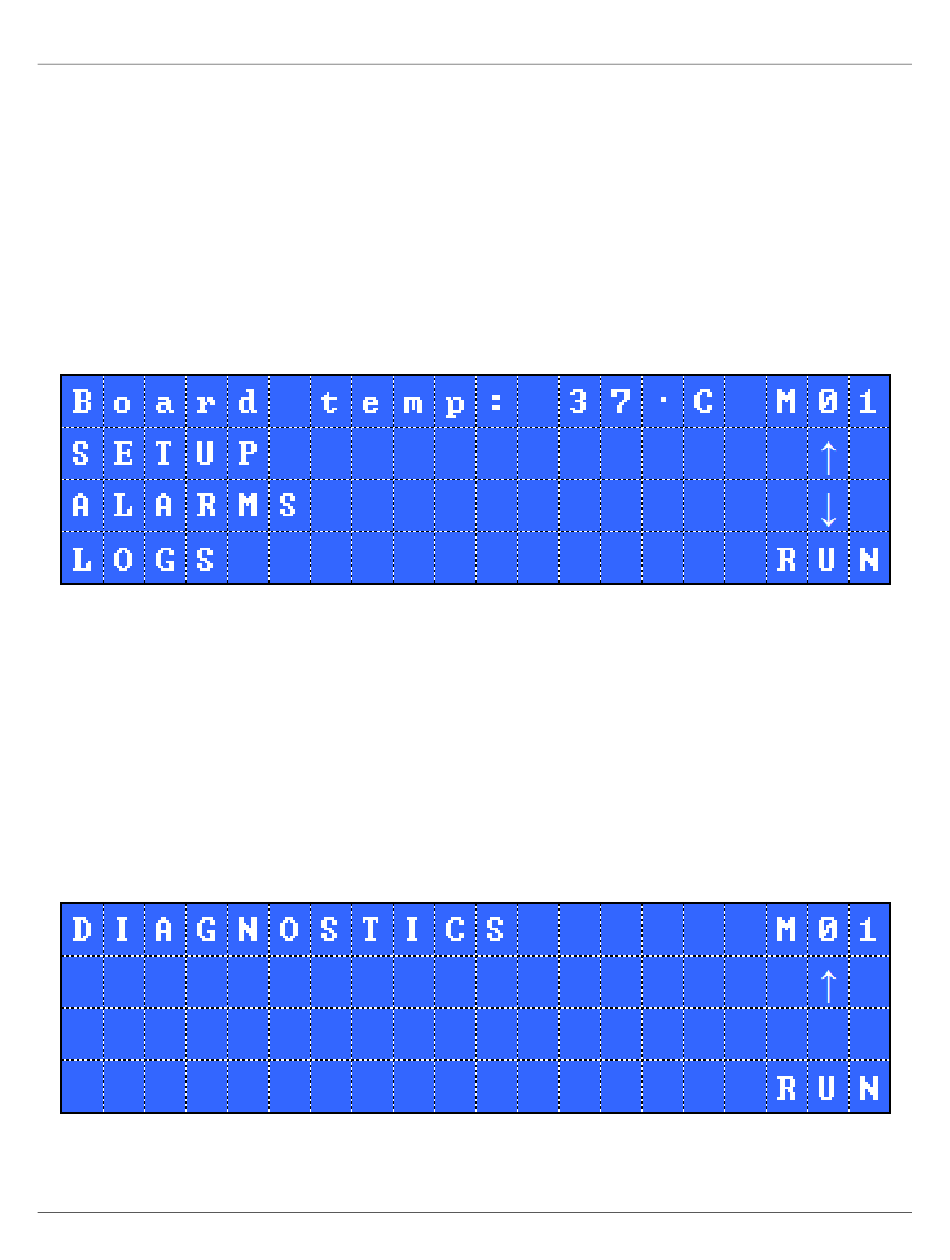

Figure 13: RUN Screen – Page 4
Board temp: temperature in degrees Celsius of the selected power controller's
heatsink. If this value is higher than 64±4
trigger.
Press ENTER to activate the cursor and use the UP or DOWN arrows to select
any of the following submenus: SETUP, ALARMS or LOGS. Press ENTER
again to access the selected option.
Figure 14: RUN Screen – Page 5
G2 DISPLAY BOARD – IP-POWERDSP-G2
o
C, a high temperature alarm will
IP-POWERDSP-G2MAN Rev 1 Page 16 of 25
