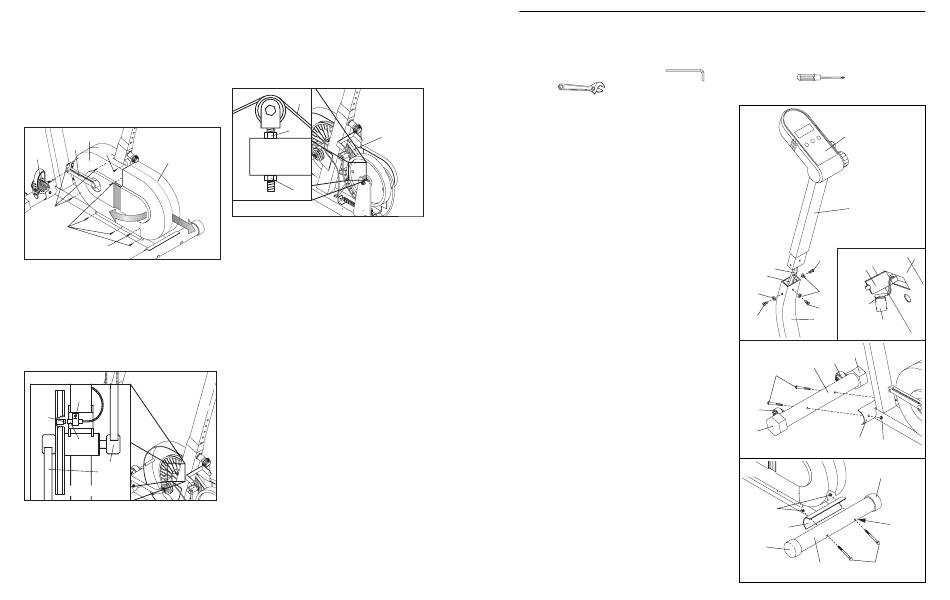

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the Left Side Shield (24) and the Flywheel
Cover (31) must be removed. Using an adjustable
wrench, turn the Left Pedal (20) clockwise and
remove it. Next, remove the indicated Screws (2, 32,
35, 49). Turn the Left Crank Arm (66) to the position
shown and slide off the Left Side Shield and the
Flywheel Cover.
24
66
32
20
31
2
35
49
Next, locate the Reed Switch (4). Turn one of the
crank arms until the Magnet (33) is aligned with the
Reed Switch. Loosen but do not remove the indicated
Screw (35). Slide the Reed Switch slightly closer to or
away from the Magnet. Retighten the Screw. Turn the
Crank for a moment. Repeat until the console displays
correct feedback. When the Reed Switch is correctly
adjusted, re-attach the left side shield, flywheel cover
and left pedal.
35
33
4
Crank
Arms
Front View
HOW TO ADJUST THE DRIVE BELT
The exercise cycle features a Drive Belt (1) that must
be kept properly adjusted. If the Drive Belt slips as you
pedal, it should be adjusted. To do this, the left side
shield and the flywheel cover must be removed. Refer
to the instructions at the left and remove these parts.
1
44
1
44
Locate the Drive Belt (1). To tighten the Drive Belt,
loosen the bottom M10 Nylon Locknut (44) and then
tighten the upper M10 Nylon Locknut (44) slightly; be
careful not to overtighten the Drive Belt. When the
Drive Belt is properly adjusted, tighten the lower M10
Nylon Locknut (44). Then, re-attach the left side shield,
the flywheel cover, and the left pedal.
12
ASSEMBLY
Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed.
Assembly requires the included allen wrench
spanners .
1. As you attach the Handlebar Post (19), be careful
not to pull on the Resistance Cable (6). If the
Resistance Cable is pulled further out of the Frame
(13), it will be difficult to push it back in. The
Handlebar Post will then be difficult to assemble
and the resistance knob may not function properly.
Hold the Handlebar Post (19) near the Frame (13)
as shown. Feed the Resistance Cable (6) and the
Reed Switch Wire (4) into the Frame, and then slide
the Handlebar Post into the Frame. Be careful not
to pinch the Resistance Cable or the Reed
Switch Wire. Attach the Handlebar Post with three
M10 x 22mm Button Head Bolts (55) and three M10
Lock Washers (61).
The Console (5) requires one 9-volt battery (not
included). An alkaline battery is recommended. Refer
to the inset drawing. Locate the battery door on the
back of the Console. Slide the battery door to the left
and open it as shown. Press a battery into the bat-
tery clip and insert the battery into the Console.
Close the battery door and slide it to the right.
2. Make sure that there are Adjustable Endcaps (25)
on the ends of the Front Stabiliser (27).
Hold the Front Stabiliser (27) against the saddle on
the front of the Frame (13). Make sure that the
Front Stabiliser is turned so the Wheels (26) are
not touching the floor. The Wheels should not
touch the floor unless the exercise bike is tipped for
moving. Attach the Front Stabiliser with two M10 x
75mm Carriage Bolts (54) and two M10 Nylon
Locknuts (44).
3. Make sure that there are Round Endcaps (15) on
the ends of the Rear Stabiliser (16).
Hold the Rear Stabiliser (16) against the saddle on
the rear of the Frame (13), with the square holes
facing away from the saddle. Attach the Rear
Stabiliser with two M10 x 75mm Carriage Bolts (54)
and two M10 Nylon Locknuts (44).
, a phillips screwdriver and two adjustable
1
5
19
55
Battery
Door
4
6
61 61
Battery
55
Clip
55 13
Battery
2
25
26
27
54
26
25
13
44
3
15
44
13
15
16 54
5
5
Square
Holes
