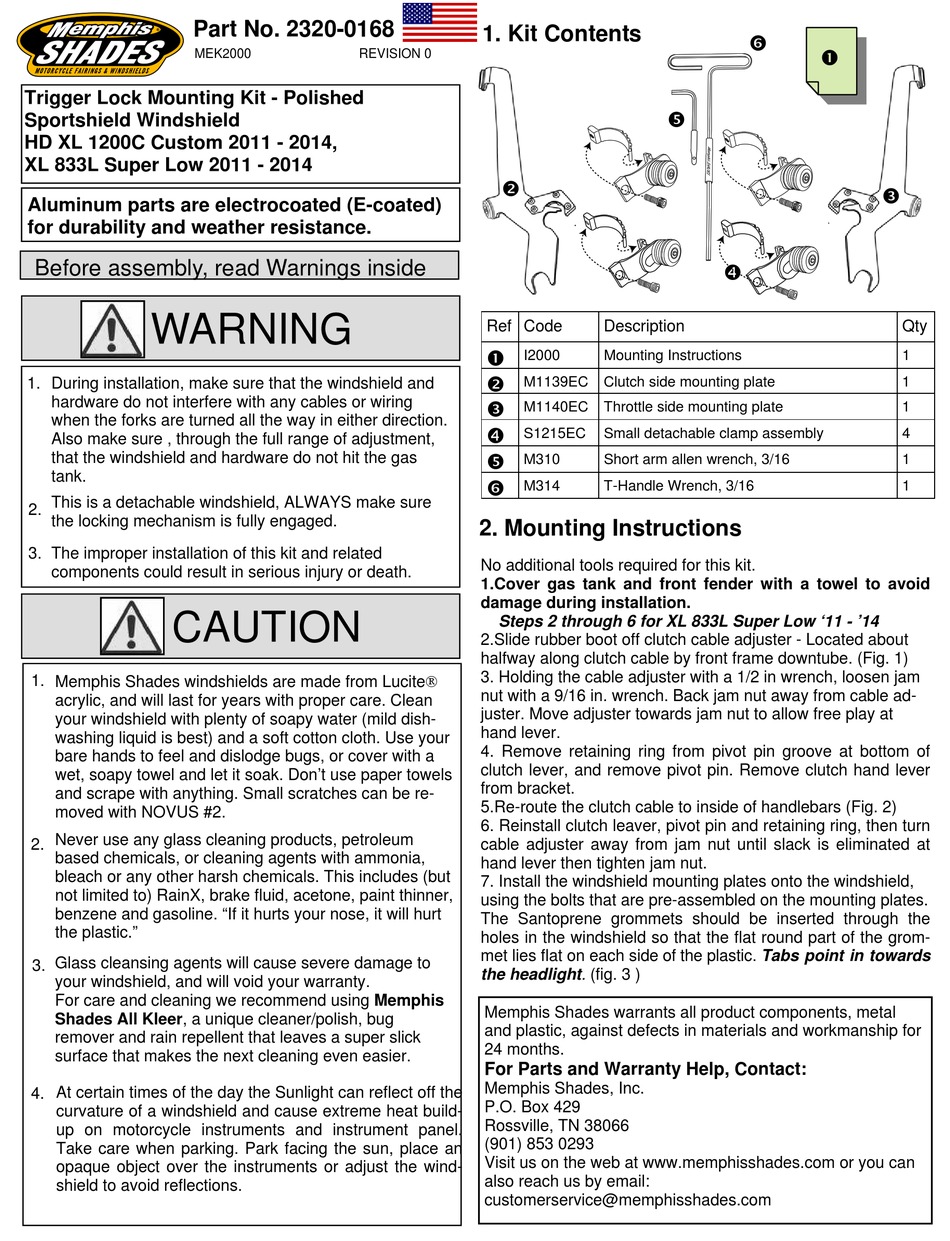

Memphis Shades 2320-0168 Quick Start Manual

Part No. 2320-0168
MEK2000
Trigger Lock Mounting Kit - Polished
Sportshield Windshield
HD XL 1200C Custom 2011 - 2014,
XL 833L Super Low 2011 - 2014
Aluminum parts are electrocoated (E-coated)
for durability and weather resistance.
Before assembly, read Warnings inside
WARNING
1. During installation, make sure that the windshield and
hardware do not interfere with any cables or wiring
when the forks are turned all the way in either direction.
Also make sure , through the full range of adjustment,
that the windshield and hardware do not hit the gas
tank.
This is a detachable windshield, ALWAYS make sure
2.
the locking mechanism is fully engaged.
3. The improper installation of this kit and related
components could result in serious injury or death.
CAUTION
1.
Memphis Shades windshields are made from Lucite
acrylic, and will last for years with proper care. Clean
your windshield with plenty of soapy water (mild dish-
washing liquid is best) and a soft cotton cloth. Use your
bare hands to feel and dislodge bugs, or cover with a
wet, soapy towel and let it soak. Don't use paper towels
and scrape with anything. Small scratches can be re-
moved with NOVUS #2.
Never use any glass cleaning products, petroleum
2.
based chemicals, or cleaning agents with ammonia,
bleach or any other harsh chemicals. This includes (but
not limited to) RainX, brake fluid, acetone, paint thinner,
benzene and gasoline. "If it hurts your nose, it will hurt
the plastic."
Glass cleansing agents will cause severe damage to
3.
your windshield, and will void your warranty.
For care and cleaning we recommend using Memphis
Shades All Kleer, a unique cleaner/polish, bug
remover and rain repellent that leaves a super slick
surface that makes the next cleaning even easier.
4. At certain times of the day the Sunlight can reflect off the
curvature of a windshield and cause extreme heat build-
up on motorcycle instruments and instrument panel.
Take care when parking. Park facing the sun, place an
opaque object over the instruments or adjust the wind-
shield to avoid reflections.
1. Kit Contents
REVISION 0

Ref Code

I2000

M1139EC

M1140EC

S1215EC

M310

M314
2. Mounting Instructions
No additional tools required for this kit.
1.Cover gas tank and front fender with a towel to avoid
damage during installation.
Steps 2 through 6 for XL 833L Super Low '11 - '14
2.Slide rubber boot off clutch cable adjuster - Located about
halfway along clutch cable by front frame downtube. (Fig. 1)
3. Holding the cable adjuster with a 1/2 in wrench, loosen jam
nut with a 9/16 in. wrench. Back jam nut away from cable ad-
juster. Move adjuster towards jam nut to allow free play at
hand lever.
4. Remove retaining ring from pivot pin groove at bottom of
clutch lever, and remove pivot pin. Remove clutch hand lever
from bracket.
5.Re-route the clutch cable to inside of handlebars (Fig. 2)
6. Reinstall clutch leaver, pivot pin and retaining ring, then turn
cable adjuster away from jam nut until slack is eliminated at
hand lever then tighten jam nut.
7. Install the windshield mounting plates onto the windshield,
using the bolts that are pre-assembled on the mounting plates.
The Santoprene grommets should be inserted through the
holes in the windshield so that the flat round part of the grom-
met lies flat on each side of the plastic. Tabs point in towards
the headlight. (fig. 3 )
Memphis Shades warrants all product components, metal
and plastic, against defects in materials and workmanship for
24 months.
For Parts and Warranty Help, Contact:
Memphis Shades, Inc.
P.O. Box 429
Rossville, TN 38066
(901) 853 0293
Visit us on the web at www.memphisshades.com or you can
also reach us by email:
customerservice@memphisshades.com



Description
Mounting Instructions
Clutch side mounting plate
Throttle side mounting plate
Small detachable clamp assembly
Short arm allen wrench, 3/16
T-Handle Wrench, 3/16


Qty
1
1
1
4
1
1
