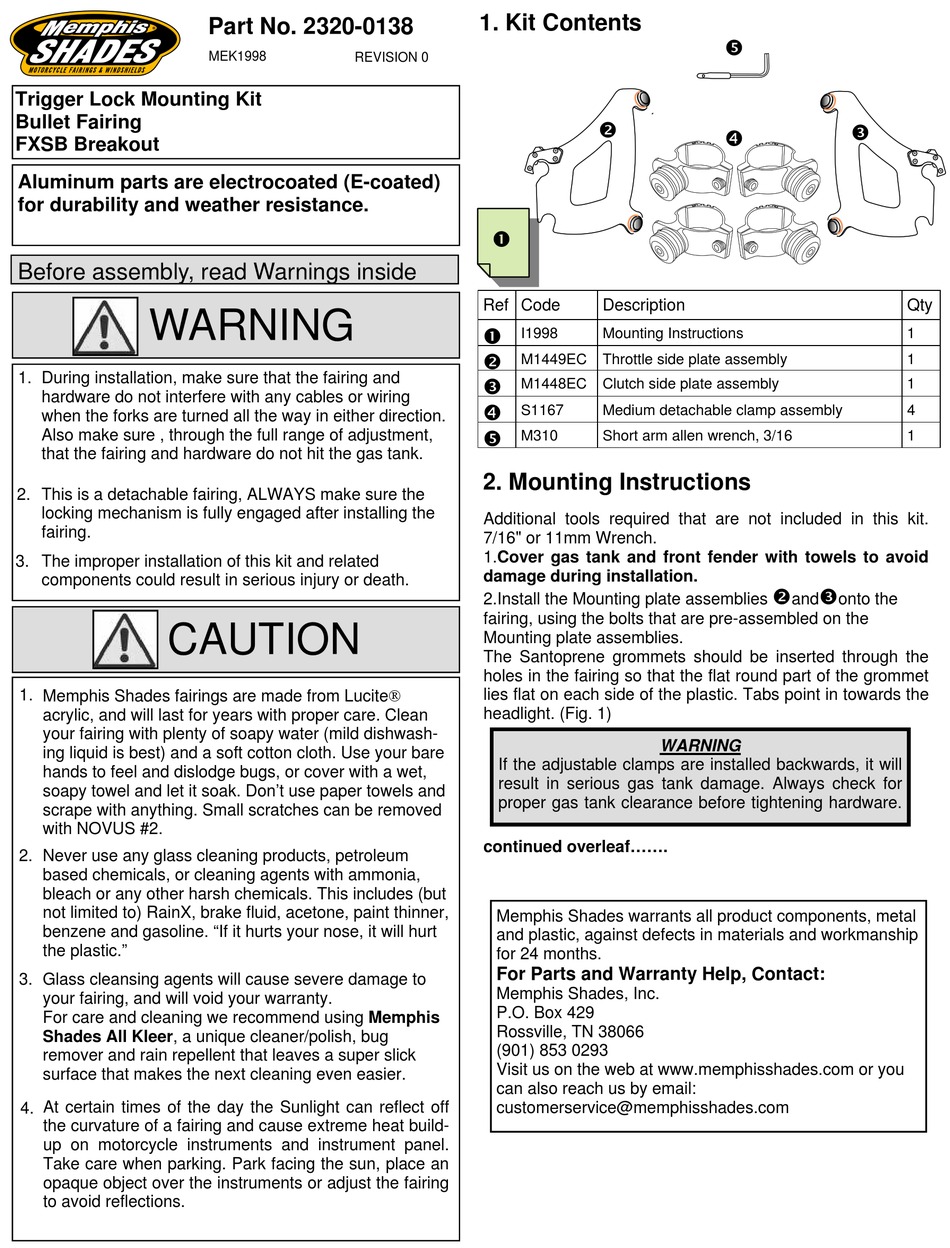

Trigger Lock Mounting Kit
Bullet Fairing
FXSB Breakout
Aluminum parts are electrocoated (E-coated)
for durability and weather resistance.
Before assembly, read Warnings inside
WARNING
1.
During installation, make sure that the fairing and
hardware do not interfere with any cables or wiring
when the forks are turned all the way in either direction.
Also make sure , through the full range of adjustment,
that the fairing and hardware do not hit the gas tank.
2.
This is a detachable fairing, ALWAYS make sure the
locking mechanism is fully engaged after installing the
fairing.
3.
The improper installation of this kit and related
components could result in serious injury or death.
CAUTION
1.
Memphis Shades fairings are made from Lucite
acrylic, and will last for years with proper care. Clean
your fairing with plenty of soapy water (mild dishwash-
ing liquid is best) and a soft cotton cloth. Use your bare
hands to feel and dislodge bugs, or cover with a wet,
soapy towel and let it soak. Don't use paper towels and
scrape with anything. Small scratches can be removed
with NOVUS #2.
2.
Never use any glass cleaning products, petroleum
based chemicals, or cleaning agents with ammonia,
bleach or any other harsh chemicals. This includes (but
not limited to) RainX, brake fluid, acetone, paint thinner,
benzene and gasoline. "If it hurts your nose, it will hurt
the plastic."
3.
Glass cleansing agents will cause severe damage to
your fairing, and will void your warranty.
For care and cleaning we recommend using Memphis
Shades All Kleer, a unique cleaner/polish, bug
remover and rain repellent that leaves a super slick
surface that makes the next cleaning even easier.
At certain times of the day the Sunlight can reflect off
4.
the curvature of a fairing and cause extreme heat build-
up on motorcycle instruments and instrument panel.
Take care when parking. Park facing the sun, place an
opaque object over the instruments or adjust the fairing
to avoid reflections.
Part No. 2320-0138
MEK1998
REVISION 0

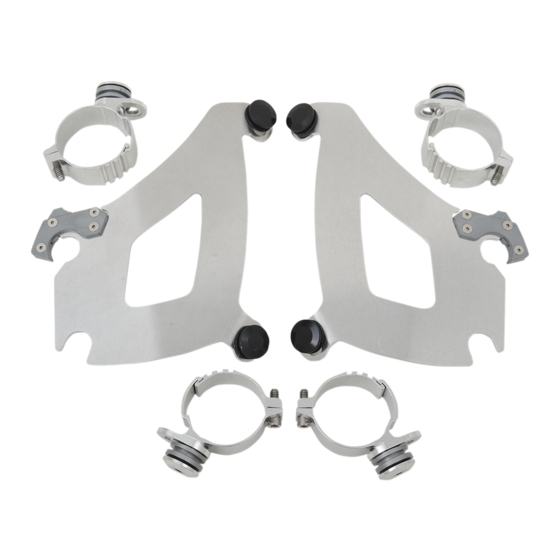

1. Kit Contents

Ref Code
Description
I1998

Mounting Instructions

M1449EC
Throttle side plate assembly
M1448EC
Clutch side plate assembly
S1167
Medium detachable clamp assembly
M310
Short arm allen wrench, 3/16
2. Mounting Instructions
Additional tools required that are not included in this kit.
7/16" or 11mm Wrench.
1.Cover gas tank and front fender with towels to avoid
damage during installation.
2.Install the Mounting plate assemblies
fairing, using the bolts that are pre-assembled on the
Mounting plate assemblies.
The Santoprene grommets should be inserted through the
holes in the fairing so that the flat round part of the grommet
lies flat on each side of the plastic. Tabs point in towards the
headlight. (Fig. 1)
If the adjustable clamps are installed backwards, it will
result in serious gas tank damage. Always check for
proper gas tank clearance before tightening hardware.
continued overleaf.......
Memphis Shades warrants all product components, metal
and plastic, against defects in materials and workmanship
for 24 months.
For Parts and Warranty Help, Contact:
Memphis Shades, Inc.
P.O. Box 429
Rossville, TN 38066
(901) 853 0293
Visit us on the web at www.memphisshades.com or you
can also reach us by email:
customerservice@memphisshades.com
and
onto the
WARNING
Qty
1
1
1
4
1
