Memphis Shades MEB1705 Manual

Part No. 2320-0155
MEB1705
Plates Only - Black
Memphis Fats/Slim Windshield
HD XL 1200C Custom 2011 - 2014
Aluminum parts are electrocoated (E-coated)
for durability and weather resistance.
Before assembly, read Warnings inside
WARNING
1. During installation, make sure that the windshield and
hardware do not interfere with any cables or wiring
when the forks are turned all the way in either direction.
Also make sure , through the full range of adjustment,
that the windshield and hardware do not hit the gas
tank.
This is a detachable windshield, ALWAYS make sure
2.
the locking mechanism is fully engaged.
3. The improper installation of this kit and related
components could result in serious injury or death.
CAUTION
1.
Memphis Shades windshields are made from Lucite
acrylic, and will last for years with proper care. Clean
your windshield with plenty of soapy water (mild dish-
washing liquid is best) and a soft cotton cloth. Use your
bare hands to feel and dislodge bugs, or cover with a
wet, soapy towel and let it soak. Don't use paper towels
and scrape with anything. Small scratches can be re-
moved with NOVUS #2.
Never use any glass cleaning products, petroleum
2.
based chemicals, or cleaning agents with ammonia,
bleach or any other harsh chemicals. This includes (but
not limited to) RainX, brake fluid, acetone, paint thinner,
benzene and gasoline. "If it hurts your nose, it will hurt
the plastic."
Glass cleansing agents will cause severe damage to
3.
your windshield, and will void your warranty.
For care and cleaning we recommend using Memphis
Shades All Kleer, a unique cleaner/polish, bug
remover and rain repellent that leaves a super slick
At certain times of the day the Sunlight can reflect off
4
the curvature of a windshield and cause extreme heat
build-up on motorcycle instruments and instrument
panel. Take care when parking. Park facing the sun,
place an opaque object over the instruments or adjust
the windshield to avoid reflections.

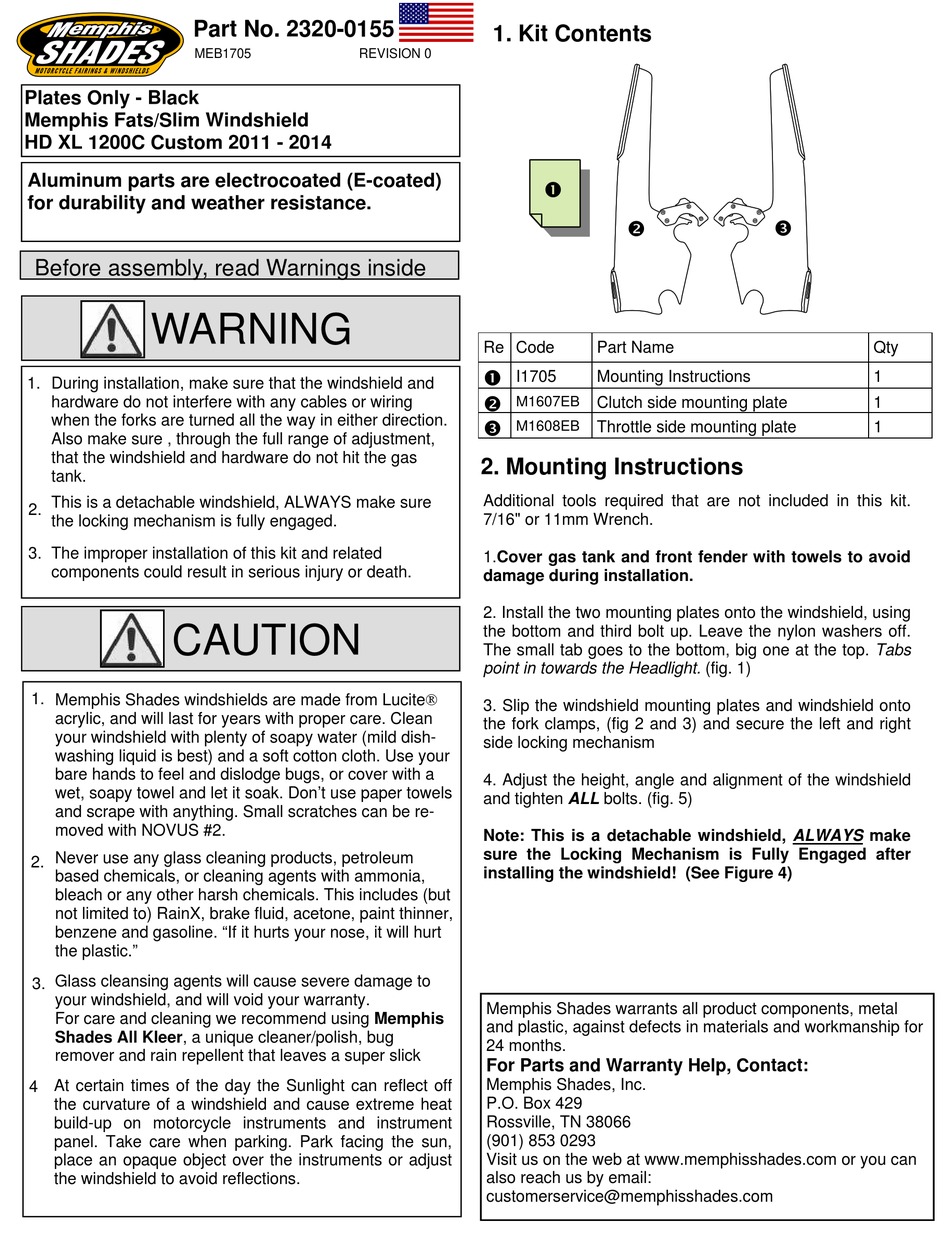

1. Kit Contents

REVISION 0
Re Code

I1705

M1607EB

M1608EB

2. Mounting Instructions

Additional tools required that are not included in this kit.
7/16" or 11mm Wrench.
1.Cover gas tank and front fender with towels to avoid
damage during installation.
2. Install the two mounting plates onto the windshield, using
the bottom and third bolt up. Leave the nylon washers off.
The small tab goes to the bottom, big one at the top. Tabs
point in towards the Headlight. (fig. 1)
3. Slip the windshield mounting plates and windshield onto
the fork clamps, (fig 2 and 3) and secure the left and right
side locking mechanism
4. Adjust the height, angle and alignment of the windshield
and tighten ALL bolts. (fig. 5)
Note: This is a detachable windshield, ALWAYS make
sure the Locking Mechanism is Fully Engaged after
installing the windshield! (See Figure 4)
Memphis Shades warrants all product components, metal
and plastic, against defects in materials and workmanship for
24 months.
For Parts and Warranty Help, Contact:
Memphis Shades, Inc.
P.O. Box 429
Rossville, TN 38066
(901) 853 0293
Visit us on the web at www.memphisshades.com or you can
also reach us by email:
customerservice@memphisshades.com


Part Name
Mounting Instructions

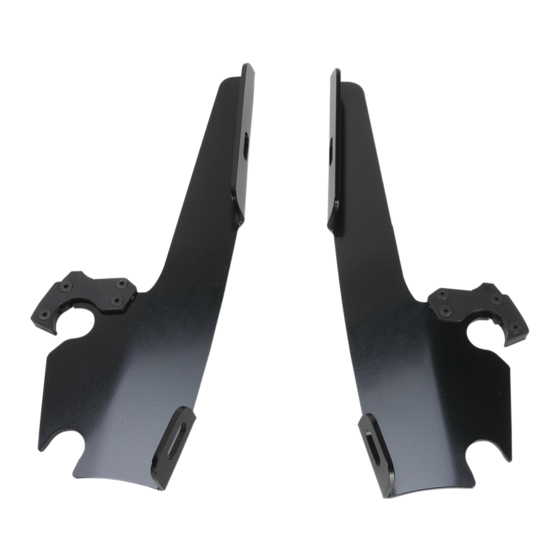

Clutch side mounting plate
Throttle side mounting plate

Qty
1
1
1
