Memphis Shades 2320-0001 Instructions

TOOLS REQUIRED: 3/16" Allen wrench (provided)
1. Cover the front fender with a towel, in case you drop something.

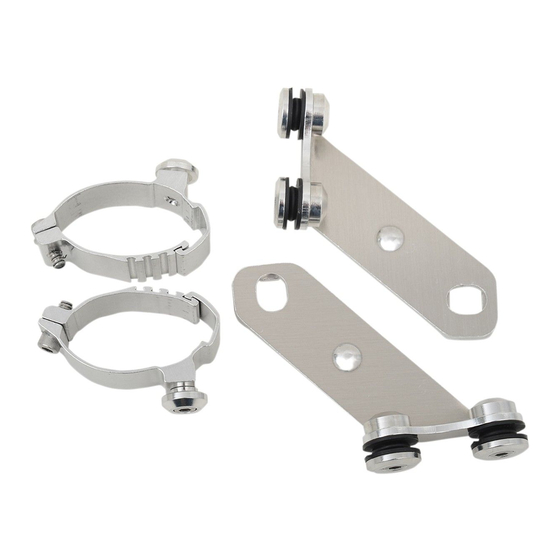

2. Attach the lowers plastic to the lowers mounting plates using the pre-assembled bolts and button nuts.
Install the components in the order shown in Figure 1.
Note: The neoprene washer has been replaced by FOUR santoprene grommets. The rubber grommets
should be inserted through the holes in the windshield so that the flat round part of the grommet
lays flat on each side of the windshield.
3. The mounting plate tabs should point away from each other when installed correctly. (see Figure 2)
4. Install the two clamps onto the fork legs just above the yoke, and attach the lowers mounting plates
to the fork clamps.
Note: the mounting plates can be mounted pointing up, for applications where the windshield is too
short to reach them otherwise.
5. Make sure the lowers don't interfere with anything when the forks are turned all the way in either
direction.
Fig. 1 Order of assembly
To clean your windshield, wash it with warm water and a mild, non-abrasive, dishwashing liquid. Use a
STANDARD INDEPENDENT LOWERS FOR SPRINGER FORKS
soft cloth such as a T-shirt or flannel cloth.
To protect your windshield, use NOVUS #2 to remove minor scratches, or use
Memphis Shades Shinola polish specially designed for plastic. NEVER use glass
cleansing agents, they may cause severe damage to your windshield.
Never use any petroleum-based chemicals, or cleaning agents with ammonia.
2320-0001
INSTRUCTIIONS
Fig.2 Position of plate tabs

CARE AND CLEANING
