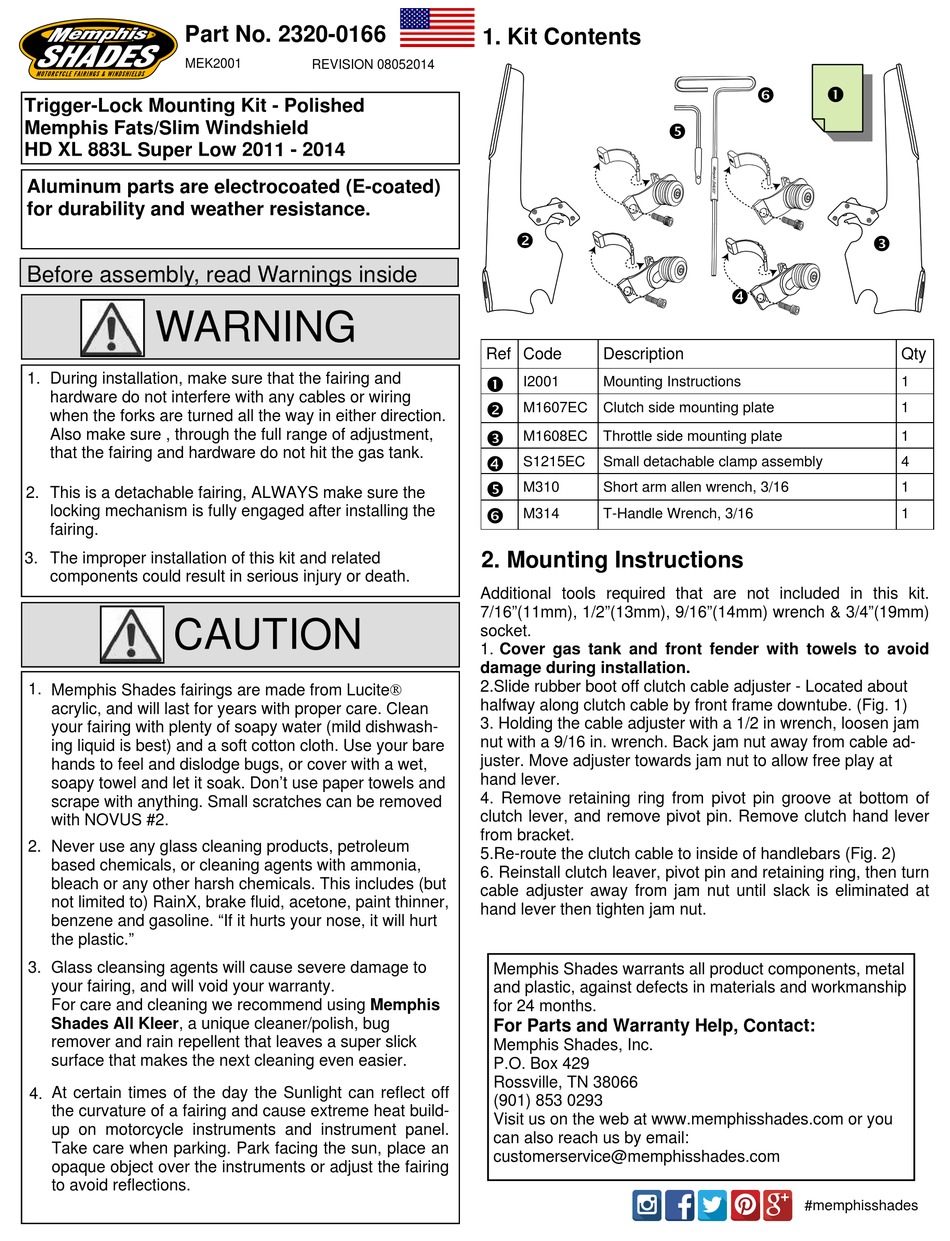

Memphis Shades 2320-0166 Quick Start Manual

Part No. 2320-0166
MEK2001
Trigger-Lock Mounting Kit - Polished
Memphis Fats/Slim Windshield
HD XL 883L Super Low 2011 - 2014
Aluminum parts are electrocoated (E-coated)
for durability and weather resistance.
Before assembly, read Warnings inside
WARNING
1. During installation, make sure that the fairing and
hardware do not interfere with any cables or wiring
when the forks are turned all the way in either direction.
Also make sure , through the full range of adjustment,
that the fairing and hardware do not hit the gas tank.
2. This is a detachable fairing, ALWAYS make sure the
locking mechanism is fully engaged after installing the
fairing.
3. The improper installation of this kit and related
components could result in serious injury or death.
CAUTION
1.
Memphis Shades fairings are made from Lucite
acrylic, and will last for years with proper care. Clean
your fairing with plenty of soapy water (mild dishwash-
ing liquid is best) and a soft cotton cloth. Use your bare
hands to feel and dislodge bugs, or cover with a wet,
soapy towel and let it soak. Don't use paper towels and
scrape with anything. Small scratches can be removed
with NOVUS #2.
2. Never use any glass cleaning products, petroleum
based chemicals, or cleaning agents with ammonia,
bleach or any other harsh chemicals. This includes (but
not limited to) RainX, brake fluid, acetone, paint thinner,
benzene and gasoline. "If it hurts your nose, it will hurt
the plastic."
3. Glass cleansing agents will cause severe damage to
your fairing, and will void your warranty.
For care and cleaning we recommend using Memphis
Shades All Kleer, a unique cleaner/polish, bug
remover and rain repellent that leaves a super slick
surface that makes the next cleaning even easier.
At certain times of the day the Sunlight can reflect off
4.
the curvature of a fairing and cause extreme heat build-
up on motorcycle instruments and instrument panel.
Take care when parking. Park facing the sun, place an
opaque object over the instruments or adjust the fairing
to avoid reflections.

1. Kit Contents

REVISION 08052014
Ref Code







2. Mounting Instructions

Additional tools required that are not included in this kit.
7/16"(11mm), 1/2"(13mm), 9/16"(14mm) wrench & 3/4"(19mm)
socket.
1. Cover gas tank and front fender with towels to avoid
damage during installation.
2.Slide rubber boot off clutch cable adjuster - Located about
halfway along clutch cable by front frame downtube. (Fig. 1)
3. Holding the cable adjuster with a 1/2 in wrench, loosen jam
nut with a 9/16 in. wrench. Back jam nut away from cable ad-
juster. Move adjuster towards jam nut to allow free play at
hand lever.
4. Remove retaining ring from pivot pin groove at bottom of
clutch lever, and remove pivot pin. Remove clutch hand lever
from bracket.
5.Re-route the clutch cable to inside of handlebars (Fig. 2)
6. Reinstall clutch leaver, pivot pin and retaining ring, then turn
cable adjuster away from jam nut until slack is eliminated at
hand lever then tighten jam nut.



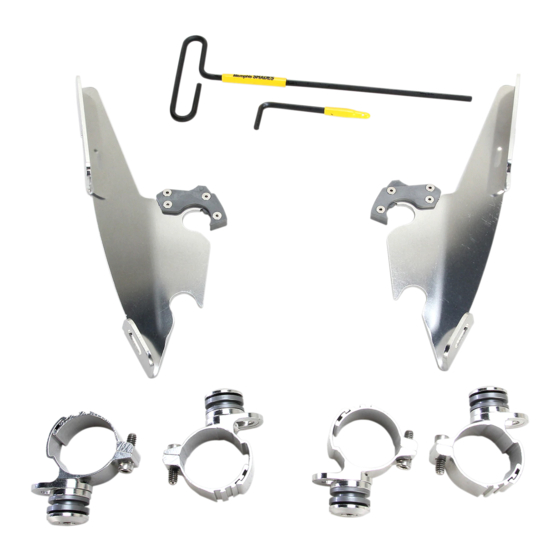

Description
I2001 Mounting Instructions
M1607EC Clutch side mounting plate
M1608EC Throttle side mounting plate
S1215EC Small detachable clamp assembly
M310 Short arm allen wrench, 3/16
M314 T-Handle Wrench, 3/16
Memphis Shades warrants all product components, metal
and plastic, against defects in materials and workmanship
for 24 months.
For Parts and Warranty Help, Contact:
Memphis Shades, Inc.
P.O. Box 429
Rossville, TN 38066
(901) 853 0293
Visit us on the web at www.memphisshades.com or you
can also reach us by email:
customerservice@memphisshades.com




