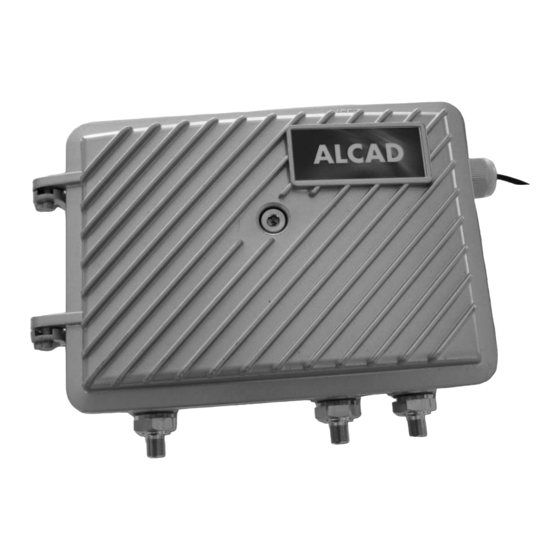

- Page 1 AMPLIFICADORES DE DISTRIBUCIÓN DISTRIBUTION AMPLIFIERS AMPLIFICATEURS DISTRBUTION SERIE 911 SERIES...
- Page 2 CÓDIGO-CODE-CODE 9110000 MODELO-MODEL-MODELE DAM-504 Número de salidas Number of outputs Band Nombre de sorties Número de entradas Number of inputs Nombre de entrées Rango de frecuencia Band RETURN Frequency range 5-42 54-862 Gamme de frequences Ganancia Gain ± 1,0 ± 1,0 Gain Regulación de ganancia Gain adjust...
- Page 3 XMOD -60 dB: 42 equal carriers, EN 50083-3 Data published in compliance with the definitions and measurement methods of the following standards: EN 50083-3, EN 50083-4 and EN 50083-5 CÓMO ALIMENTAR EL AMPLIFICADOR HOW TO FEED THE AMPLIFIER COMMENT ALIMENTER L'AMPLIFICATEUR 230 V ALCAD 6 mm...
- Page 4 CÓMO ABRIR EL AMPLIFICADOR HOW TO OPEN THE MPLIFICATOR COMMENT OUVRIR L'AMPLIFICATEUR ALCAD Open Close DESCRIPCIÓN DEL AMPLIFICADOR AMPLIFIER DESCRIPTION DESCRIPTION DE L'AMPLIFICATEUR Forward Path Gain Control (-20 dB) -20 dB -20 dB Return Path 0 dB 0 dB Gain Control...
- Page 6 ESQUEMAS TÍPICOS CONNECTION DIAGRAMS SCHEMAS DE CONNEXION DAM-504 54 - 862 MHz...
- Page 7 ESQUEMAS TÍPICOS CONNECTION DIAGRAMS SCHEMAS DE CONNEXION 54 - 862 MHz DAM-504 100 dBµV 68 dBµV 68 dBµV 25 m BC-100 FP-226 68 dBµV 68 dBµV FP-223 66 dBµV 66 dBµV FP-223 64 dBµV 64 dBµV FP-223 68dBµV 68dBµV FP-217 66 dBµV 66 dBµV FP-217...
-
Page 8: Declaration Of Conformity
Pol. Ind. Arreche-Ugalde, 1 Apdo. 455 20305 IRUN (Guipúzcoa) SPAIN declares that the product Model Number(s): DAM-504 Product Description: 911 Series: DISTRIBUTION AMPLIFIERS Product Option(s): INCLUDING ALL OPTIONS Is in conformity with: Safety: EN 60728-11:2005 EN 60065:2002 EMC: EN 50083-2:2006...
