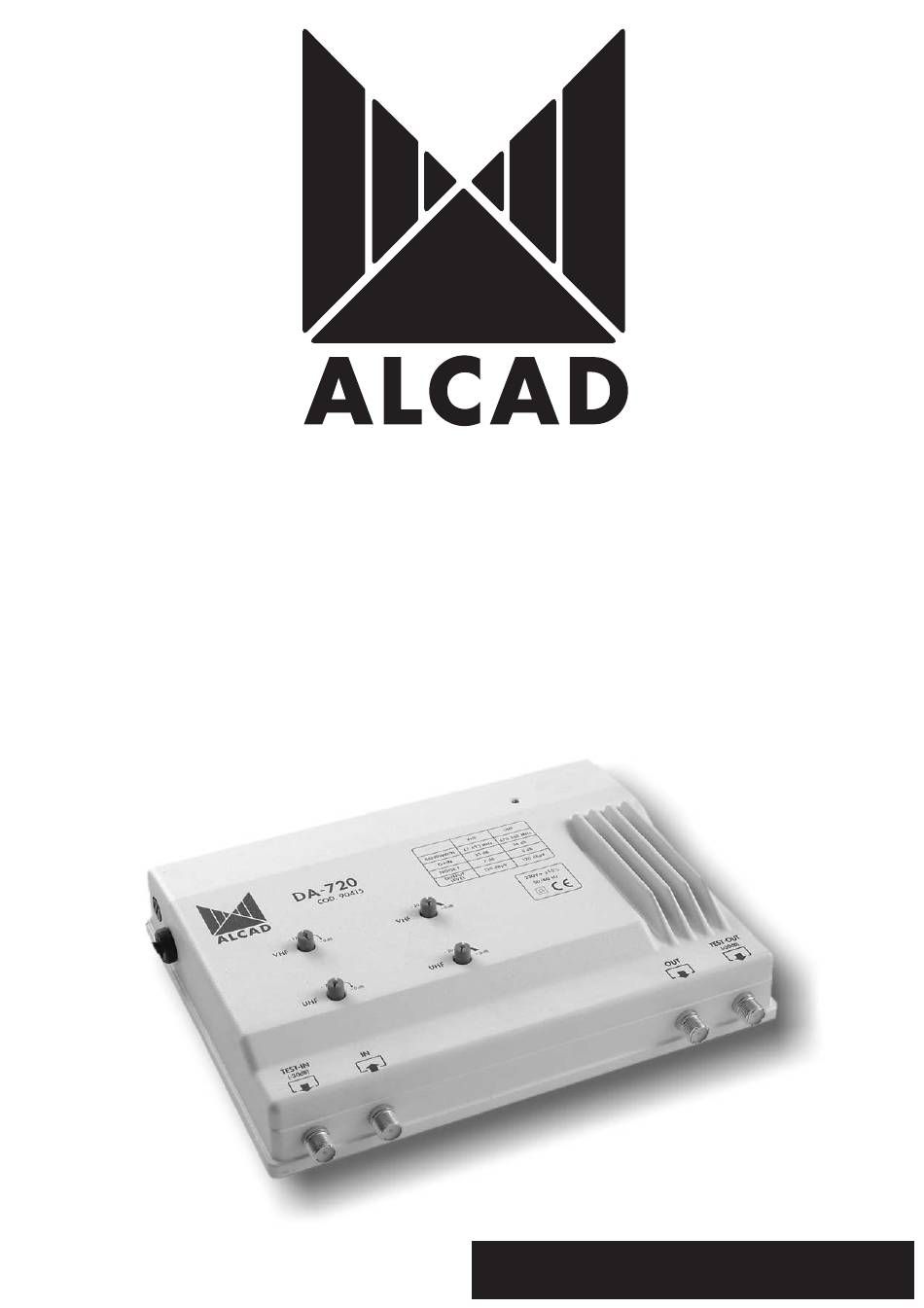

- Page 1 AMPLIFICADORES MULTIBANDA MULTIBAND AMPLIFIERS AMPLIFICATEURS MULTIBANDE SERIE 904 SERIES...
- Page 2 CÓDIGO-CODE-CODE 9040015 MODELO-MODEL-MODELE DA-720 Rango de frecuencia Band Frequency range 47-422 470-862 Gamme de frequences Ganancia Gain ± 1,0 ± 1,0 Gain Regulación de ganancia Gain adjust Réglage de gain Ecualización fija Fixed equalization Pente fixe Margen de ecualización Adjustable equalization range Plage de reglage de pente Test de salida Output test point...
- Page 3 CÓDIGO-CODE-CODE 9040015 MODELO-MODEL-MODELE DA-720 Fusible Fuse Fusible (Type F) Tensión de red ±15% 50/60 Hz Mains voltage Tension du secteur Temperatura de funcionamiento °C -20 ... +65 Operating temperature Température de fonctionnement Índice de protección IP 50D Protection index Indice de protection...
- Page 4 AMPLIFICADOR DA-720 AMPLIFIER DA-720 AMPLIFICATEUR DA-720 Indicador de funcionamiento Indicator of operation Voyant de fonctionnement Fusible Ecualizador VHF Conexión de tierra Regulador de ganacia VHF Fuse VHF tilt control Grounding VHF gain regulator Fusible Réglage de pente VHF Réglage de gain VHF Prise de terre Ecualizador UHF UHF tilt control...
- Page 5 CÓMO ALIMENTAR EL AMPLIFICADOR HOW TO FEED THE AMPLIFIER COMMENT ALIMENTER L'AMPLIFICATEUR 6 mm Fusible Fuse Fusible 230 V SUSTITUCIÓN DEL FUSIBLE FUSE REPLACEMENT REPLACEMENT DU FUSIBLE...
-
Page 8: Declaration Of Conformity
ALCAD, S.A. Manufacturer's Name: Manufacturer's Address: Pol. Ind. Arreche-Ugalde, 1 Apdo. 455 20305 IRÚN (Guipúzcoa) SPAIN declares that the product Product Name: 904 Series: AMPLIFIERS Model Number(s): DA-720 Product Option(s): INCLUDING ALL OPTIONS is in conformity with: Safety: EN 50083-1:1993 EMC:...
