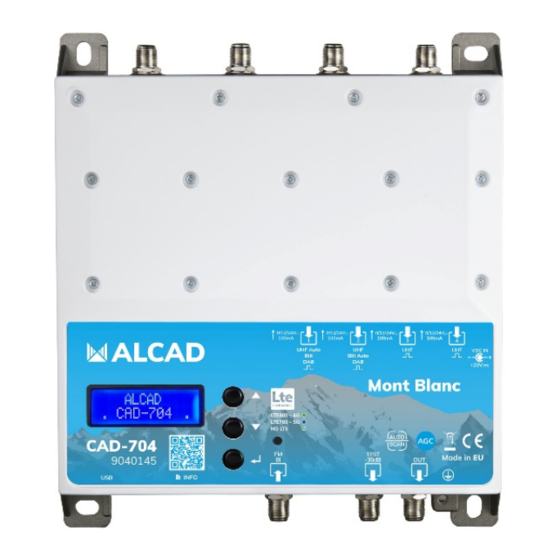

CAD-704
Mont Blanc
DIGITAL PROGRAMMABLE AMPLIFIER
■ 5 Inputs
■ Auto-scan function
■ Selectable LTE 700 5G / 800 4G SAW filters
■ Up to 64 high selectivity filters with ACG
■ Converts up to 32 single channels
24 Digits LCD display
■
Zamak die casting chassis
■
High selectivity programmable compact headend to
digitally filter, convert and equalize DVB-T/T2
channels.
The built-in high output amplifier allows the use in
small or medium buildings installation.
CODE
MODEL
Number of inputs
Frequency range
Programmable filters
Number of channels per filters
Input level
Input attenuator
AGC range
Selectivity
Interstage attenuator
Gain
Max output level
Noise figure
Return loss in/out
Test output
USB connector
Output voltage
Mains voltage
2 x UHF/BIII/DAB
MHz UHF (470..694/790/862 MHz)
BIII/DAB (170..240 MHz)
FM/BI (40..108 MHz)
dBµV
BIII/DAB 40..110
dB
dB
dB
dB
dB
dBµV 120 (IM3 DIN 45004B -60 dBc)
dB
dB
USB 1.0/2.0 Type B
12V / 24V 100 mA
230 VAC +/-20% 16W Max.
- 13 -
9040145
CAD-704
2 x UHF
1 x FM/BI
32
1..2
UHF 40..110
FM/BI 35..90
UHF 0..-20
BIII/DAB 0..-20
FM/BI 0..-20
40
35 @1MHz
0..-20
UHF 40
BIII/DAB 50
FM/BI 40
<6
>12
1 (-30dB)
