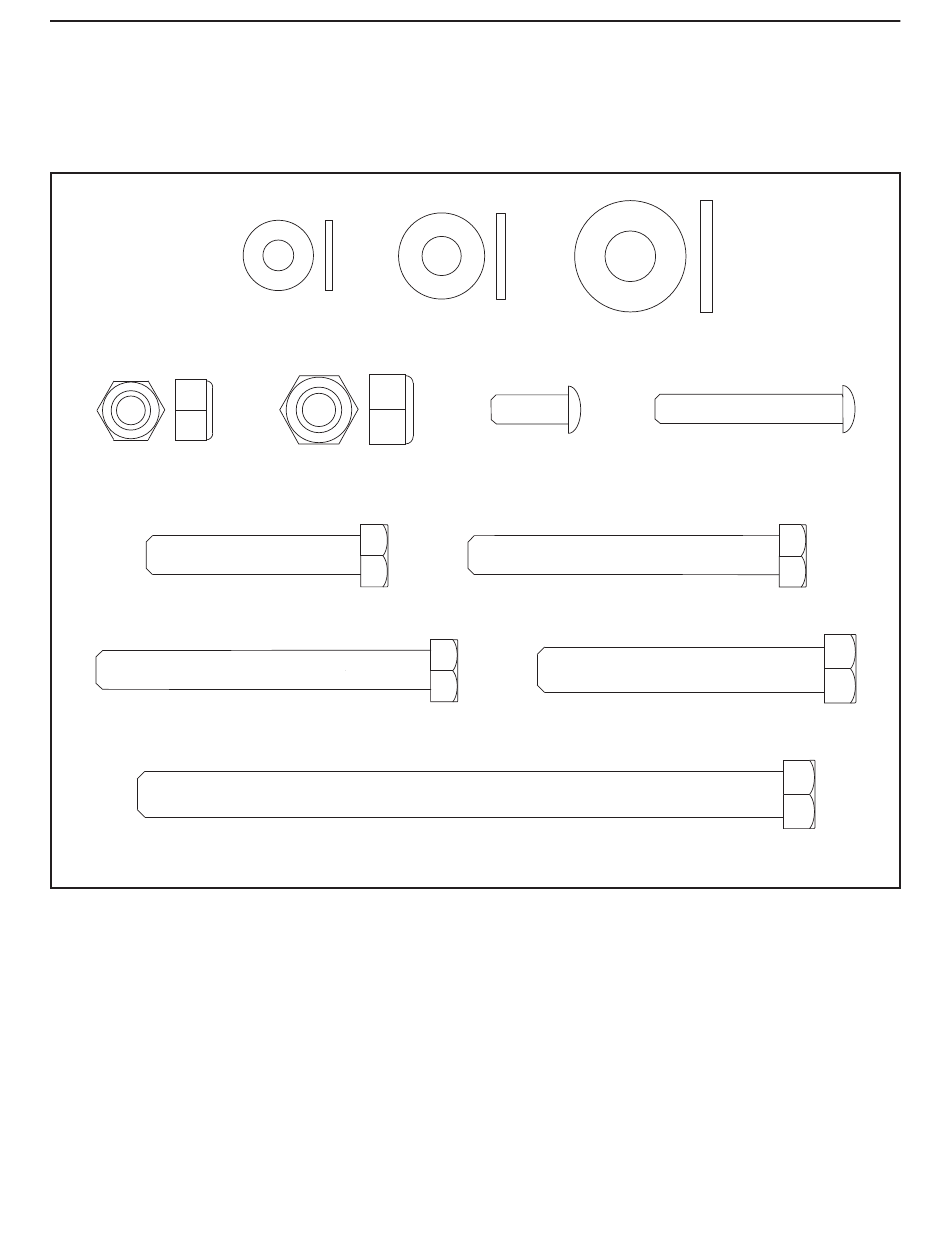

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST near the end of this manual. IMPORTANT: If you cannot find a
part in the hardware kit, check to see whether it has been preassembled. Extra hardware may be included.
M6 Washer M8 Washer
M10 Washer
(22)–4 (29)–2
(30)–2
M6 x 16mm M6 x 40mm Screw
M8 Locknut M10 Locknut Screw (24)–4 (32)–4
(34)–8
(31)–2
M8 x 45mm Bolt (28)–2 M8 x 65mm Bolt (33)–4
M8 x 70mm Bolt (27)–2 M10 x 60mm Bolt (25)–1
M10 x 135mm Bolt (23)–1
6
