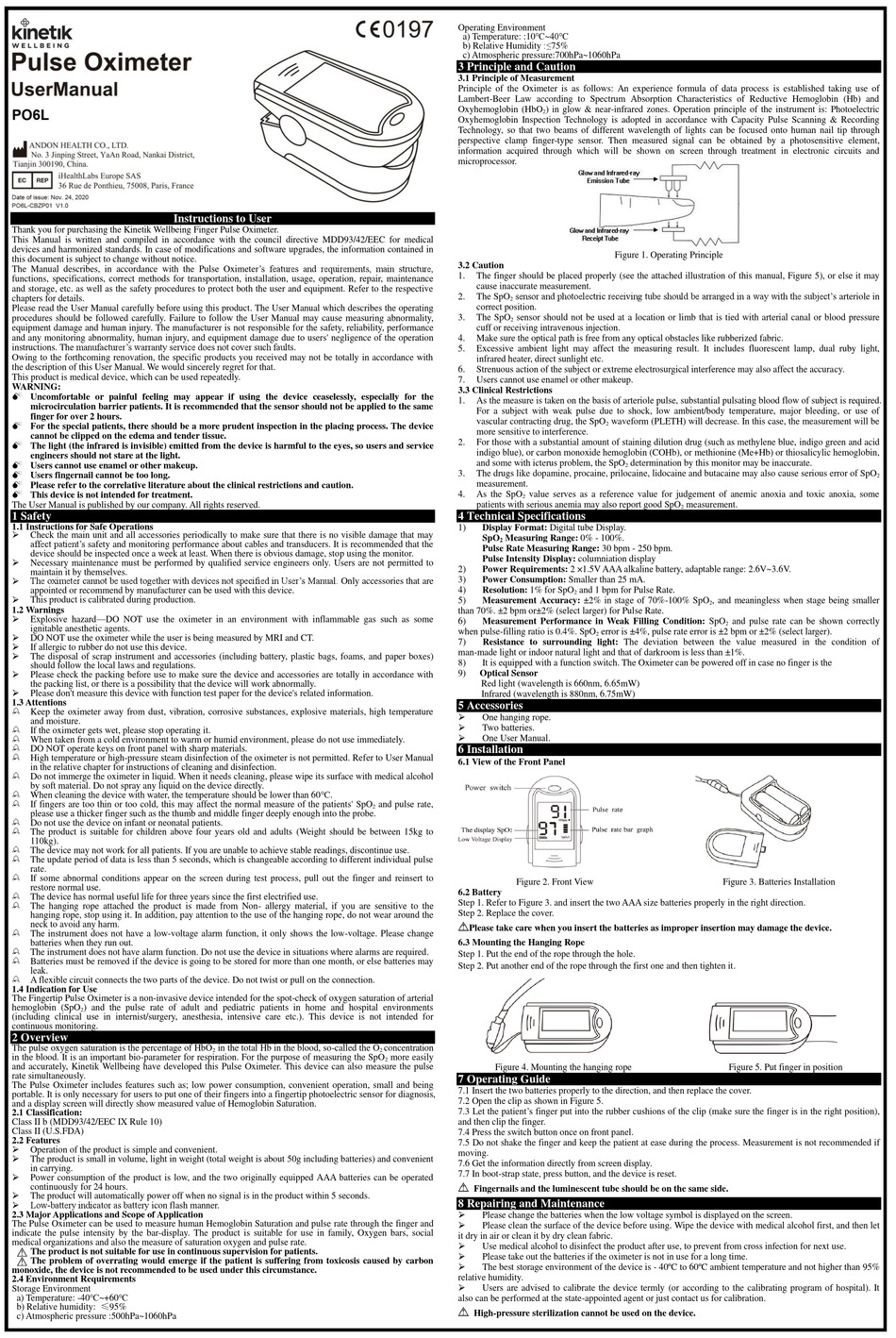

Kinetik PO6L User Manual

Instructions to User
Thank you for purchasing the Kinetik Wellbeing Finger Pulse Oximeter.
This Manual is written and compiled in accordance with the council directive MDD93/42/EEC for medical
devices and harmonized standards. In case of modifications and software upgrades, the information contained in
this document is subject to change without notice.
The Manual describes, in accordance with the Pulse Oximeter's features and requirements, main structure,
functions, specifications, correct methods for transportation, installation, usage, operation, repair, maintenance
and storage, etc. as well as the safety procedures to protect both the user and equipment. Refer to the respective
chapters for details.
Please read the User Manual carefully before using this product. The User Manual which describes the operating
procedures should be followed carefully. Failure to follow the User Manual may cause measuring abnormality,
equipment damage and human injury. The manufacturer is not responsible for the safety, reliability, performance
and any monitoring abnormality, human injury, and equipment damage due to users' negligence of the operation
instructions. The manufacturer's warranty service does not cover such faults.
Owing to the forthcoming renovation, the specific products you received may not be totally in accordance with
the description of this User Manual. We would sincerely regret for that.
This product is medical device, which can be used repeatedly.
WARNING:
 Uncomfortable or painful feeling may appear if using the device ceaselessly, especially for the
microcirculation barrier patients. It is recommended that the sensor should not be applied to the same
finger for over 2 hours.
 For the special patients, there should be a more prudent inspection in the placing process. The device
cannot be clipped on the edema and tender tissue.
 The light (the infrared is invisible) emitted from the device is harmful to the eyes, so users and service
engineers should not stare at the light.
 Users cannot use enamel or other makeup.
 Users fingernail cannot be too long.
 Please refer to the correlative literature about the clinical restrictions and caution.
 This device is not intended for treatment.
The User Manual is published by our company. All rights reserved.
1 Safety
1.1 Instructions for Safe Operations
➢
Check the main unit and all accessories periodically to make sure that there is no visible damage that may
affect patient's safety and monitoring performance about cables and transducers. It is recommended that the
device should be inspected once a week at least. When there is obvious damage, stop using the monitor.
➢
Necessary maintenance must be performed by qualified service engineers only. Users are not permitted to
maintain it by themselves.
➢ The oximeter cannot be used together with devices not specified in User's Manual. Only accessories that are
appointed or recommend by manufacturer can be used with this device.
➢
This product is calibrated during production.
1.2 Warnings
➢
Explosive hazard—DO NOT use the oximeter in an environment with inflammable gas such as some
ignitable anesthetic agents.
➢
DO NOT use the oximeter while the user is being measured by MRI and CT.
➢
If allergic to rubber do not use this device.
➢
The disposal of scrap instrument and accessories (including battery, plastic bags, foams, and paper boxes)
should follow the local laws and regulations.
➢
Please check the packing before use to make sure the device and accessories are totally in accordance with
the packing list, or there is a possibility that the device will work abnormally.
➢
Please don't measure this device with function test paper for the device's related information.
1.3 Attentions

Keep the oximeter away from dust, vibration, corrosive substances, explosive materials, high temperature
and moisture.

If the oximeter gets wet, please stop operating it.

When taken from a cold environment to warm or humid environment, please do not use immediately.

DO NOT operate keys on front panel with sharp materials.

High temperature or high-pressure steam disinfection of the oximeter is not permitted. Refer to User Manual
in the relative chapter for instructions of cleaning and disinfection.

Do not immerge the oximeter in liquid. When it needs cleaning, please wipe its surface with medical alcohol
by soft material. Do not spray any liquid on the device directly.

When cleaning the device with water, the temperature should be lower than 60℃.

If fingers are too thin or too cold, this may affect the normal measure of the patients' SpO
please use a thicker finger such as the thumb and middle finger deeply enough into the probe.

Do not use the device on infant or neonatal patients.

The product is suitable for children above four years old and adults (Weight should be between 15kg to
110kg).

The device may not work for all patients. If you are unable to achieve stable readings, discontinue use.

The update period of data is less than 5 seconds, which is changeable according to different individual pulse
rate.

If some abnormal conditions appear on the screen during test process, pull out the finger and reinsert to
restore normal use.

The device has normal useful life for three years since the first electrified use.

The hanging rope attached the product is made from Non- allergy material, if you are sensitive to the
hanging rope, stop using it. In addition, pay attention to the use of the hanging rope, do not wear around the
neck to avoid any harm.

The instrument does not have a low-voltage alarm function, it only shows the low-voltage. Please change
batteries when they run out.

The instrument does not have alarm function. Do not use the device in situations where alarms are required.

Batteries must be removed if the device is going to be stored for more than one month, or else batteries may
leak.

A flexible circuit connects the two parts of the device. Do not twist or pull on the connection.
1.4 Indication for Use
The Fingertip Pulse Oximeter is a non-invasive device intended for the spot-check of oxygen saturation of arterial
hemoglobin (SpO ) and the pulse rate of adult and pediatric patients in home and hospital environments
2
(including clinical use in internist/surgery, anesthesia, intensive care etc.). This device is not intended for
continuous monitoring.
2 Overview
The pulse oxygen saturation is the percentage of HbO
in the blood. It is an important bio-parameter for respiration. For the purpose of measuring the SpO
and accurately, Kinetik Wellbeing have developed this Pulse Oximeter. This device can also measure the pulse
rate simultaneously.
The Pulse Oximeter includes features such as; low power consumption, convenient operation, small and being
portable. It is only necessary for users to put one of their fingers into a fingertip photoelectric sensor for diagnosis,
and a display screen will directly show measured value of Hemoglobin Saturation.
2.1 Classification:
Class II b (MDD93/42/EEC IX Rule 10)
Class II (U.S.FDA)
2.2 Features
➢
Operation of the product is simple and convenient.
➢
The product is small in volume, light in weight (total weight is about 50g including batteries) and convenient
in carrying.
➢
Power consumption of the product is low, and the two originally equipped AAA batteries can be operated
continuously for 24 hours.
➢
The product will automatically power off when no signal is in the product within 5 seconds.
➢ Low‐battery indicator as battery icon flash manner.
2.3 Major Applications and Scope of Application
The Pulse Oximeter can be used to measure human Hemoglobin Saturation and pulse rate through the finger and
indicate the pulse intensity by the bar-display. The product is suitable for use in family, Oxygen bars, social
medical organizations and also the measure of saturation oxygen and pulse rate.
The product is not suitable for use in continuous supervision for patients.
The problem of overrating would emerge if the patient is suffering from toxicosis caused by carbon
monoxide, the device is not recommended to be used under this circumstance.
2.4 Environment Requirements
Storage Environment
a) Temperature: -40℃~+60℃
b) Relative humidity: ≤95%
c) Atmospheric pressure :500hPa~1060hPa
and pulse rate,
2
in the total Hb in the blood, so-called the O
2 2
Operating Environment
a) Temperature: :10℃~40℃
b) Relative Humidity :≤75%
c) Atmospheric pressure:700hPa~1060hPa
3 Principle and Caution
3.1 Principle of Measurement
Principle of the Oximeter is as follows: An experience formula of data process is established taking use of
Lambert-Beer Law according to Spectrum Absorption Characteristics of Reductive Hemoglobin (Hb) and
Oxyhemoglobin (HbO ) in glow & near-infrared zones. Operation principle of the instrument is: Photoelectric
2
Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording
Technology, so that two beams of different wavelength of lights can be focused onto human nail tip through
perspective clamp finger-type sensor. Then measured signal can be obtained by a photosensitive element,
information acquired through which will be shown on screen through treatment in electronic circuits and
microprocessor.
3.2 Caution
1. The finger should be placed properly (see the attached illustration of this manual, Figure 5), or else it may
cause inaccurate measurement.
sensor and photoelectric receiving tube should be arranged in a way with the subject's arteriole in
2. The SpO
2
correct position.
3. The SpO sensor should not be used at a location or limb that is tied with arterial canal or blood pressure
2
cuff or receiving intravenous injection.
4. Make sure the optical path is free from any optical obstacles like rubberized fabric.
5. Excessive ambient light may affect the measuring result. It includes fluorescent lamp, dual ruby light,
infrared heater, direct sunlight etc.
6. Strenuous action of the subject or extreme electrosurgical interference may also affect the accuracy.
7. Users cannot use enamel or other makeup.
3.3 Clinical Restrictions
1. As the measure is taken on the basis of arteriole pulse, substantial pulsating blood flow of subject is required.
For a subject with weak pulse due to shock, low ambient/body temperature, major bleeding, or use of
vascular contracting drug, the SpO
more sensitive to interference.
2. For those with a substantial amount of staining dilution drug (such as methylene blue, indigo green and acid
indigo blue), or carbon monoxide hemoglobin (COHb), or methionine (Me+Hb) or thiosalicylic hemoglobin,
and some with icterus problem, the SpO
3. The drugs like dopamine, procaine, prilocaine, lidocaine and butacaine may also cause serious error of SpO
measurement.
4. As the SpO value serves as a reference value for judgement of anemic anoxia and toxic anoxia, some
2
patients with serious anemia may also report good SpO
4 Technical Specifications
1) Display Format: Digital tube Display.
SpO Measuring Range: 0% - 100%.
2
Pulse Rate Measuring Range: 30 bpm - 250 bpm.
Pulse Intensity Display: columniation display
2) Power Requirements: 2 ×1.5V AAA alkaline battery, adaptable range: 2.6V~3.6V.
3) Power Consumption: Smaller than 25 mA.
4) Resolution: 1% for SpO
5) Measurement Accuracy: ±2% in stage of 70%-100% SpO
than 70%. ±2 bpm or±2% (select larger) for Pulse Rate.
6) Measurement Performance in Weak Filling Condition: SpO
when pulse-filling ratio is 0.4%. SpO
7) Resistance to surrounding light: The deviation between the value measured in the condition of
man-made light or indoor natural light and that of darkroom is less than ±1%.
8) It is equipped with a function switch. The Oximeter can be powered off in case no finger is the
9) Optical Sensor
Red light (wavelength is 660nm, 6.65mW)
Infrared (wavelength is 880nm, 6.75mW)
5 Accessories
➢
One hanging rope.
➢
Two batteries.
➢
One User Manual.
6 Installation

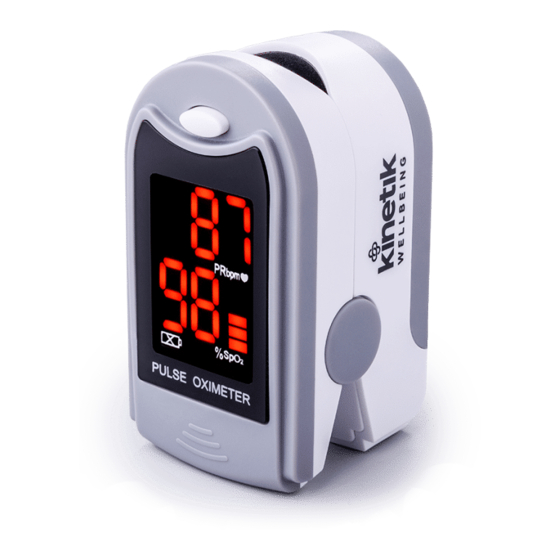

6.1 View of the Front Panel
Figure 2. Front View
6.2 Battery
Step 1. Refer to Figure 3. and insert the two AAA size batteries properly in the right direction.
Step 2. Replace the cover.
Please take care when you insert the batteries as improper insertion may damage the device.
6.3 Mounting the Hanging Rope
Step 1. Put the end of the rope through the hole.
Step 2. Put another end of the rope through the first one and then tighten it.
concentration
more easily
2
Figure 4. Mounting the hanging rope
7 Operating Guide
7.1 Insert the two batteries properly to the direction, and then replace the cover.
7.2 Open the clip as shown in Figure 5.
7.3 Let the patient's finger put into the rubber cushions of the clip (make sure the finger is in the right position),
and then clip the finger.
7.4 Press the switch button once on front panel.
7.5 Do not shake the finger and keep the patient at ease during the process. Measurement is not recommended if
moving.
7.6 Get the information directly from screen display.
7.7 In boot-strap state, press button, and the device is reset.
Fingernails and the luminescent tube should be on the same side.
8 Repairing and Maintenance
➢
Please change the batteries when the low voltage symbol is displayed on the screen.
➢
Please clean the surface of the device before using. Wipe the device with medical alcohol first, and then let
it dry in air or clean it by dry clean fabric.
➢
Use medical alcohol to disinfect the product after use, to prevent from cross infection for next use.
➢
Please take out the batteries if the oximeter is not in use for a long time.
➢
The best storage environment of the device is - 40ºC to 60ºC ambient temperature and not higher than 95%
relative humidity.
➢
Users are advised to calibrate the device termly (or according to the calibrating program of hospital). It
also can be performed at the state-appointed agent or just contact us for calibration.
High-pressure sterilization cannot be used on the device.
Figure 1. Operating Principle
waveform (PLETH) will decrease. In this case, the measurement will be
2
determination by this monitor may be inaccurate.
2
measurement.
2
and 1 bpm for Pulse Rate.
2
, and meaningless when stage being smaller
2
and pulse rate can be shown correctly
2
error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
2
Figure 3. Batteries Installation
Figure 5. Put finger in position
2
