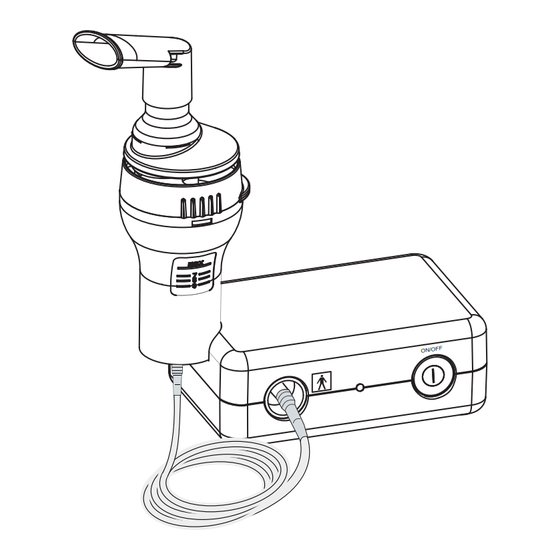

Compressor Nebuliser
Please keep this instruction manual safe for your future use.
Please use only USB 5V/1A which complies with the standard of
IEC 60601-1,which provide 2 MOPP.
Limit use to 15 minutes at a time, and allow a 40 minutes
interval before using the device again.
MODEL No.:NE803
By cmlam at 11:22 am, Sep 26, 2017
Advertisement
Table of Contents
Related Manuals for Kinetik NE803
Summary of Contents for Kinetik NE803
- Page 1 Compressor Nebuliser MODEL No.:NE803 By cmlam at 11:22 am, Sep 26, 2017 Please keep this instruction manual safe for your future use. Please use only USB 5V/1A which complies with the standard of IEC 60601-1,which provide 2 MOPP. Limit use to 15 minutes at a time, and allow a 40 minutes...
-
Page 2: Table Of Contents
Table of Contents （Before using the device） 1. Introduction ................1 2. Indications for Use ..............1 3. Symbols ..................2 4. Important safety notes ............3-6 5. Know your device ...............7-8 6. Guide to using the Compressor Nebuliser ......9 （Operating instructions） 7. Preparing the nebuliser for use ........10-13 8. -
Page 3: Introduction
1. Introduction Thank you for purchasing our Compressor Nebuliser. The Device includes a nebuliser kit, an air tube, an instruction manual, a compressor with an air pump that generates compressed air, a mouthpiece and masks (adult & child). The nebuliser kit converts the liquid medication into a fine aerosol which is inhaled by the patient via a mouthpiece for the treatment of respiratory disorders. -
Page 4: Symbols
3. Symbols Use SYMBOLS USED IN THIS INSTRUCTION MANUAL Indicates a potentially hazardous situation which, if not WARNING avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or CAUTION patient or damage to the equipment or other property. -
Page 5: Important Safety Notes
4. Important Safety Notes Read all the information in the instruction manual and any other literature included in the box before using the device. To ensure the correct use of the device, basic safety notes should always be followed including the precautions listed below: Warning: Indicate a potentially hazardous situation which, if not avoided, could result in serious injury. - Page 6 4. Important Safety Notes -1 (Risk of electrical shock) • The compressor nebuliser is not waterproof. Do not spill water, or other liquids on these parts. If liquid does spill on these parts, immediately unplug the USB and wipe off the liquid with gauze or other absorbent material.
- Page 7 4. Important Safety Notes -2 • Do not carry or leave the nebuliser kit while the medication tank contains medication. • Do not leave the device unattended with infants or persons that cannot express their consent. • Do not subject the device or the parts to any strong shocks such as dropping the device on the floor.
- Page 8 4. Important Safety Notes -3 • When disinfecting the parts by boiling, make sure that the container does not get to such a temperature that the water evaporates. Otherwise it may result in fire. General Safety Precautions: • Inspect the device and the parts before using them each time, and check that there are no problems.
-
Page 9: Know Your Device
5. Know your device Nebuliser Kit Holder Air Tube Connector USB Power Connector Indicator Light Power Switch Air Filter Cover *Air Filter Inside Battery Cover • (PVC 100cm) - Page 10 5. Know your device -1 Nebuliser Kit x1 Inhalation Top Nozzle Vaporiser Head Medication Tank Air Tube Connector Accessories Adult Mask (PVC) Child Mask (PVC) Mouthpiece x1 Spare Air Filters x 5 Air Tube (PVC, 100cm) (Option ) Material of attachment Air tube/Mask: Air Filter: Polyester...
-
Page 11: Guide To Using The Compressor Nebuliser
6. Guide to using the compressor nebuliser Preparing the Nebuliser for Use Note: Clean and disinfect the nebuliser kit and the applicable inhalation attachments before using the device for the first time, or if it has not been used for more than one week. Taking Medication Notes: •... -
Page 12: Preparing The Nebuliser For Use
7. Preparing the Nebuliser for Use Warning: Clean and disinfect the nebuliser kit, mouthpiece or mask before using them for the first time after purchase, if the device has not been used for a long period of time, or if more than one person uses the same device. For directions on cleaning and disinfecting the parts of the device please refer to ‘Cleaning and Disinfecting’... - Page 13 7. Preparing the Nebuliser for Use -1 4. Attach the cap onto the inhalation top External USB Power Supply...
- Page 14 7. Preparing the Nebuliser for Use -2 Attach the desired inhalation attachment, as described below. Attach the mouthpiece to the the cap. Attaching the mask (PVC) Attach the mask to the cap. Attach the air tube. 1) Attach the air tube to the air connector on the compressor. 2) Attach the other end of the air tube to the air tube connector on the medication tank.
- Page 15 7. Preparing the Nebuliser for Use -3 Notes: • Make sure that the air tube is securely attached to the compressor (main unit) and the nebuliser kit and does not come loose. Twist the air tube plug slightly when inserting it into the connectors to avoid the tube disconnecting during use.
-
Page 16: Taking Medication
8. Taking Medication Hold the nebuliser kit as indicated on the right. Caution: Do not tilt the nebuliser kit so that it is at an angle of over 45°. Medication may flow into the mouth. Press the power switch The compressor starts and nebulisation starts. - Page 17 8. Taking Medication -1 3. Inhale medication according to your doctor’s and/or health care adviser’s instructions. Using the mouthpiece Put the mouthpiece in your mouth and inhale the medication breathing normally. Exhale as normal through the mouthpiece. Using the mask (PVC) Attach the mask so that it covers your nose and mouth and inhale the medication.
- Page 18 8. Taking Medication -2 4. When the treatment is complete, turn the power off. Check that there is no condensation or moisture in the air tube and remove the batteries and/or unplug the USB power cable. External USB Power Supply Warning : Condensation may occur in the air tube.
-
Page 19: Cleaning And Daily Disinfecting
9. Cleaning and Daily Disinfecting Cleaning Follow the cleaning instructions after each use to prevent from resulting in damage, inefficient nebulisation or infection. Warning: Thoroughly rinse the nebuliser kit and the mask or mouthpiece with clean hot tap water after each use. Disinfect the parts of the nebuliser kit and applicable inhalation attachments after the last treatment of the day. -
Page 20: Disinfecting The Nebulising Parts
9. Cleaning and Daily Disinfecting -1 7. If the compressor is dirty, clean it with a soft cloth moistened with water or mild detergent. Caution: The compressor is not waterproof. 8. If the outside of the air tube is dirty, clean it with a soft cloth moistened with water or mild detergent. - Page 21 9. Cleaning and Daily Disinfecting -2 Handling the Vaporiser Head The vaporiser head is used to vaporise medication. Be sure to observe the following precautions when handling it. Caution: • Always wash the vaporiser head after each use. Failure to do so could cause blockages and a deterioration in your condition due to a failure to vaporise medication effectively.
-
Page 22: Maintenance And Storage
10. Maintenance and Storage To keep the device in the best condition and protect the device from damage, follow these directions: Caution : • Do not leave the device unattended with infants or persons that cannot express consent. • Do not subject the device or the parts to any strong shocks such as dropping the device on the floor. -
Page 23: Changing The Air Filter
Do not boil the air filter cover. Remove the air filter cover, wash it, and make sure that it is dry and reattached correctly. • Please contact Kinetik Wellbeing for additional air filters or the parts supplied with the device if damaged or missing. -
Page 24: Troubleshooting
12. Troubleshooting Check the following if the device fails during operation. You can also refer to the pages of this manual for complete instructions. Cause Symptom Remedy Put AA batteries in the battery Are there batteries in the battery Nothing happens compartment or connect a USB compartment or is a USB power supply when the power... -
Page 25: Technical Data
13. Technical Data Name: Compressor Nebuliser Model: NE803 Type: Compressor Nebuliser Power Source: 1.5Vx4AA Size Alkaline batteries or USB 5V 1A Barometric Pressure: 700hPa-1060hPa Operating Temperature/ +5°C to +40°C/15% to 90% RH Humidity: Storage Temperature/ -25°C to +35°C at a relative humidity up to 90%, Humidity: non-condensing;... - Page 26 13. Technical Data -1 Technical data for the compressor with the Nebuliser kit: Appropriate Medication 2ml minimum - 10ml maximum Quantities: Medication Capacity: 10 ml maximum Particle Size: **MMAD Approx. 3.9μm MMAD = Mass Median Aerodynamic Diameter Nebulisation Rate: Approx. 0.3 ml/min without mouthpiece (by weight loss) Noise level: less than 58 dB at 1M distance...
-
Page 27: Emc Table
14. EMC Table Guidance and manufacture’s declaration Guidance and manufacture’s declaration – electromagnetic emission The Compressor Nebuliser is intended for use in the electromagnetic environment specified below. The customer or the user of the Compressor Nebuliser should assure that it is used in such an environment. Electromagnetic environment –... - Page 28 14. EMC Table -1 Guidance and manufacture’s declaration – electromagnetic immunity The Compressor Nebuliser is intended for use in the electromagnetic environment specified below. The customer or the user of Compressor Nebuliser should assure that it is used in such an environment. IEC 60601 test Complianc Immunity test Electromagnetic environment - guidance...
- Page 29 14. EMC Table -2 Recommended separation distances between portable and mobile RF communications equipment and the Compressor Nebuliser. The compressor nebuliser is intended for use in an electromagnetic environment in which Radiated RF disturbances are controlled. The customer or the user of the Compressor Nebuliser can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Compressor Nebuliser as recommended below, according to the maximum output power...
-
Page 30: Optional Parts And Accessories
15. Optional parts and accessories compressor Nebuliser Kit Air Tube (PVC, 100cm) Mouthpiece Child Mask (PVC) Adult Mask (PVC) (Option ) Instruction Manual Air Filters (x 5) - Page 31 ShangHai International Holding Corp. GmbH (Europe) Address: Eiffestrasse 80, 20537 Hamburg Germany Shenzhen Kingyield Technology Co., Ltd. Section C1-2, FuHai Industrial Zone, Fuhai Road FuYong Town, Bao’an District, 518103 ShenZhen City, GuangDong, PEOPLE’S REPUBLIC OF CHINA KINETIK NE803 UK IB 20170926...
