Summary of Contents for Kinetik TD2 Series

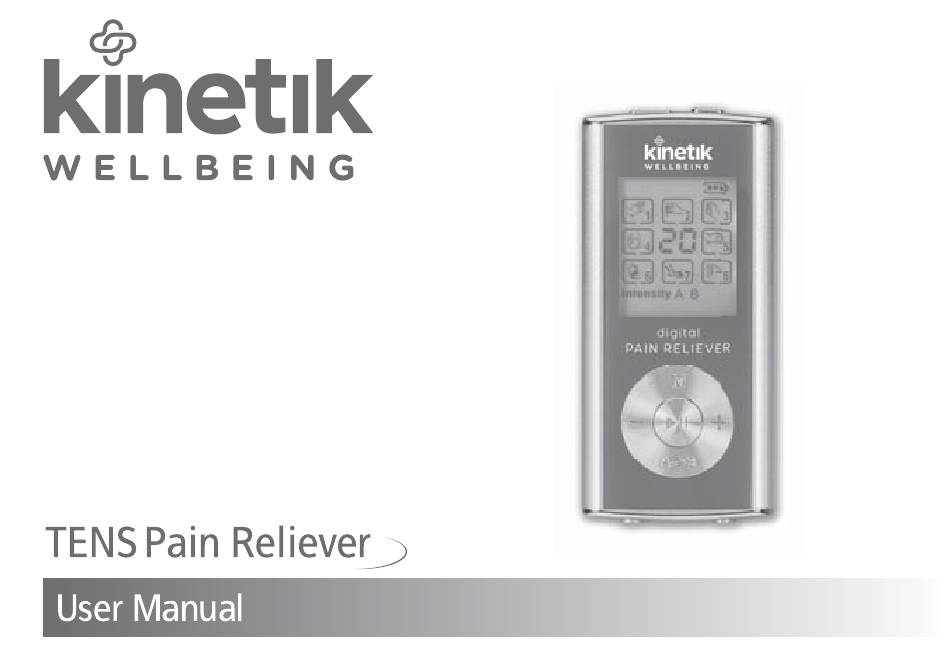

  • Page 1 TD2 Series...

  • Page 2: Table Of Contents

    Content Introduction Parts Features General Warnings and Safety 5 - 7 Using your TENS Pain Reliever 8 - 11 Troubleshooting 12 - 13 Positions for use Mode Selection Specification Compatibility EMC 17 - 24 Maintenance and Cautions Explanation of Symbols on Unit Explanation of Symbols on Unit...

  • Page 3: Introduction

    Introduction Thank you for buying your Kinetik TENS Pain Reliever, a safe drug free way to relieve every day and long term pain. Multiple stimulation and intensity settings allow you to customise your treatment for different parts of the body and levels of pain.

  • Page 4: Parts

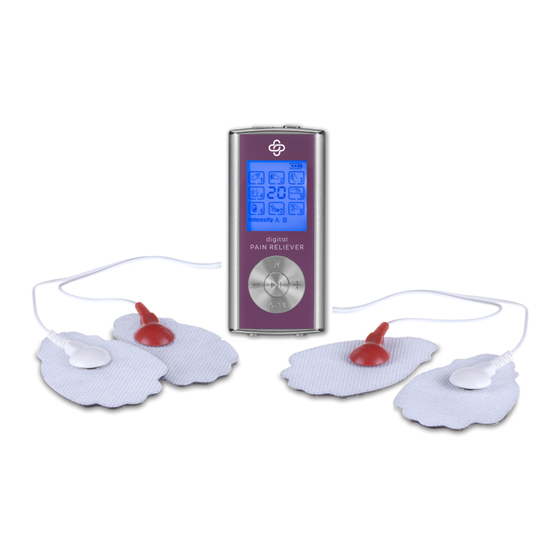

    Parts About TENS Pain Reliever MAIN UNIT PARTS 1. USB port USB Cable 2. ON - OFF switch 3. Display 4. Mode selector 5. Play/Pause button 6. Channel selection Output Cable x 2 7. Channel outlets Main Unit Gel Pad x 4...

  • Page 5: Features

    Features • 2 output channels • Each output channel can be adjusted independently • 8 mode settings to provide different pain relief and massage effects • 18 output intensities to suit different parts of the body and pain • Touch control buttons and backlit LCD display making the unit user friendly •...

  • Page 6: General Warnings And Safety

    General Warnings and Safety Before you start: Please carefully read and understand the following warnings and cautions to ensure the safe and correct use of this device and to prevent injury. • Make sure the device is fully charged. • Connect the cable to the gel pads and then connect to the unit (see page 8 for more details). •...
  • Page 7 General Warnings and Safety Gel Pad not suitable for use on: • Head • Face • Throat • Back of neck • Heart • Chest area • Eyes • Oral cavity • Sexual organs • Spine • Bones • Scarred areas following surgery for at least 10 months after the operation •...
  • Page 8 General Warnings and Safety Be aware of the following. (1) to consult with your physician before using this device. The simulation with the device may: i. cause lethal rhythm disturbances to the heart in susceptible individuals, and, ii. disrupt the healing process after a recent surgical procedure; (2) that the device is not effective for pain of central origin, including headache;...

  • Page 9: Using Your Tens Pain Reliever

    Using your TENS Pain Reliever Charging Ensure the device is fully charged before use. Charging takes approximately 1.5 hours and is indicated by the flashing battery icon on the display. Once complete, remove the charging and store safely. IMPORTANT NOTE: Never use the device for while it is being charged. CHANNEL A CHANNEL B...
  • Page 10 Using your TENS Pain Reliever 1. Make sure the unit is switched off. 2. Attach the gel pads to the output cables as above and insert into the respective sockets, channel A and channel B. 3. Attach the gel pads to the area of pain. Please revert to the ‘Positions for use’ (Gel Pad Positioning) section on page 14.
  • Page 11 Using your TENS Pain Reliever Gel Pads Each gel pad is pre-fixed with a connector stud and protected by a transparent film. Connect the gel pads to the output cables and remove the transparent film before placing on the skin. Press firmly to ensure good adhesion.
  • Page 12 Using your TENS Pain Reliever Recommended practices: 1. Duration of 20 minute for each body area. 2. Frequency of 1-2 times per day per area. 3. Be sure the treatment site is clean of dirt and body lotion. 4. The lifespan of the electrode pads will vary depending on the use frequency and care taken. Keeping electrode pads clean and stored on the gel pad holder after use will extend their lifespan.

  • Page 13: Troubleshooting

    Troubleshooting Problem Check points Possible solution Is the device fully charged? Charge the device using the supplied The unit does not switch on USB cable. No output stimulus/sensation Is the cable properly connected? Firmly connect the cable. Have you removed the transparent Remove the protective film.
  • Page 14 Troubleshooting Problem Check points Possible solution Output current stops during therapy Have the gel pads come off the skin? Turn off the power and stick the gel pads firmly to the skin. Are the cables disconnected? Turn off the power and connect the cables. Does the battery need recharging? Recharge device using the supplied USB cable.

  • Page 15: Positions For Use

    Positions for use Legs and Feet Lower back Upper back NOTE: DO NOT PLACE ON SPINE For other areas of pain, place the gel pads around the area of pain 4 - 6 inches apart (approximately).

  • Page 16: Mode Selection

    Mode Selection Remark: TENS is for fast pain relief,EMS is for muscle training. Detail of 8 modes for TD2 MODE TYPE Description FREQUENCY Kneading 68.9HZ +/-15% MODE 1 TENS Acupuncture 10.6-63.8HZ +/-15% MODE 2 TENS and EMS Beating 1.18HZ +/-15% MODE 3 TENS 100HZ +/-15% (On for 10 sec and...

  • Page 17: Specification

    Specification • Power Source: DC: 3.7V • Frequency: 500Hz • Output current: 84mA@500Ω • Output voltage: 42V@500Ω • Pulse width: 100µS • Timer: 10-60 minutes • Strength level adjustment: 18 levels • Charger: 100-220V, 50/60Hz, and 10mA (input); DC5V, 300mA (output) •...

  • Page 18: Compatibility Emc

    Compatibility EMC 1) This product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided, and this unit can be affected by portable and mobile RF communications equipment. 2) Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit.
  • Page 19 Compatibility EMC Guidance and manufacture’s declaration – electromagnetic emission The TD2 is intended for use in the electromagnetic environment specified below. The customer of the user of the TD2 should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment –...
  • Page 20 Compatibility EMC Guidance and manufacture’s declaration – electromagnetic immunity The TD2 is intended for use in the electromagnetic environment specified below. The customer or the user of the TD2 should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance...
  • Page 21 Compatibility EMC Guidance and manufacture’s declaration – electromagnetic immunity The TD2 is intended for use in the electromagnetic environment specified below. The customer or the user of the TD2 should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance...
  • Page 22 Compatibility EMC Guidance and manufacture’s declaration – electromagnetic immunity The TD2 is intended for use in the electromagnetic environment specified below. The customer or the user of the TD2 should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance...
  • Page 23 Compatibility EMC Guidance and manufacture’s declaration – electromagnetic immunity The TD2 is intended for use in the electromagnetic environment specified below. The customer or the user of the TD2 should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance...
  • Page 24 Compatibility EMC Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the TD2 is used exceeds the applicable RF compliance level above, the TD2 should be observed to verify normal operation.
  • Page 25 Compatibility EMC Recommended separation distances between portable and mobile RF communications equipment and the TD2. The TD2 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the TD2 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the TD2 as recommended below, according to the maximum output power of the communications equipment.

  • Page 26: Maintenance And Cautions

    Maintenance and Cautions CAUTIONS REGARDING SAFETY • Do not immerse device in water or any liquid. Do not drop device or throw it from a height. • After using the device, please remove output plug from output socket and re-attach the pads to the protective transparent film.

  • Page 27: Explanation Of Symbols On Unit

    Explanation of Symbols on Unit Read the instructions (actual symbol colours are white on a blue background). This symbol indicates that this product is a Type BF device. Symbol for "Environment Protection" – Waste electrical products should not be disposed of with household waste.
  • Page 28 Harvard Medical Devices Ltd. Unit 1002, 10th Floor, Railway Plaza, 39 Chatham Road South, Tsimshatsui, Kowloon, Hong Kong. Kinetik Medical Devices Ltd. Medicity Nottingham, D6 Building West, Thane Road, Nottingham. NG90 6BH 0197 Made in PRC Kinetik TD2 UK IB 20171030...
