Bakers Pride Cyclone COC-E1 Specifications

Cyclone
BAKERS
PRIDE

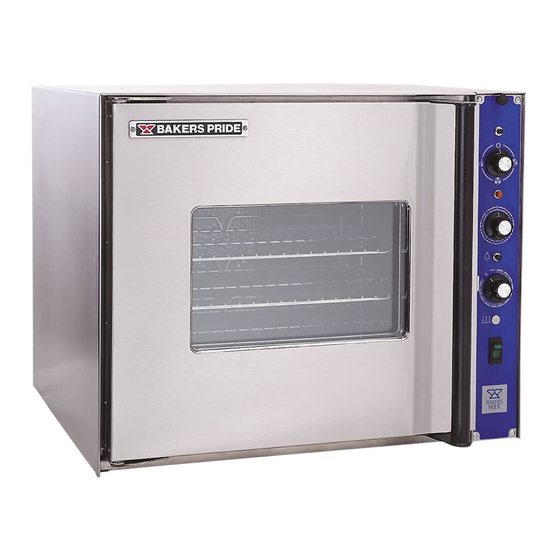

Model COC-E1
shown with left hand hinge & right side controls
SPECIFICATIONS
Half-size electric, forced air, single and double stack convection
type oven. Standard specifications include 9.5 KW per cavity and a
patented two speed fan-within-a-fan enhanced air flow system
powered by an energy efficient 1/4 HP two-speed fan motor.
Door interlock switch automatically turns the fan and heating
elements off when the oven door is open. A manual rotary switch
will turn the fan on when the door is open for quick cool-down.
The 60-minute timer has a continuous ring with manual shut-off.
An indicator light glows when the heating elements are on.
The oven interior measures 23" wide (584mm) by 20" high
(508mm) by 15 5/8" deep (397mm). The cooking chamber is
porcelain enamel over heavy gauge steel with removable 11-
position rack guides with 1 5/8" spacing (41mm) and 5 heavy-duty
adjustable chrome-plated racks.
The oven exterior measures 31" wide (787mm) by 27 1/2" deep
(699mm) by 25" high (635mm). Front, top and sides and trim are
constructed with stainless steel.
A single fully insulated stainless steel door with thermal pane
window opens a full 180° and features a unique 23" opening wide
mouth design for easy viewing and sideways loading of 1/2-size
sheet pans.
Ovens may be ordered with left hand hinge and right side controls
or right hand hinge and left side controls.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS 914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
www.bakerspride.com
S E R I E S
Job ____________
ELECTRIC CONVECTION OVENS
Model COC-E1 Single
q
Model COC-E2 Double
q
STANDARD FEATURES
Energy efficient 9.5 KW per oven direct forced air heat
q
system
208v or 220v-240v, 60hz or 50hz
q
Electronic temperature control
q
Double-pane thermal glass door window
q
Oven lights
q
60-Minute continuous ring timer with manual shut-off
q
150°F (65°C) to 550°F (285°C) temperature range
q
1/4 HP air-cooled two-speed fan motor
q
Cool down fan mode
q
Elements-on and temperature-ready indicator lights
q
Porcelain enamel oven interior
q
11-Position removable rack guides with 1 5/8" spacing
q
5 Heavy-duty, positive-stop, chrome-plated wire racks
q
Stainless steel stainless front, top & sides
q
Stainless steel, fully insulated hinged door
q
Front mounted control panel for easy service access
q
1/8" Welded angle iron frame construction
q
Heavy-duty industrial grade insulation in top, sides, back and
q
doors
One year limited parts & labor warranty
q
OPTIONS & ACCESSORIES
Steam injection with front panel controls
q
Computerized programmable controls with LED display.
q
Stainless steel stand with or without casters
q
Additional oven racks
q
International voltages, 50hz
q
Solid door
q
Perforated rear panel
q
Stacking kit
q
CERTIFICATIONS
U L
®
®
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
®
