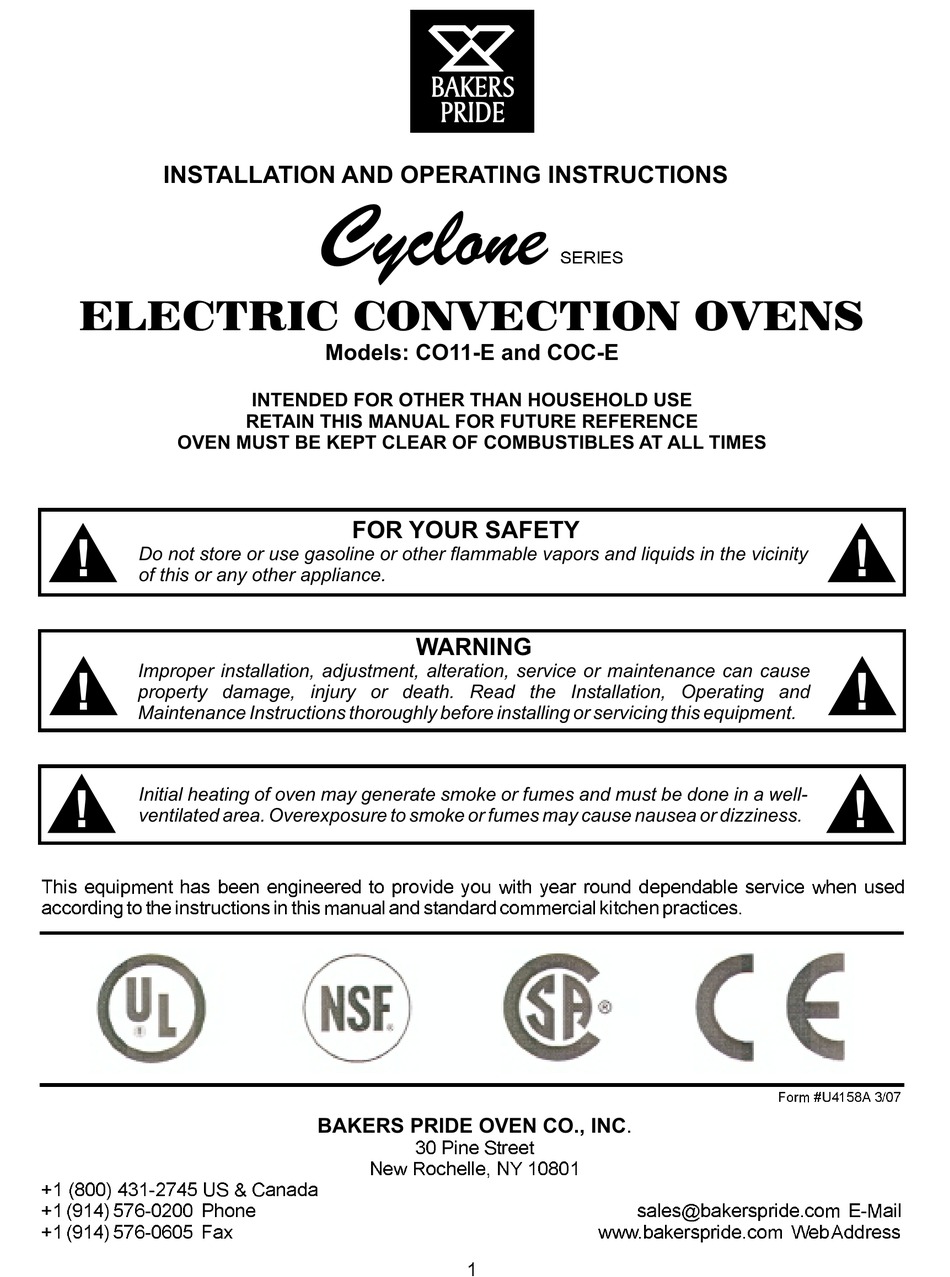

INSTALLATION AND OPERATING INSTRUCTIONS
ELECTRIC CONVECTION OVENS
OVEN MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
!
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
Improper installation, adjustment, alteration, service or maintenance can cause
!
property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.
!
Initial heating of oven may generate smoke or fumes and must be done in a well-
ventilated area. Overexposure to smoke or fumes may cause nausea or dizziness.
This equipment has been engineered to provide you with year round dependable service when used
accordingtotheinstructionsinthismanualandstandardcommercialkitchenpractices.
+1 (800) 431-2745 US & Canada
+1(914)576-0200 Phone
+1(914)576-0605 Fax
Cyclone
Models: CO11-E and COC-E
INTENDED FOR OTHER THAN HOUSEHOLD USE
RETAIN THIS MANUAL FOR FUTURE REFERENCE
FOR YOUR SAFETY
WARNING
BAKERS PRIDE OVEN CO., INC.
30 Pine Street
New Rochelle, NY 10801
BAKERS
PRIDE
5-41-5
www.bakerspride.com WebAddress
1
Form #U4158A 3/07
sales@bakerspride.com E-Mail
!
!
!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bakers Pride Cyclone CO11-E
Summary of Contents for Bakers Pride Cyclone CO11-E
- Page 1 PRIDE INSTALLATION AND OPERATING INSTRUCTIONS Cyclone 5-41-5 ELECTRIC CONVECTION OVENS Models: CO11-E and COC-E INTENDED FOR OTHER THAN HOUSEHOLD USE RETAIN THIS MANUAL FOR FUTURE REFERENCE OVEN MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Table Of Contents
30” legs with mounting hardware (for CO11-E1 oven only) or a setoffour6”legs(forCO11-E2stackedinstallations).LegsforCOC-Earepackedinsidetheoven. LOCATION & MINIMUM CLEARANCES Adequateairspacemustbeprovidedforproperventingofthemotorandthecontrols. The oven should be located no closer than 1” (COC-E) / 2” (CO11-E) on the left side, 1” ontherightsideand1”ontherearfromanycombustibleornon-combustibleconstruction. Keeptheareaaroundyourovenfreeandclearofcombustiblematerials. Provision of adequate air supply to the oven for ventilation is essential. Minimum... -
Page 3: Set-Up & Mounting For Coc-E1
To ensure proper operation, the unit must be level. Each leg can be adjusted separatelytoachieveproperleveling. Installtheshelfsupportsandthewireshelves. SET-UP / MOUNTING FOR CO11-E Note: Units must be leveled after leg installation. Each leg is individually adjustable. CO11-E1: INSTALLATION / MOUNTING 30” LEGS Afterunpackingtheunit,removelegsandanyothermaterialfrominsidetheoven. -
Page 4: Electrical Connections
Use proper lifting equipment to raise the unit, and while suspended attach the two leftlegsinthesamemanner. CO11-2E: INSTALLATION / MOUNTING 6” LEGS Afterunpackingtheunit,removelegsandanyothermaterialfrominsidetheoven. Tiltthebottomovenontoitsleftsideandattachthetwomountingplatestotheright undersideusing½”boltsandwashersandtightenfirmly.Screwthe6”legsintothe centerholes. Use proper lifting equipment to raise the unit, and while suspended attach the two leftmountingplatesandlegsinthesamemanner. Usetheliftingequipmenttoraisethetopoventotheproperheight,andslideitontop of the bottom oven. -
Page 5: Initial Start Up
CO11-E: POWER SUPPLY Amps Motor - 50hz Motor - 60 hz Model Voltage Phase Line 1 Line 2 Line 3 RPM - Lo RPM - Hi RPM - Lo RPM - Hi CO11-E1 CO11-E1 10.5 30.4 30.4 27.8 1140 1725 10.5... -
Page 6: Steam Injection (Optional)
STEAM INJECTION OPTION The solenoidvalve for steam injectionis mountedbehind the service panel on the right hand side of the unit on COC-E and on the back of the unit on CO11-E. It is pre-wired at the factory. The electronictimerispre-setatthefactory. A ¼” copper tubing with a compression fitting for water connection is provided on the solenoid valve.Besuretocheckforleaksafterinstallation. -
Page 7: Cook & Hold
NOTE: The timer does not control the oven. It is only a reminder that the set time has elapsed. COOK & HOLD ROTARY CONTROL Closetheovendoor(s). Turn selector switch to “High” or “Low” position. The green indicator light near the selectorswitchwillbeilluminated. Turnthethermostatknobtothedesiredcookingtemperature. -
Page 8: Cleaning
CLEANING Always clean equipment thoroughly before first use. Clean unit daily. WARNING: T o avoid any injury, turn the power switch off at the fuse disconnect switch/circuit breaker or unplug the unit from the power source and allow to cool completely before performing any maintenance or cleaning. -
Page 9: Servicing
SKETCH “C” - CLEANING THE BLOWER WHEEL Blower Wheel Set Screw (2) Wheel Puller Bolt 3/8” Hex Motor SERVICING The power supply to the unit must be disconnected prior to service. Most of the service to this unit can be performed from the front and/or the control panel side. For proper service, access to the control panel side of the unit is required. -
Page 10: 208-240V North America
5. WIRING DIAGRAM - COC-E & CO11-E OVEN SERIES- W/LIGHTS DWG. 1040-70A 8/11/98 CIRCUIT BREAKER 6 WHT SELECTOR AMBER SWITCH ROBERTSHAW PILOT LIGHT THERMOSTAT (THERMOSTAT) GC20-3006 A6 WHT TERMINAL 3 PHASE C1 BLK BLOCK 250V OOOX 3 WIRE 2 SPEED... -
Page 11: Wiring Diagrams
WIRING DIAGRAM - STAR CONN ECTION - COC-E & CO11-E DWG. 1040-71B 8/98 CIRCUIT BREAKER 6 BRN 16 BRN SELECTOR AMBER SWITCH PILOT LIGHT 2 SPEED (THERMOSTAT) TERMINAL A6 BRN 3 PHASE C1 BLU 250V BLOCK OOOX ROBERTSHAW 4 WIRE...
