- Page 1 TECHNICAL-OPERATING DOCUMENTATION Bidirectional unit with heat recovery PRANA-150 ERP LITE PRANA-200G ERP LITE PRANA-200C ERP LITE...
-
Page 2: Description Of The Device

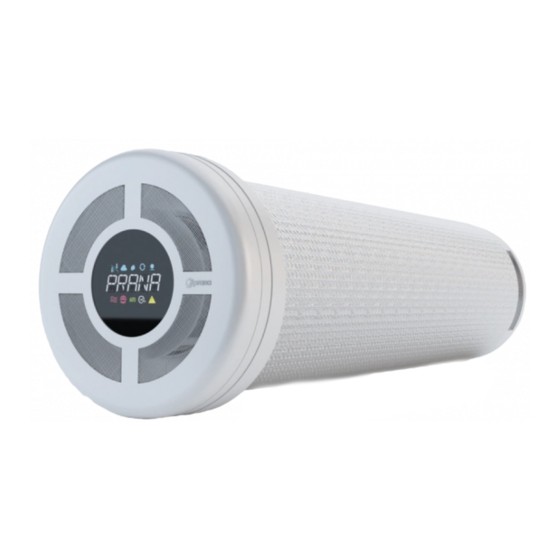

DESCRIPTION OF THE DEVICE PRANA-150 and PRANA-200 belong to the category of innovative and reliable products aimed at creating and maintaining a healthy microclimate in premises of various functional purposes. High energy effi ciency and signifi cant air exchange capabilities make it possible to apply these ventilation units for organizing domestic ventilation. -
Page 3: Technical Data
ADDITIONAL FUNCTIONS “Mini heating up” function For additional comfort in equipping residential premises with ventilation systems PRANA of residential-and-public and semi-industrial series, the function of air “Mini heating up” is provided for. It can be switched on by pressing the “Mini heating up” button on the remote control or in a mobile application (see the remote control manual included in the list of standard equipment). - Page 4 In mode «AUTO» after engine shutdown, «Winter mode» will work for 30 minutes to prevent icing in the system, which may result in reduced effi ciency or condensate drainage complications. Preheating element (additional option) Recuperators that will be used in rooms with excessive humidity in the cold climate are recommended to be equipped with an additional heating element.
-
Page 5: Overall Dimensions
OVERALL DIMENSIONS 500mm 35mm Fig. 3. The overall dimensions and the dimensions of ventilation units “PRANA-150”, “PRANA-200G”, “PRANA-200C”: a) the ventilation grid and air intake in the premises; b) monoblock, side view; c) the ventilation grid and air intake from the outside. - Page 6 INSTALATION Bidirectional ventilation unit with heat recovery “PRANA” is a monoblock ready for use in accordance with design and assembly tasks and conditions. The system is mounted in a hole of the appropriate diameter in the upper part of the wall adjoining the outside, at a distance of no less than 100-150 mm from the ceiling or walls.
- Page 7 (it turns on, regulates and turns off). The PRANA 150 / 200G / 200C recuperators are adapted to an existing electrical network in an automatic mode, without the use of software. This signifi cantly reduces the noise indicators of the equipment and allows ensure the the noise characteristics of the ventilation system declared in the technical passport.
-
Page 8: Operation
- the temperature of the outside air is below -30 ºС. ADAPTATION TO THE ELECTRICAL SUPPLY NETWORK The PRANA 150 / 200G / 200C recuperators are adapted to an existing electrical supply net work automatically, without the use of software. It signifi cantly reduces the noise indicators of the equipment and allows ensure the noise characteristics of the ventilation unit declared in the technical passport. -
Page 9: Maintenance
MAINTENANCE The maintenance consists in periodic (recommended 1-2 times a year) and preventive inspection of surfaces of the fans and the heat exchanger and, if necessary, in cleaning them. The procedure for disassembling / assembling the device for / after cleaning: 1. -
Page 10: Transportation And Storage Rules
WARNING! Before rinsing or wet cleaning of the heat exchanger, make sure that all the electrical components and parts are removed from the heat exchanger (except components “Mini heating up” and “heating the 11. Clean the heat exchanger in adry or, if condensate drainage”. -
Page 11: Scope Of Delivery
SCOPE OF DELIVERY - Ventilation unit. - Technical - operation documentation. - Technical (warranty) card. - Remote control. - Manual for the remote control. - Packing box SAFETY REQUIREMENT All electrical installation works (maintenance) must be carried out only by a qualifi ed specialist with a category of admission to such works.
