TECHNICAL-OPERATING
DOCUMENTATION
Bidirectional unit with heat recovery
PRANA-150
STANDART
(PRANA 150)
PRANA-200G
STANDART
(PRANA 200G)
PRANA-200C
STANDART
(PRANA 200C)
8
PRANA-150
ERP LITE
(PRANA 150+)
PRANA-200G
ERP LITE
(PRANA 200G+)
PRANA-200C
ERP LITE
(PRANA 200C+)
Class II or double insulated electrical appliance
PRANA-150
ERP PRO
(PRANA 150++)
PRANA-200G
ERP PRO
(PRANA 200G++)
PRANA-200C
ERP PRO
(PRANA 200C++)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 150 STANDART and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for prana 150 STANDART

  • Page 1 TECHNICAL-OPERATING DOCUMENTATION Bidirectional unit with heat recovery PRANA-150 PRANA-150 PRANA-150 ERP LITE ERP PRO STANDART (PRANA 150) (PRANA 150+) (PRANA 150++) PRANA-200G PRANA-200G PRANA-200G ERP LITE ERP PRO STANDART (PRANA 200G+) (PRANA 200G++) (PRANA 200G) PRANA-200C PRANA-200C PRANA-200C ERP LITE...
  • Page 2: Description Of The Device

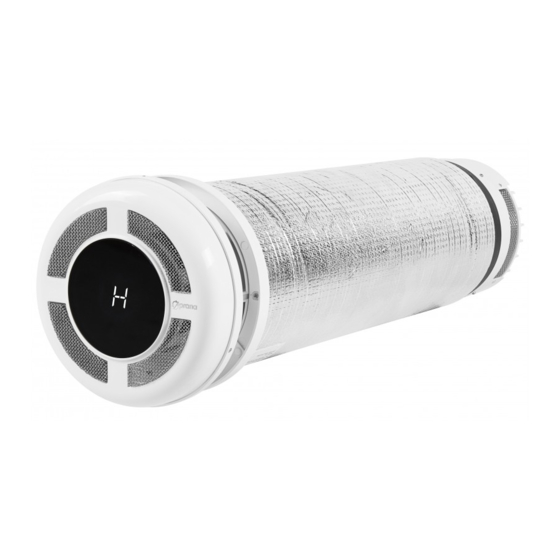

    DESCRIPTION OF THE DEVICE PRANA-150 and PRANA-200G belong to the category of innovative and reliable ducts aimed at creating and maintaining a healthy microclimate in premises of various functional purposes. High energy efficiency and significant air exchange capabilities make it possible to apply these ventilation units for organizing domestic ventilation.
  • Page 3: Technical Data

    ADDITIONAL FUNCTIONS “Mini heating up” function For additional comfort in equipping residential premises with ventilation units PRANA of residential-and-public and semi-industrial series, the function of air “Mini heating up” is provided for. It can be switched on by pressing the “Mini heating up” button on the remote control or in a mobile application (see the remote control manual included in the list of standard equipment).
  • Page 4 In mode «AUTO» after engine shutdown, «Winter mode» will work for 30 minutes to prevent icing in the system, which may result in reduced effi ciency or condensate drainage complications. Preheating element (additional option) Recuperators that will be used in rooms with excessive humidity in the cold climate are recommended to be equipped with an additional heating element.
  • Page 5: Overall Dimensions

    475 mm 45 mm 465 mm 45 mm Fig. 3. The overall dimensions and the dimensions of ventilation units “PRANA-150”, “PRANA-200G”, “PRANA-200C”: a) the ventilation grid and air intake in the premises; b) monoblock, side view; c) the ventilation grid and air intake from the outside.
  • Page 6 INSTALATION Bidirectional ventilation unit with heat recovery “PRANA” is a monoblock ready for use in accordance with design and assembly tasks and conditions. The system is mounted in a hole of the appriate diameter in the upper part of the wall adjoining the outside, at a distance of no less than 100-150 mm from the ceiling or walls.
  • Page 7 The ventilation unit is class II double insulated duct and must not be earthed The PRANA 150 / 200G / 200C recuperators are adapted to connected voltage in an automatic mode, without the use of software. This significantly reduces the noise indicators of the equipment and allows ensure the noise characteristics of the ventilation system declared in the technical passport.
  • Page 8: Operation

    - the temperature of the outside air is below -30 ºС. ADAPTATION TO THE ELECTRICAL SUPPLY NETWORK The PRANA 150 / 200G / 200C recuperators are adapted to an existing electrical supply net work automatically, without the use of software. It signifi cantly reduces the noise indicators of the equipment and allows ensure the noise characteristics of the ventilation unit declared in the technical passport.
  • Page 9: Maintenance

    MAINTENANCE The maintenance consists in periodic (recommended 1-2 times a year) and preventive inspection of surfaces of the fans and the heat exchanger and, if necessary, in cleaning them. The cedure for disassembling / assembling the device for / after cleaning: 1.
  • Page 10: Transportation And Storage Rules

    8. Unscrew the self-tapping screws. 9. Remove the blades from the fan housings 9. Remove the blades from the fan housings Remove the fans on both sides. and clean them in a dry manner. and clean them in a dry manner. WARNING! Before rinsing or wet cleaning of the heat exchanger, make sure that all...
  • Page 11: Scope Of Delivery

    SCOPE OF DELIVERY - Ventilation unit. - Technical - operation documentation. - Technical (warranty) card. - Remote control. - Manual for the remote control. - Packing box SAFETY REQUIREMENT All electrical installation works (maintenance) must be carried out only by a qualifi ed specialist with a category of admission to such works.
