- Page 1 TECHNICAL-OPERATING DOCUMENTATION Infl ow and exhaust ventilation system with heat recovery PRANA-150 PRANA-200G PRANA-200C...
-
Page 2: Description Of The System

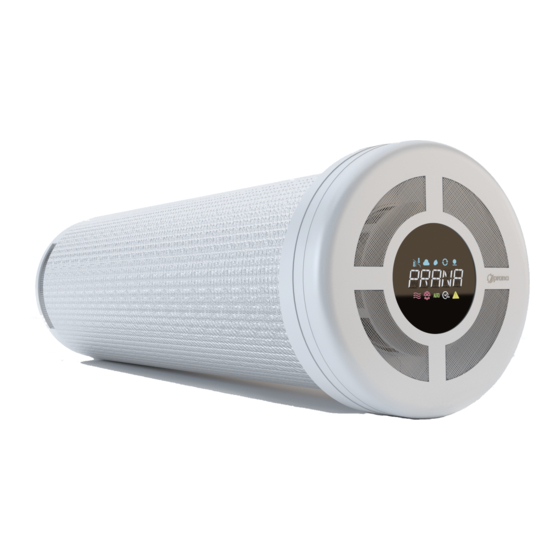

DESCRIPTION OF THE SYSTEM Monoblocks of the centralized anti-current infl ow-exhaust ventilation. PRANA-150 and PRANA-200 belong to the category of innovative and reliable products aimed at creating and maintaining a healthy microclimate in premises of various functional purposes. High energy effi ciency and signifi cant air exchange capabilities make it possible to apply these ventilation systems for organizing domestic ventilation. -
Page 3: Main Technical Characteristics
ADDITIONAL FUNCTIONS The function of “heating with minimally-raised temperature” For additional comfort in equipping residential premises with ventilation systems PRANA of residential-and-public and semi-industrial series, the function of air “heating with minimally- raised temperature” is provided for. It can be switched on by pressing the “On heating with minimally-raised temperature”... - Page 4 In mode «AUTO» after engine shutdown, «Winter mode» will work for 30 minutes to prevent icing in the system, which may result in reduced effi ciency or condensate drainage complications. Preheating element (additional option) Recuperators that will be used in rooms with excessive humidity in the cold climate are recommended to be equipped with an additional heating element.
-
Page 5: Overall Dimensions
OVERALL DIMENSIONS 500mm 35mm Fig. 3. The overall dimensions and the dimensions of ventilation system “PRANA-150”, “PRANA-200G”, “PRANA-200C”: a) the ventilation grid and air intake in the premises; b) monoblock, side view; c) the ventilation grid and air intake from the outside. - Page 6 The system is mounted in a hole of the appropriate diameter in the upper part of the wall adjoining the outside, at a distance of no less than 100-150 mm from the ceiling or walls. The through hole should be a slope of 3-5 degrees towards the outside. The operating module of the ventilation system is mounted in the hole using a seal (Fig.
- Page 7 (it turns on, regulates and turns off). The PRANA 150 / 200G / 200C recuperators are adapted to an existing electrical network in an automatic mode, without the use of software. This signifi cantly reduces the noise indicators of the equipment and allows ensure the the noise characteristics of the ventilation system declared in the technical passport.
-
Page 8: Operation
- the temperature of the outside air is below -30 ºС. ADAPTATION TO THE ELECTRICAL SUPPLY NETWORK The PRANA 150 / 200G / 200C recuperators are adapted to an existing electrical supply net work automatically, without the use of software. It signifi cantly reduces the noise indicators of the equipment and allows ensure the noise characteristics of the ventilation system declared in the technical passport. -
Page 9: Maintenance
MAINTENANCE The maintenance consists in periodic (recommended 1-2 times a year) and preventive inspection of surfaces of the fans and the heat exchanger and, if necessary, in cleaning them. The procedure for disassembling / assembling the device for / after cleaning: 1. -
Page 10: Transportation And Storage Rules
9. Unscrew the self-tapping screws. 9. Unscrew the self-tapping screws. 10. Remove the blades from the fan 10. Remove the blades from the fan Remove the fans on both sides. Remove the fans on both sides. housings and clean them in a dry manner. housings and clean them in a dry manner. -
Page 11: Scope Of Delivery
SCOPE OF DELIVERY - Ventilation system. - Technical passport for the system. - Technical (warranty) card. - Remote control. - Manual for the remote control. - Packing box SAFETY REQUIREMENT All electrical installation works (maintenance) must be carried out only by a qualifi ed specialist with a category of admission to such works.
