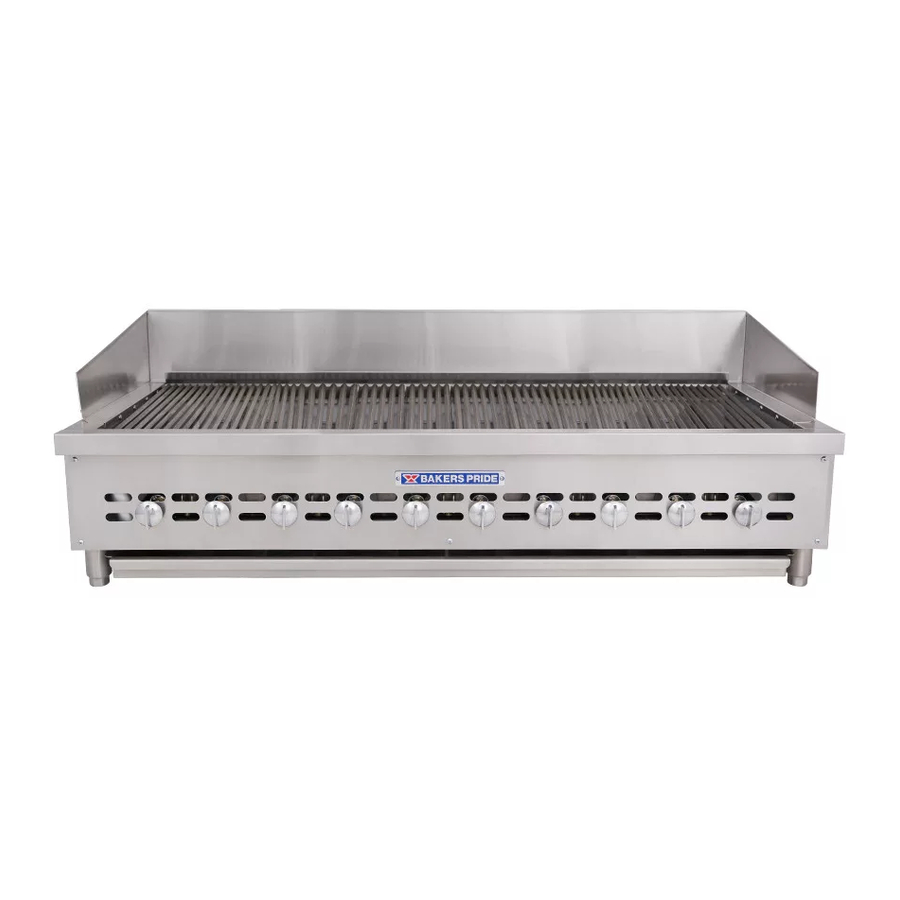

Bakers Pride Dante XXE-10 Specifications

DANTE
HIGH PERFORMANCE
BAKERS
COUNTERTOP
PRIDE
RADIANT
CHAR BROILERS
Model XXE-4
with optional stainless steel splash guard
SPECIFICATIONS
High performance Countertop gas radiant char broiler with low
profile design is only 15 7/8" (403mm) to broiling surface making
the XXE broiler ideal for use on refrigerated cabinets while a 24"
deep broiling surface provides the largest broiling area and
production capacity in its class.
Exterior is all stainless steel with unique air blanket for ventilation
and cooler outer temperatures. Front grease trough, slide out
stainless steel water pan/grease drawer and 4" (102mm) chrome
plated adjustable legs are standard. Interior combustion chamber
is fabricated of 11 gauge HRS and hand welded to form a single
unitized body.
The XXE models feature 24" long, extra high performance 20,000
BTU/HR, independently controlled center feed clog-proof, high
efficiency burners located every 4 7/8" (124mm) for maximum
heat. Flame failure safety pilots are standard.
14 Gauge, 300-series stainless steel radiant heat deflectors are
placed directly above each burner for even heat transfer to the
broiling surface, while cast iron radiants are optional. Additional
stainless steel heat deflectors are located between each burner
for higher temperatures and uniform heat.
Standard top grates are cast iron with channels to direct grease
to front trough. Grates are 24" (610mm) long with 3/4" (19mm)
rib spacing, while several grate types are optional and may be
mixed and matched.
Each grate may be manually adjusted in any of three separate
tilting positions.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
BAKERS
PRIDE www.bakerspride.com
S E R I E S
Job ____________
GAS CHAR BROILERS
Model XXE-4
q
Model XXE-6
q
Model XXE-8
q
Model XXE-10
q
Model XXE-12
q
STANDARD FEATURES
20,000 BTU/HR clog-proof, center-feed burners with
q
individually operator controlled valves located every 4 7/8"
Up to 240,000 BTU/HR total per broiler
q
Natural or propane gas ( CE
q
Flame failure safety pilots
q
Adjustable cast iron top grates - floating rod grates or meat
q
grates available no charge
All stainless steel exterior finish
q
Stainless steel slide out grease drawer/water pan and 4" legs
q
Stainless steel radiant heat deflectors above each burner
q
Additional stainless steel heat deflectors located between
q
each burner
3/4" (19mm) NPT rear gas connections and pressure
q
regulators
Heavy plate steel unitized body construction
q
Limited one year parts & labor warranty
q
OPTIONS & ACCESSORIES
Stainless steel front-mounted work deck with or without
q
sauce pan cut-outs
Condiment Rail
q
Richlite front mounted work deck with or without sauce pan
q
cut-outs
Cast iron radiants
q
Stainless steel equipment stand with or without casters
q
Meat grates, fish grates, floating rod grates and/or fajita
q
grates
Gas connector hoses
q
Stainless steel splash guards
q
Removable griddle plates
q
Overhead back shelves
q
Grate lifters
q
CERTIFICATIONS
CERTIFIED
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
G
not available in LP)
®
