3) Lift the CN501 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
HDMI 2 connector CN510

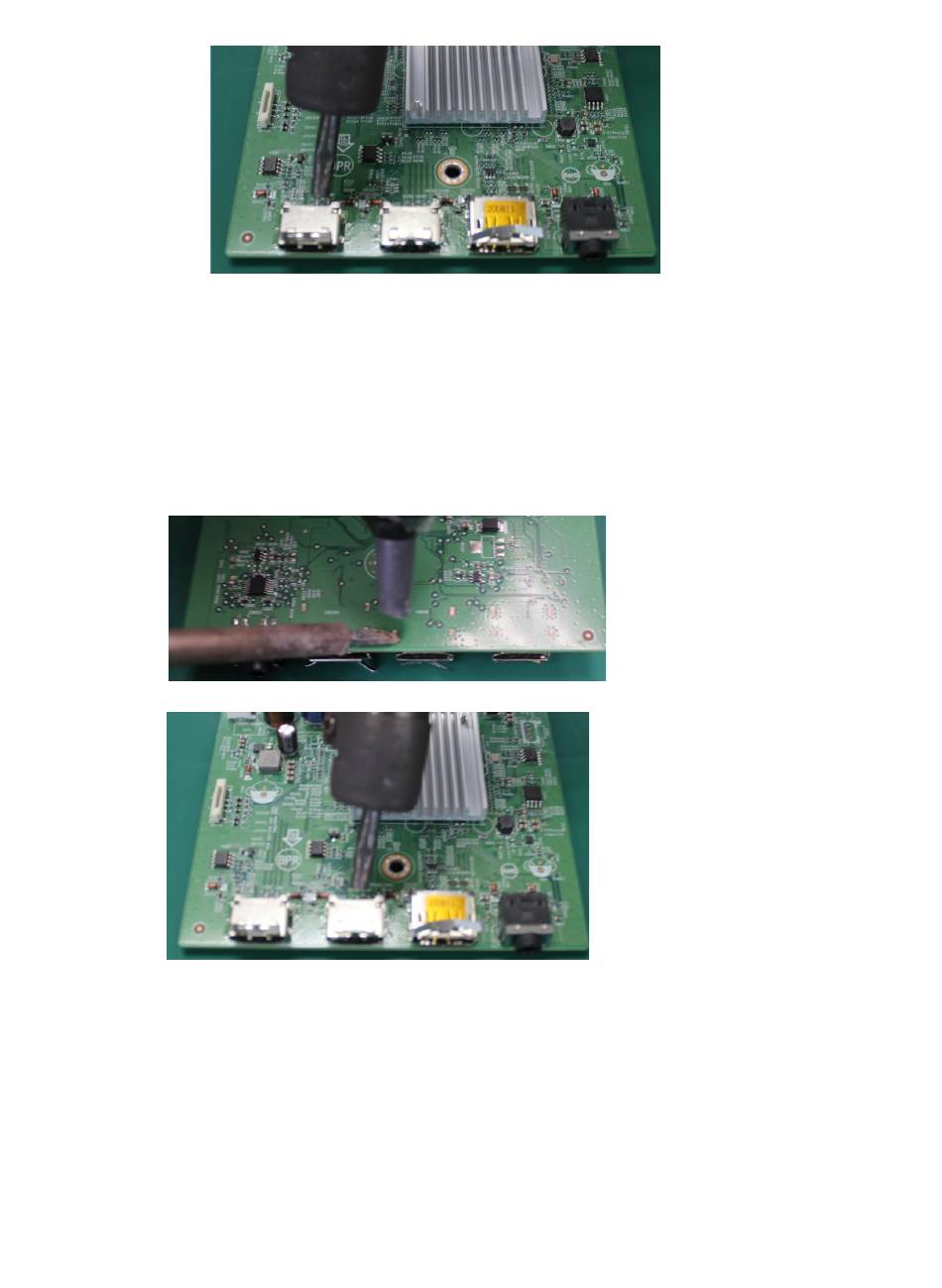

Repair the HDMI connector:
1) Use a soldering iron and a desoldering pump to remove as much solder as possible from the
pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN510 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
