The Quick Panel display presents an overview of the network and equipment status,
and provides navigation to the Administrative functions. The Quick Panel status
information is a snapshot in time and must be refreshed to observe changes in dynamic
parameters such as network connections or signal strength. The Admin Main button on
the Quick Panel will display the main administrative screen as shown in Figure 2. Note
that the main admin screen maintains the Quick Panel's status display, and offers
navigation to all the controller's administrative functions.

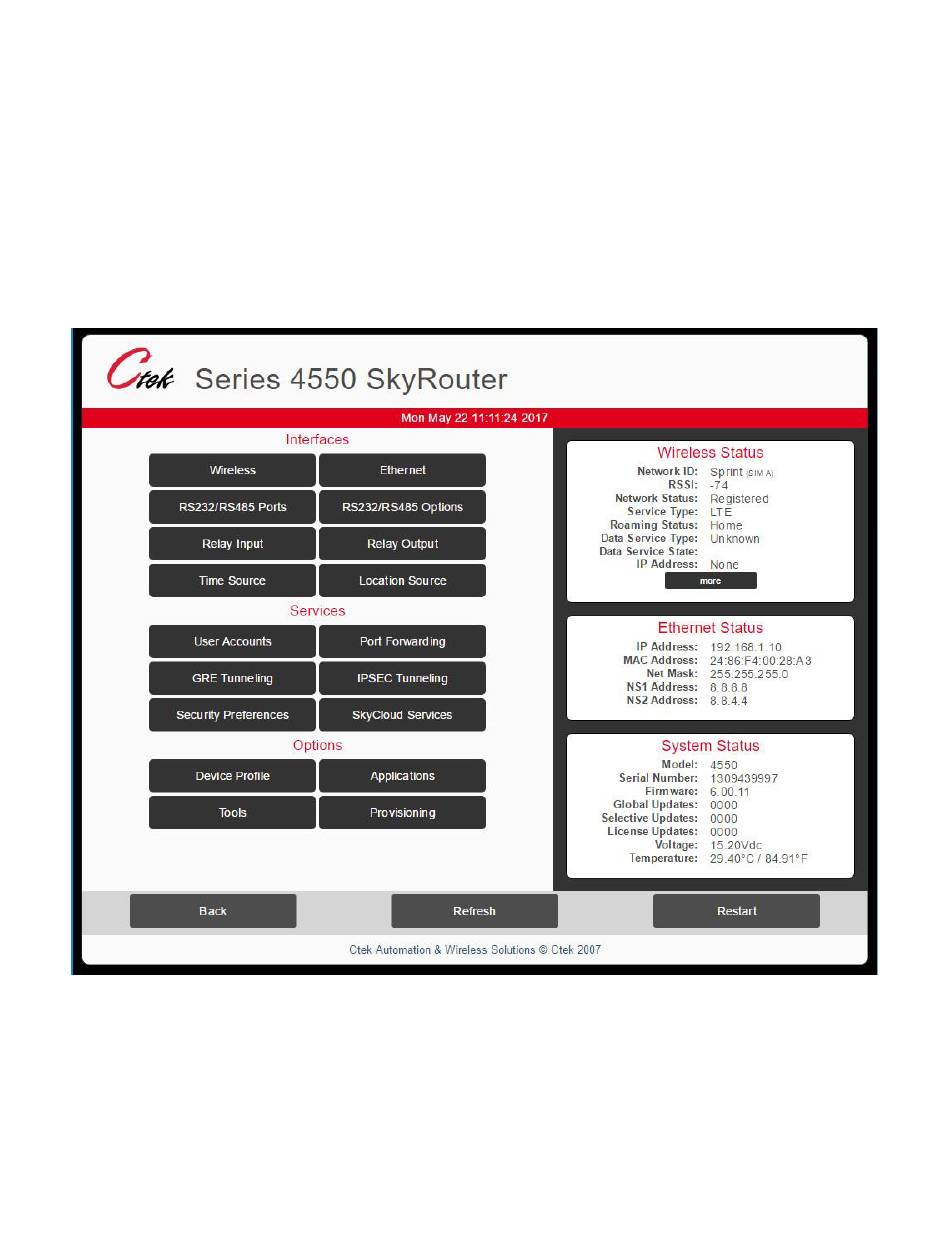

Figure 2
