Administrative Access

All administration and configuration is accomplished using the web UI, which can be
accessed locally throughout the Ethernet connection or over the air through the WAN
connection after the unit is connected to a cellular network.
To use the local interface connect a computer to the controller's Ethernet port using a
standard Ethernet cable. Using a web browser connect to the login page using the
administrative IP address and the default login and password. Once you are

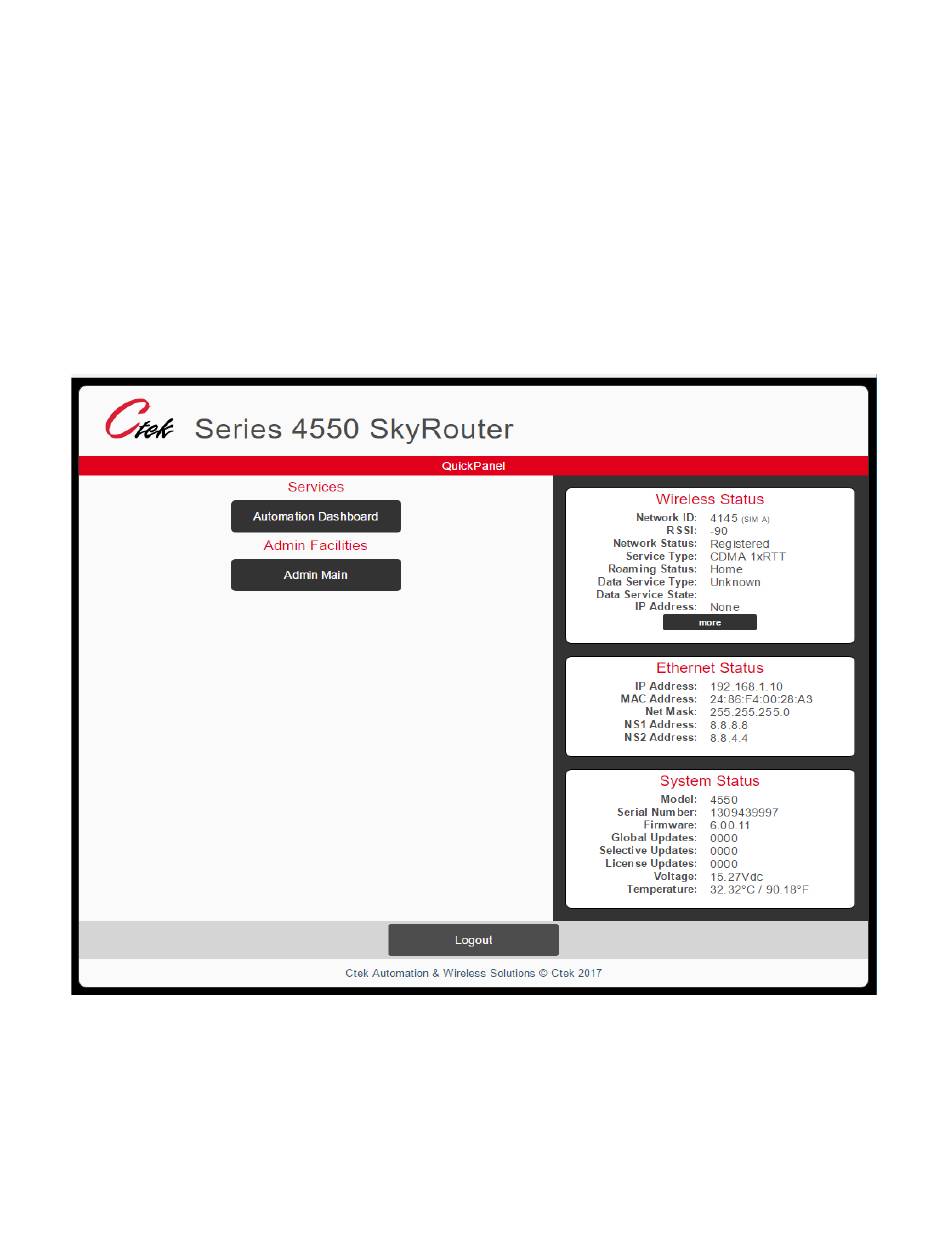

successfully logged in the Quick Panel display shown in Figure 1 will be presented.
Figure 1
