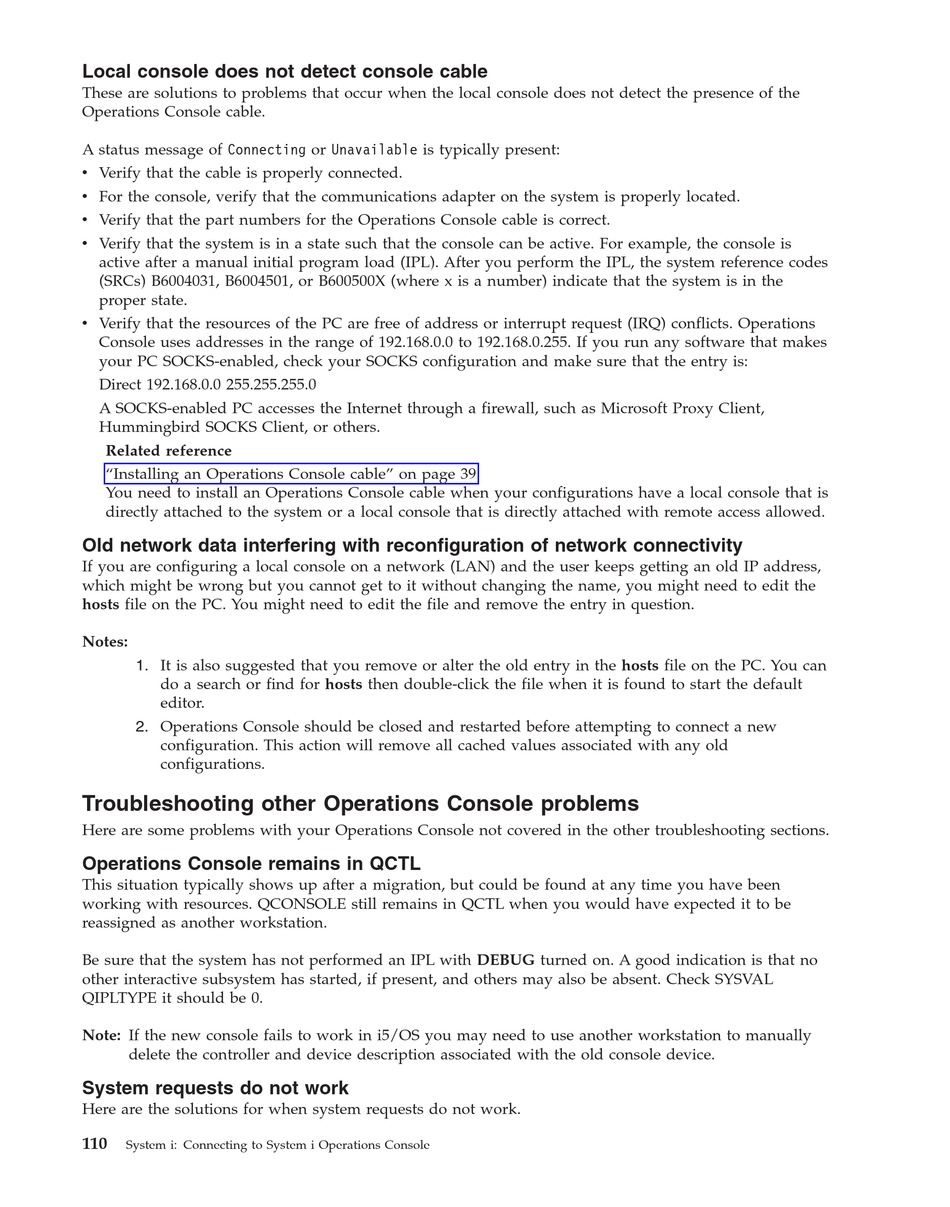

Local console does not detect console cable

These are solutions to problems that occur when the local console does not detect the presence of the
Operations Console cable.
A status message of Connecting or Unavailable is typically present:
v Verify that the cable is properly connected.
v For the console, verify that the communications adapter on the system is properly located.
v Verify that the part numbers for the Operations Console cable is correct.
v Verify that the system is in a state such that the console can be active. For example, the console is
active after a manual initial program load (IPL). After you perform the IPL, the system reference codes
(SRCs) B6004031, B6004501, or B600500X (where x is a number) indicate that the system is in the
proper state.
v Verify that the resources of the PC are free of address or interrupt request (IRQ) conflicts. Operations
Console uses addresses in the range of 192.168.0.0 to 192.168.0.255. If you run any software that makes
your PC SOCKS-enabled, check your SOCKS configuration and make sure that the entry is:
Direct 192.168.0.0 255.255.255.0
A SOCKS-enabled PC accesses the Internet through a firewall, such as Microsoft Proxy Client,
Hummingbird SOCKS Client, or others.
Related reference
"Installing an Operations Console cable" on page 39
You need to install an Operations Console cable when your configurations have a local console that is
directly attached to the system or a local console that is directly attached with remote access allowed.

Old network data interfering with reconfiguration of network connectivity

If you are configuring a local console on a network (LAN) and the user keeps getting an old IP address,
which might be wrong but you cannot get to it without changing the name, you might need to edit the
hosts file on the PC. You might need to edit the file and remove the entry in question.
Notes:
1. It is also suggested that you remove or alter the old entry in the hosts file on the PC. You can
do a search or find for hosts then double-click the file when it is found to start the default
editor.
2. Operations Console should be closed and restarted before attempting to connect a new
configuration. This action will remove all cached values associated with any old
configurations.

Troubleshooting other Operations Console problems

Here are some problems with your Operations Console not covered in the other troubleshooting sections.

Operations Console remains in QCTL

This situation typically shows up after a migration, but could be found at any time you have been
working with resources. QCONSOLE still remains in QCTL when you would have expected it to be
reassigned as another workstation.
Be sure that the system has not performed an IPL with DEBUG turned on. A good indication is that no
other interactive subsystem has started, if present, and others may also be absent. Check SYSVAL
QIPLTYPE it should be 0.
Note: If the new console fails to work in i5/OS you may need to use another workstation to manually
delete the controller and device description associated with the old console device.

System requests do not work

Here are the solutions for when system requests do not work.
