VL800 eVentpar rGBa

OVERVIEW

This document provides installation and operation instructions for the following product(s):
P R O D U C T N AM E
VL800 Eventpar RGBA, 1 x 200W 3000K LED PAR 64, manual zoom setting w/power
connector

incLuded iteMS

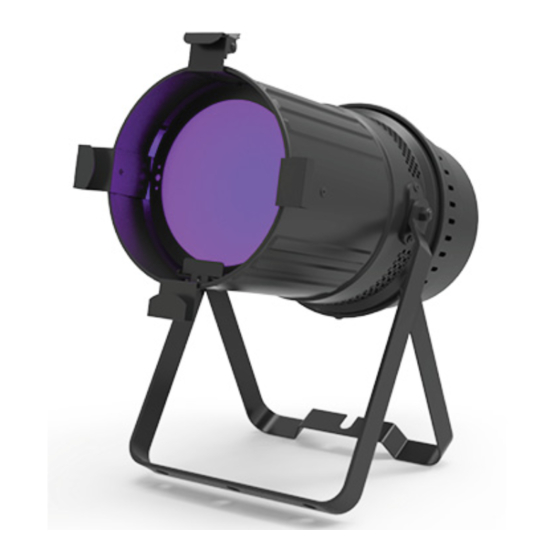

VL800 eventpar rGBa

inStaLLatiOn and Setup

MOuntinG

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid
vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is
secure and is able to support a weight of 10 times of the unit's weight. Always use a safety cable that can hold up
to 12 times the weight of the unit when installing the fixture.
The luminaire must be mounted by professionals.

Set up

WARRANTY CARD
QUICK START GUIDE
(this document)
OMeGa cLaMp

CONTROL PANEL

1 Display. Shows menu and selected functions
2 Buttons.
MENU To select the programming functions
UP To go backward in the selected functions
DOWN To go forward in the selected functions
ENTER To confirm the selected functions
3 DMX/RDM input. Connectors for DMX 512 operation, 5-pin XLR cable to link the DMX console
4 DMX/RDM thru. Connectors for DMX 512 operation, 5-pin XLR cable to link the next unit
5 Power Input. Connects to supply power.
6 Power Thru. Connects to the next fixture.
Read all instructions before installing or using
this product. Retain this quick start guide for
future reference. Additional product information
and descriptions may be found on the product
POWER CONNECTOR
data sheet.
1
Quick Start Guide
912400575002
OR DE R C ODE (S)
912400575002
912400576323
912400576325
912400576324
