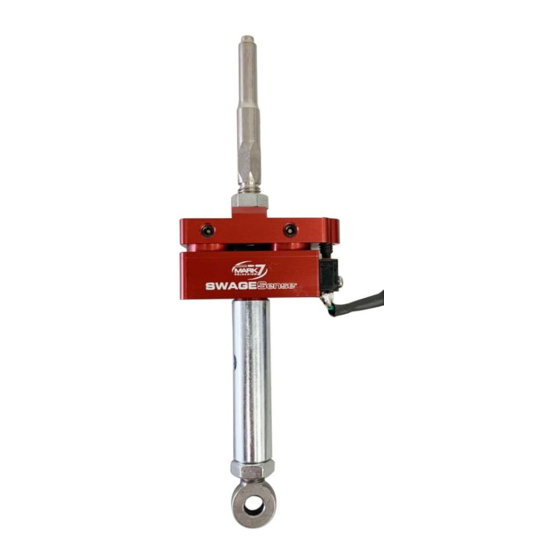

Mark 7® SwageSense Assy - RL1100
Installation Manual V 1.0
Read this manual completely. Understand all safety and operating instructions. Failure to
comply with the warnings and instructions may result in serious injury, illness, or death.
MARK 7® RELOADING INDEX PAWL ASSY REPLACEMENT USER MANUAL VERSION
1
1.0, COPYRIGHT 2020
ALL RIGHTS RESERVED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SwageSense Assy RL1100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mark 7 SwageSense Assy RL1100

  • Page 1 Read this manual completely. Understand all safety and operating instructions. Failure to comply with the warnings and instructions may result in serious injury, illness, or death. MARK 7® RELOADING INDEX PAWL ASSY REPLACEMENT USER MANUAL VERSION 1.0, COPYRIGHT 2020 ALL RIGHTS RESERVED...
  • Page 2 Remove Swage Lock Nut and Swage Adjust. Bolt. You are going to use them later. Swage Assembly Swage Con Rod Swage Lock Nut Swage Adjust. Bolt Mark 7® Reloading Index Pawl Assy Replacement User Manual Version 1.0, Copyright 2020 All rights reserved...
  • Page 3 4. Install Mark7 Swage Rod: a. Make sure you use correct Swage Rod. #5 engraved for small primers, #6 – for large. b. Install Delrin Bushing provided on top of Mark 7 Swage Rod. c. Install Mark7 Swage Rod into Dillon RL1100 frame.
  • Page 4 Thread Mark7 Swage Rod up by hand until it stops. d. Move the Toolhead up. e. Add ½ of the turn up. Secure using Retaining Nut. Mark 7® Reloading Index Pawl Assy Replacement User Manual Version 1.0, Copyright 2020 All rights reserved...
  • Page 5 Troubleshooting Refer to the Mark 7 Digital Community at www.markvii-loading.com/community for articles and videos to assist with troubleshooting. Please contact us for technical support Phone: 1-888-462-7577 (option #3 Technical Support) Hours: 8:30am-5:00pm, ET, M–F To submit a Support Ticket please visit: https://www.markvii-loading.com/contact-us_ep_64-1.html...
