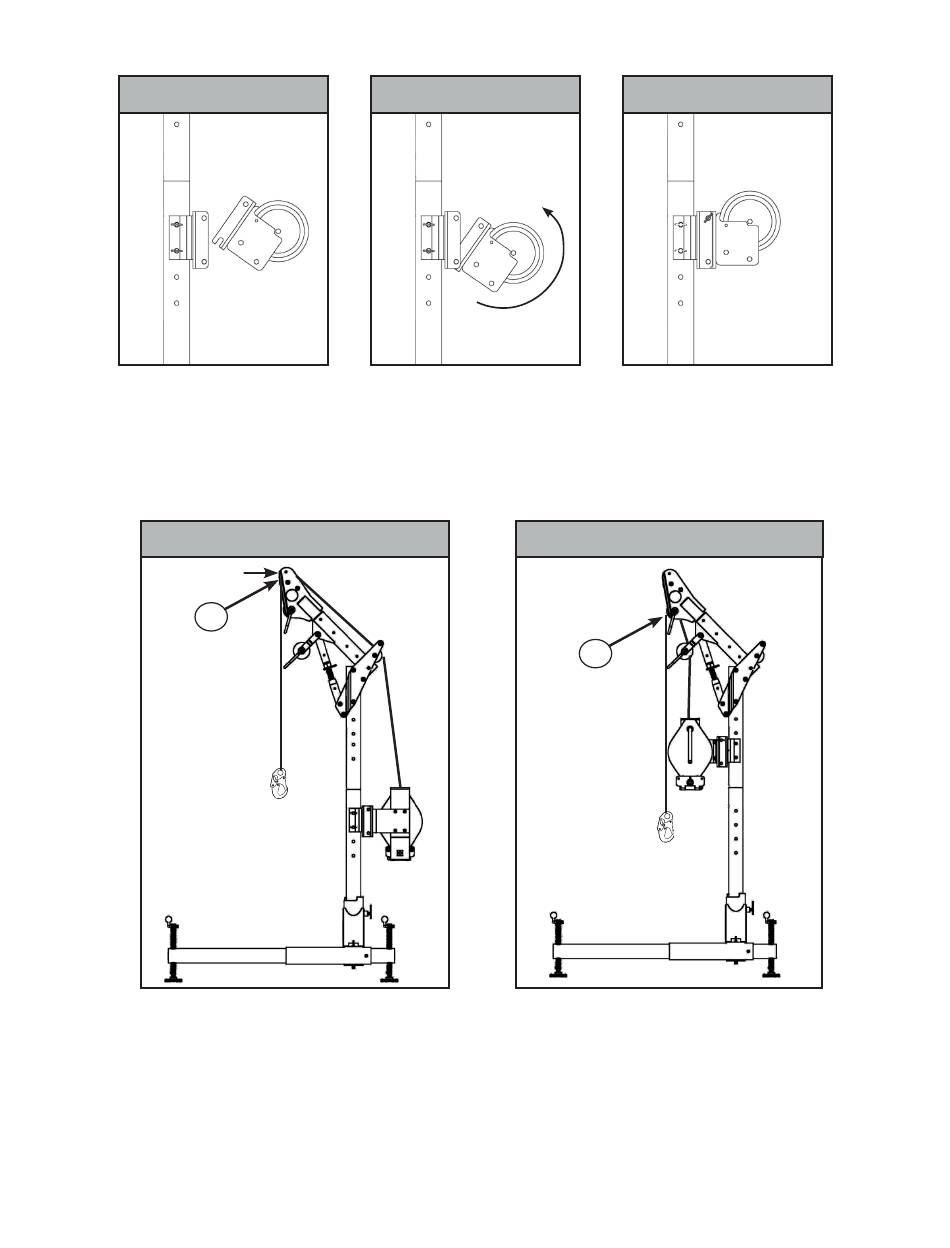

To attach a winch or 3-Way to the Davit Device Receiver Bracket, place the notch in the device side bracket over the bottom bar of the
bracket as shown in Figure 30. Rotate to align the upper holes, see Figure 31. Insert the provided detent pin, see Figure 32.
Figure 30
4.9 Cable Routing
If using a rear mounted device, use the Top Pulley (TP). Run the line of the device over the rear pulley of the Davit Arm; remove the
detent pin and run the line over the top pulley and reinsert the detent pin, see Figure 33. If using a front mounted device, use the Bottom
Pulley (BP). Run the line over the bottom pulley and around lower the pulley in the front of the davit arm, see Figure 34. The lifeline must
be routed through both pulleys for all front mounted devices.
Detent Pin
TP
MCS30 Rev B
Figure 33
Figure 31
BP
021519
Figure 32
Figure 34
