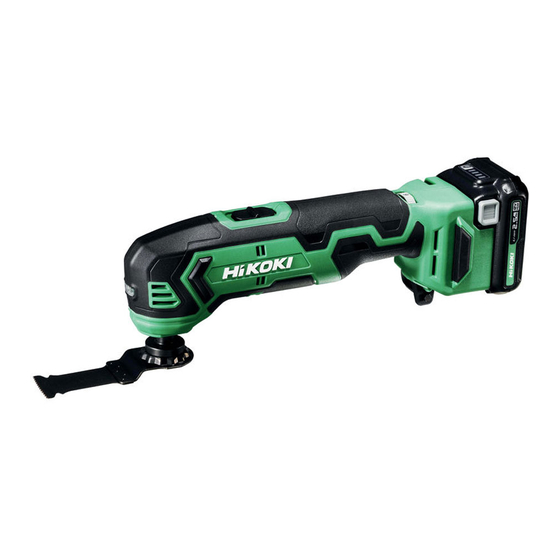

English CONTENTS GENERAL POWER TOOL SAFETY WARNINGS ........24 CORDLESS MULTI TOOL SAFETY WARNINGS ........27 ADDITIONAL SAFETY WARNINGS ............. 27 CAUTION ON LITHIUM-ION BATTERY ............29 REGARDING LITHIUM-ION BATTERY TRANSPORTATION ...... 31 SYMBOLS ....................31 NAME OF PARTS..................32 SPECIFICATIONS ..................
Page 25
English Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions.
Page 26
English Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off...
English e) Do not use a battery pack or tool that is damaged or modifi ed. Damaged or modifi ed batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury. Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi...
Page 28
English Working with metal can cause sparks. Make sure there are no fl ammable and combustible materials in the vicinity and that they are stored in a safe location. Always charge the battery at a temperature of 0 – 40°C. A temperature of less than 0°C will result in over charging which is dangerous.
English 23. Do not touch the application tool, its attachment area or other metal surfaces immediately after use as they will be hot. Doing so may result in burns or injury. The metal is hot and can easily burn your skin. 24.
Page 30
English ○ Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.). Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
English REGARDING LITHIUM-ION BATTERY TRANSPORTATION When transporting a lithium-ion battery, please observe the following precautions. WARNING Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output Power Output and follow the instructions of the transportation company when arranging transport.
Charging voltage 10.8 V – 12 V Peak 0.35 kg Weight STANDARD ACCESSORIES In addition to the main unit (1 unit), the package contains the accessories in Table 1. Table 1 CV12DA CV12DA (2FS) (NN) ― Charger (UC12SL) ― Battery (BSL1225M) Case ―...
English APPLICATIONS ○ Flush cutting and pocket cutting of various materials ○ Peeling of tiles, caulking, etc. ○ Polishing wood materials, etc. BATTERY REMOVAL / INSTALLATION Battery removal Hold the handle tightly and push the battery Battery cover latches to remove the battery (see Fig. 7, 8). CAUTION Terminals Battery...
Page 35
English Pilot lamp indication The indications of the pilot lamp will be as shown in Table 2, according to the condition of the charger or the battery. Table 2 Indications of the pilot lamp Lights for 0.5 seconds. Does Before not light for 0.5 seconds.
Page 36
English NOTE The recharging time may vary according to the ambient temperature. In addition, the charge time becomes signifi cantly long in a low temperature environment, but this is not abnormal. Disconnect the charger’s power cord from the receptacle. Hold the charger fi rmly and pull out the battery. NOTE Be sure to pull out the battery from the charger after use, and then keep it.
English PRIOR TO OPERATION Preparing and checking the work environment Make sure that the work site meets all the conditions laid forth in the precautions. Checking the battery Make sure that the battery is installed fi rmly. If it is at all loose it could come off and cause an accident.
Page 38
English Attach sanding paper matching the shape of the sanding plate. Sanding paper Hexagonal Hexagonal bar wrench bar wrench M6 bolt M6 bolt Sanding plate Blade Retaining hole Retaining hole Attachiment ring lug Attachiment ring lug Fig. 10 Sliding the switch towards will switch on, simultaneously activating the LED Switch...
Page 39
English Storing the hexagonal bar wrench (Fig. 12) Secure in the The hexagonal bar wrench can be stored inside the body. wrench holder. Store as shown in the fi gure to the right, and secure in the wrench holder. Insert the hexagonal bar wrench.
Page 40
On 0.5 second/off 0.5 second Allow the tool and battery to Temperature Protection thoroughly cool. Low Voltage Protection Recharge the battery. On 0.25 second/off 0.25 second Please take the tool to the HiKOKI Damage to PCBA parts Authorized Service Center.
English CAUTION: on lithium-ion battery To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading.
English BASICS OF CUTTING WORK ○ Cutting board (Fig. 17) For effi cient cutting, hold the blade at an angle, pierce the board, and push the blade forward. Approx. 45° Fig. 17 ○ Deep cutting in wood (Fig. 18) The tool may become stuck if you try to make deep cuts by moving the tool forward while held perpendicular relative to the surface of the wood.
○ Application tools To ensure maximum operating effi ciency and results, it is very important to select the appropriate blade best suited to the type and thickness of the material to be cut. For details contact HiKOKI Authorized Service Center.
English ATTACHING THE DUST COLLECTION ADAPTER (Sold separately) Attach the duct adapter to the swarf discharge outlet when using with the dust collector attached. Use a hose with an internal diameter of 25 mm to connect between the dust collector side and the dust collector.
Page 45
In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the HiKOKI cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi...
English SELECTING ACCESSORIES Select accessories that are suited to a specifi c task. For details contact HiKOKI Authorized Service Center. UC12SL BSL1215 BSL1225M BSL1240M (10.8 V – 12 V Peak) 10.8 V – 12 V Peak Part Number: 374778 Charger...
