- Page 1 STB BEEPER COLLAR STB HAWK COLLAR RUN/POINT COLLAR Owner's Manual Please read this manual thoroughly before operating the STB BEEPER COLLAR or STB HAWK COLLAR.
- Page 2 Dogtra product or other property. PRODUCT SAFETY Training Methods Dogtra products may be used with a variety of training methods. However, each dog may have a different reaction to training methods and to Dogtra products. Closely observe your dog when determining the right training method to use with your Dogtra product.
- Page 3 Consult your physician or medical device maker before using your medical device with a Dogtra product. If you think that your Dogtra product is interfering with your pacemaker, defibrillator, or other medical device, stop using the Dogtra product.
-
Page 4: Table Of Contents
CONTENTS AT A GLANCE ..............MAIN FEATURES ............OVERVIEW ............... UNDERSTANDING YOUR TRAINING SYSTEM TURNING THE SYSTEM ON/OFF ......BEEPER FUNCTION ..........HAWK FUNCTION ............ RECEIVER FITTING ..........LED INDICATOR ............CHARGING THE BATTERY ........MAINTENANCE .............. WARRANTY AND REPAIR INFORMATION ..... -
Page 5: At A Glance
Magnet Manual Optional Accessories Auto Charger The auto charger for the STB BEEPER COLLAR or STB HAWK COLLAR has an input of 12-volts to 24-volts and has an output of 10-volts 1500mAh. European Charger Dogtra’s European chargers are designed for use with a 220 volt AC electrical outlet. -
Page 6: Main Features
MAIN FEATURES * Sound will depend on the model you have • 400-meter audible range for beeper or hawk • STB BEEPER: Two beeper modes - Run/Point and Point STB HAWK: Two hawk modes - Run/Point and Point • STB BEEPER: Low beep sound for Point Mode STB HAWK: Low hawk sound for Point Mode •... -
Page 7: Overview

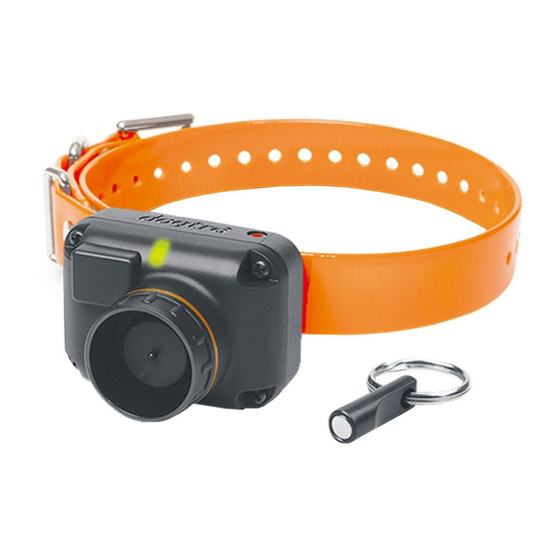

OVERVIEW Collar Strap Battery Charging Receptacle & Rubber Plug Mode Selection & On/Off LED Indicator Magnetic Red Dot Light Horn STB BEEPER COLLAR or STB HAWK COLLAR... -
Page 8: Understanding Your Training System
1. Turning the System On/Off Magnetic Red Dot To turn on the STB BEEPER COLLAR or STB HAWK COLLAR, place the activation magnet on the magnetic red dot on the system. Hold them together for a moment until the LED light comes on. The system will play a melody and then beep twice when it is turned on. -
Page 9: Beeper Function
Run/Point Mode again, repeat the same procedure by turning the system on and placing the activation magnet to the red dot on the STB BEEPER COLLAR for 1 second and release. In the Run/Point Mode, there will be a double beep every 7 seconds while the dog is running and double beep every 2 seconds when the dog is pointing/stationary. -
Page 10: Hawk Function
3. Hawk Function The STB HAWK COLLAR will always start in the Run/ Point Mode. To change to the Point-Only Mode, turn the system on and place the activation magnet to the red dot on the STB HAWK COLLAR for 1 second and release. When the Point-Only Mode is selected, the STB HAWK COLLAR will emit a beep sound. -
Page 11: Receiver Fitting
4. Receiver Fitting Proper Fit The receiver should be fitted so that it has close contact with your dog’s neck to ensure proper usage. You should be able to fit a finger in between the product and your dog’s skin. The best location is on either side of the dog’s windpipe. -
Page 12: Led Indicator
5. LED Indicator Located on the front of the system, the LED indicator flashes every 4 seconds when the receiver is on and ready for use. The LED indicator color indicates the battery life level. Green = Full charge Amber = Medium charge Red = Needs charge If the unit is used while the LED indicator is red, it may shut down automatically. -
Page 13: Charging The Battery
NOTE 2: The unit has a partial charge when it leaves the Dogtra facility. Upon receipt of the system, be sure to give it a full 2-hour initial charge before the first use away from any flammable substances. - Page 14 Follow the steps below to charge your system: 1. Open the rubber plug on the battery charging receptacle and plug in the charging cable. 2. Plug the charger into a 120-volt wall outlet or, if using the auto charger, plug into a cigarette lighter only for lithium polymer batteries (use a 220 volt European charger for Europe).
-
Page 15: Maintenance
Storage Maintenance The STB BEEPER COLLAR or STB HAWK COLLAR should be fully charged before storing for extended periods. While in storage, the unit should be given a full charge once a month, and before the first use. -
Page 16: Warranty And Repair Information
No dealer of Dogtra products, nor any employee or agent of Dogtra, is authorized to make any additions, changes, or extensions to the Warranty. Dogtra, at its sole discretion and at any time, reserves the right to modify the Warranty. - Page 17 PURPOSE. Limitation of Remedies Dogtra’s liability is limited to the cost of repair or replacement of the Dogtra product under Warranty. Any claim or action to enforce the Warranty must be commenced within thirty (30) days of the Warranty’s expiration for your product.
- Page 18 You are responsible for shipping, including cost, of your product to Dogtra for warranty service. Dogtra will handle shipping, including cost, of the repaired or replaced product back to customers in the USA. Dogtra will not be responsible for shipping, including cost and/or applicable taxes or fees, for products sent to Canada.
