1. Introduction
1.1 General Specifications
The unit provides for automatic transfer of a load from mains to generator in the event of a mains
failure. Intended for unattended operation, it is able to detect failure of any phase of the mains and to
start and switch over to a generator if the mains voltage goes outside pre-set limits. Both automatic
and manual control is possible. A test mode is also available which allows the generator to be run
without taking the load.
The unit has Dual Working feature. In the event of a mains failure, group with high priority starts and
takes the load. If both groups has no priority, the group with less working hour will start and take the
load. To use Dual Working feature Dual Set expansion module must be used.
The unit calculates engine RPM from Magnetic Pickup sensor (MPU) and/or generator voltage signal.
The unit monitors J1939 ECU messages and provides remote start/stop control via J1939 protocol
(supported ECUs: Volvo EMS2, Volvo EDC4, Perkins, Scania S6, MAN MFR and standard messages).
The unit monitors generator operation and gives warning of any faults that are detected.
The configurable input-3 can be used as the water level sensing input.
The configurable input-7 can be used as the cabin temperature analog input.
The unit has got the "Event Log" that will record last 500 events.
1.2 Warranty
EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship.
This warranty is provided for a period of two years. The warranty period starts from the delivery date. This
warranty is in force if duty and responsibilities which are determined in warranty document and instruction
manual performs by the customer completely.
1.3 Maintenance
Repairs should only be performed by trained and specialized personnel. Cut power to the device before
accessing internal parts.
Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these
solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or
water to clean the external plastic case.

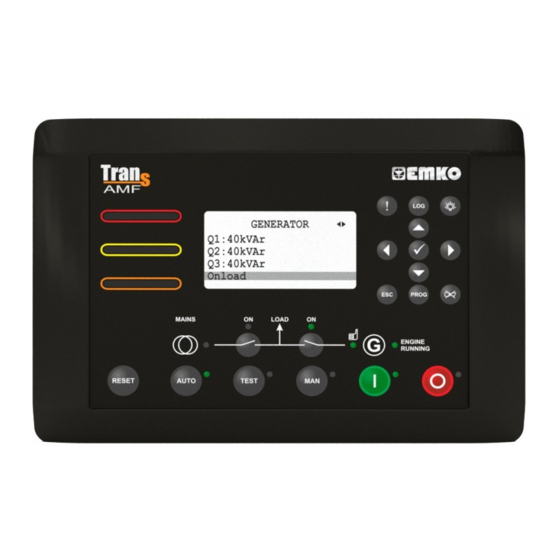

TRANS-AMF
AUTOMATIC MAINS FAILURE UNIT
Introduction Brochure. ENG TRANS-AMF 01 V48 02/20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EMKO TRANS-AMF
Summary of Contents for EMKO TRANS-AMF
- Page 1 The unit has got the “Event Log” that will record last 500 events. 1.2 Warranty EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.
- Page 2 2. Installation Ýçindekiler Before beginning installation of this product, please read the instruction manual and warnings below carefully. A visual inspection of this product for possible damage occured during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product.
- Page 3 2.3 Electrical Connection TRANS-AMF three phase connections schematic BATTERY - FUSE-7 BATTERY + Configurable Analog Input-2 Oil Sender Temperature Sender Level Sender or Configurable Analog Input-1 To Engine Sender Common Earth Emergency Stop or Configurable Input-1 FUSE-6 Configurable Input-2 Water Level or...
- Page 4 3. Changing And Saving Parameters Values Operation Screen MAINS PROGRAM V12: 380V V1 : 220 Operator setting Press the Up or V23: 380V V2: 220V ü Technician setting ü Down buttons to V31: 380V V3: 220V Factory adjustment select the section Wait for start you wish to view/change.
- Page 5 4. Parameters 4.1 Operator Parameters 4.1.1 Mains MAINS VOLT LEVEL ( Default Unit Mains->Volt level Under volt trip Mains Under Voltage Under volt reset Mains Under Voltage Reset Over volt trip Mains Over Voltage Over volt reset Mains Over Voltage Reset MAINS FREQ.
- Page 6 POWER LEVEL ( Generator->Power level Default Unit Under power Generator Under Power 9999 Under power prealarm Generator Under Power Pre-Alarm 0(dis) 9999 Under power reset Generator Under Power Pre-Alarm Reset 9999 Over power IDMT alarm Generator Over Power IDMT Alarm ENABL/DISBL DISBL Over...
-
Page 7: System Network
4.2 Technician Parameters 4.2.1 System SYSTEM NETWORK ( System->Network Default Unit CT ratio Current Transformer Ratio 9999 Earth fault CT ratio Earth Fault Current Transformer Ratio 9999 PT ratio Voltage Transformer Ratio Type of AC system 0- 1 Phase 2 Wire Select AC system;... -
Page 8: Lcd Display
LCD DISPLAY ( Default Unit System->LCD display Language ENGLISH/CHINESE ENGLISH Language Selection Contrast Contrast Setting Auto backlight off Auto Backlight Off 0-DISABLE 1-ENABLE 2-ENABLE(only when engine is not running) Auto scroll time 0 (dis) Auto Scroll Time Auto scroll number Auto Scroll Number Err. - Page 9 4.2.2 Mains MAINS VOLT LEVEL ( Default Unit Mains->Volt level Under volt trip Mains Under Voltage Under volt reset Mains Under Voltage Reset Over volt trip Mains Over Voltage Over volt reset Mains Over Voltage Reset MAINS FREQ. LEVEL ( Default Unit Frequency...
- Page 10 CUR LEVEL & ACT Generator->Current level & act. Default Unit Under cur. set 9999 Generator Under Current Set Under cur. prealarm Generator Under Current Pre-Alarm 0(dis) 9999 Under cur. reset Generator Under Current Pre-Alarm Reset 9999 Under cur. act. Generator Under Current Actions 0(dis) Disable Warning (Alarm Only, No Shutdown)
- Page 11 POWER LEVEL ( Generator->Power level Default Unit Under power Generator Under Power 9999 Under power prealarm Generator Under Power Pre-Alarm 0(dis) 9999 Under power reset Generator Under Power Pre-Alarm Reset 9999 Under power act. Generator Under Power Actions 0(dis) 0(dis) Disable Warning (Alarm Only, No Shutdown) Electrical Trip (Alarm/Off Load Generator...
- Page 12 WORKING CALENDAR Generator->Working calendar Default Unit Disable/enable select DISBL ENABL DISBL Working Calendar Disable or Enable Start time on monday 0.00 23.59 0.00 H.Min Working Calendar Work Start Time on Monday Stop time on monday 0.00 23.59 23.59 H.Min Working Calendar Work Stop Time on Monday Start time on tues.
- Page 13 ENGINE PLANT BATTERY ( Default Unit Engine->Plant battery Under volt shutdown 6.0(dis) 30.0 Battery Undervolts Shutdown Under volt warning 6.0(dis) 30.0 11.0 Battery Undervolts Warning Under volt reset 30.0 11.5 Battery Undervolts Warning Reset Under volt delay 0.0 120.0 Battery Undervolts Volts Delay Over volt shutdown 6.0(dis) 30.0...
- Page 14 CANBUS ERROR SET ( Engine->CanBus error set Default Unit CAN fault actions Can Fault Actions: 0- Disable 1- Warning Non-Latching 2- Warning (Alarm Only, No Shutdown) 3- Electrical Trip (Alarm/Off Load Generator Followed By Shutdown After Cooling) 0(dis) 4- Shutdown (Alarm And Shutdown) CAN fault activation Can Fault Activation: 0- Active From Starting...
-
Page 15: Engine Maintenance
ENGINE MAINTENANCE ( Unit Default Engine->Maintenance Running hour interval 0(dis) 9999 5000 Hour Running Hours Interval Maint. date interval 0(dis) Month Maintenance Date Interval Eng. stop when maint ENABL/DISBL DISBL Force Engine Shutdown When Maintenance Is Due Engine running hour 0 30000 Engine Running Hour Maintenance okay... -
Page 16: Engine General
Start time on Exercise Sta rt Time Friday 0.00 23.59 0.00 H.Min Stop time on 0.00 0.00 H.Min Exercise Stop Time Friday 23.59 Start time on 0.00 23.59 0.00 H.Min Exercise Sta rt Time Friday Stop time on Exercise Stop Time Friday 0.00 23.59... - Page 17 12- MSLL 790 (RS485) 13- CSFL 790 (RS485) 14- User Configured Note : These sensor types can only be used in the Trans-AMF.RS485 units. The USB communication interface can not be used when one of these sensor types is selected.
- Page 18 Conf. AI1 indication If Conf. AI1 type is Digital " ” 0- Status 1- Warning Non-Latching 2- Warning Latching 3- Electrical Trip 4- Shutdown Conf. AI1 activation If Conf. AI1 type is Digital " ” 0- Active From Starting 1- Active From Safety On 2- Always Active Conf.
- Page 19 SENDER LINEARISATION ( Inputs->Sender linearisation Default Unit Oil pressure sender 1 1300 Oil Pressure Sender Point-1 Oil pressure 1 30.0 Oil Pressure Point-1 Oil pressure sender 2 1300 Oil Pressure Sender Point-2 Oil pressure 2 Oil Pressure Point-2 30.0 Oil pressure sender 3 1300 Oil Pressure Sender Point-3 Oil pressure 3...
- Page 20 Conf. AI1 sender 6 1300 Configurable Analog Input-1 Sender Point-6 Conf. AI1 value 6 3000 Configurable Analog Input-1 Point-6 Conf. AI1 sender 7 1300 Configurable Analog Input-1 Sender Point-7 Conf. AI1 value 7 3000 Configurable Analog Input-1 Point-7 Conf. AI1 sender 8 1300 Configurable Analog Input-1 Sender Point-8 Conf.
- Page 21 CONF. INPUT-X ( Inputs->Conf. input-x Default Unit Dis,user conf.or list in1=2 0- Disable 0(dis) in2, 3=1 1- User Configured in4, 5=2 2- Select From List in6=1 Polarity in1, 3=1 0- Normally Open (Close To Activate) in2, 4=0 1- Normally Close (Open To Activate) in5, 6=0 Indication If User Configured...
- Page 22 CONF. INPUT-7 ( Inputs->Conf. input-7 Default Unit Input type 0- Disable 0(dis) 1- User Configured (Digital) 2- Select From List (Digital) 3- Cabin Temperature (Anolog) Polarity If Input Type is Digital 0- Normally Open (Close To Activate) 1- Normally Close (Open To Activate) Indication If Input Type is User Configured 0- Status...
- Page 23 CONF. EXP. INPUT-X ( Inputs->Conf. exp. input-x Default Unit Dis,user conf.or list 0- Disable 0(dis) 1- User Configured 2- Select From List Hardware type > -Ve Switched Battery - > +Ve Switched Battery + Polarity 0- Normally Open (Close To Activate) 1- Normally Close (Open To Activate) Indication If User Configured...
- Page 24 4.2.6 Outputs CONF. OUTPUT-1 ( Outputs->Conf. output-1 Default Unit Polarity 0- Normally Open (Close To Activate) 1- Normally Close (Open To Activate) Function 0-NOT USED 1-AIR FLAP CONTROL 2-ALARM RESET 3-AUDIBLE ALARM 4-AUTO START INHIBIT 5-AUXILIARY MAINS FAILURE 6-BATTERY HIGH VOLTAGE 7-BATTERY LOW VOLTAGE 8-CALLING FOR SCHEDULED RUN(EXERCISE) 9-CAN ECU POWER...
- Page 25 CONF. OUTPUT-2 ( Outputs->Conf. output-2 Default Unit Polarity 0- Normally Open (Close To Activate) 1- Normally Close (Open To Activate) Function The same as Configurable Output-1 options CONF. OUTPUT-3 ( Outputs->Conf. output-3 Default Unit Polarity 0- Normally Open (Close To Activate) 1- Normally Close (Open To Activate) Function The same as Configurable Output-1 options...
- Page 26 CONF. EXP. OUTPUT-7 ( Outputs->Conf. exp. output-7 Default Unit Polarity 0- Normally Open (Close To Activate) 1- Normally Close (Open To Activate) Function The same as Configurable Output-1 options CONF. EXP. OUTPUT-8 ( Outputs->Conf. exp. output-8 Default Unit Polarity 0- Normally Open (Close To Activate) 1- Normally Close (Open To Activate) Function The same as Configurable Output-1 options...
- Page 27 Default Unit DUAL SET MODULE ( Expansion modules->Dual set Disable/enable select ENABL/DISBL ENABL Expansion Dual Set Module Selection Node ID Node Address Working period 0:00 98:59 1:00 H.Min Dual Working Period Early start time Early Start Time Remote priority selct 0(dis) Remote Priority Selection: 0- Disable, 1- Priority, 2- None Priority...
-
Page 28: Specifications
5. Specifications Equipment use : Electrical control equipment for generating sets. Housing & Mounting : 229 mm x 152 mm x 41 mm. (including connectors) . Plastic housing for panel mounting Panel Cut-Out : 182mm x 135mm. Protection IP65 at front panel. Weight : Approximately 0,53 Kg. - Page 29 Automatic mains failure unit with USB communication Trans-AMF.RS485: Automatic mains failure unit with USB and RS-485 communication Thank you very much for your preference to use Emko Elektronik products, please visit our web page to download detailed user Your Technology Partner manual.
