Introduction
The i6000s 24 Flex and i6000s 36 Flex AC Current Probes
(hereafter referred to as "the Probes") are used with
oscilloscopes, digital multimeters, recorders or data loggers. The
Probes can be used to measure AC current up to 6000 A. The
flexible measuring head allows current measurements on
conductors that are hard to reach or inaccessible using typical
clamp-on current probes.
The Probes provide a low-voltage (3 V ac) output that is
proportional to the current being measured. The Probes provide
full-scale direct readings for 60 A, 600 A, and 6000 A.
Symbols
The following table shows the symbols used on the product
and/or in this manual.
Symbol
~
W
X
T
-
P
>
;
PN 2842359
June 2007
©2007 Fluke Corporation. All rights reserved. Printed in China.
Do not dispose of this product as unsorted municipal
waste. Go to Fluke's website for recycling information.
Important Information. Refer to the manual.
Hazardous Voltage. Risk of electric shock.
Double/Reinforced insulation.
Do not apply around or remove from the HAZARDOUS
LIVE conductors.
Complies with the relevant European standards.
Conforms to Underwriters' Laboratory, Inc.
Conforms to Australian standards.

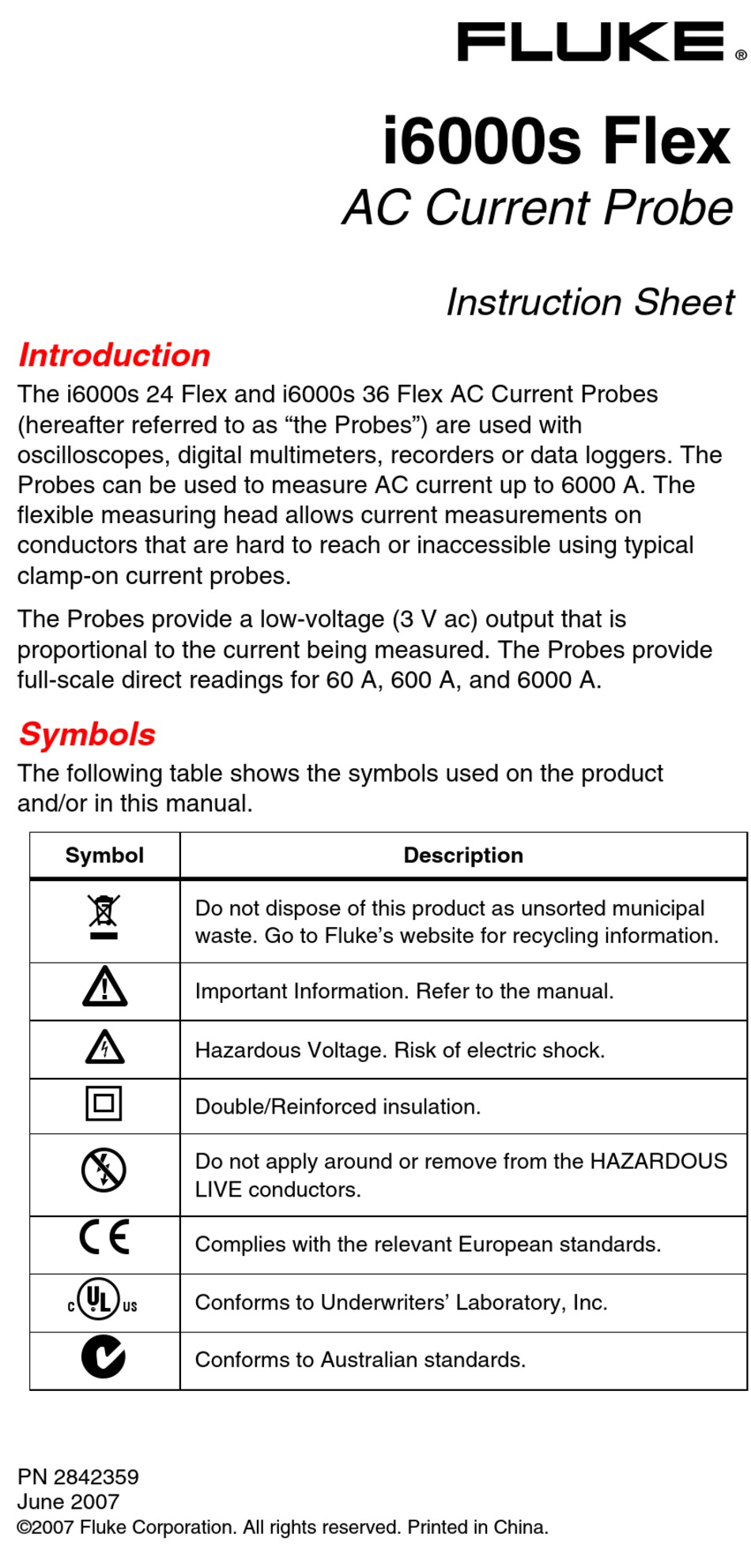

i6000s Flex
AC Current Probe
Instruction Sheet
Description
®
Advertisement
Related Manuals for Fluke i6000s Flex
Summary of Contents for Fluke i6000s Flex
- Page 1 Do not apply around or remove from the HAZARDOUS LIVE conductors. Complies with the relevant European standards. > Conforms to Underwriters’ Laboratory, Inc. Conforms to Australian standards. PN 2842359 June 2007 ©2007 Fluke Corporation. All rights reserved. Printed in China.
-
Page 2: Safety Instructions
Safety Instructions In this instruction sheet, a Warning identifies conditions and actions that pose hazard(s) to the user. A Caution identifies conditions and actions that may damage the calibrator or the test instruments. WX Warning To avoid electric shock or personal injury: •... -
Page 3: Specifications
Specifications Electrical Characteristics Current Ranges 60 A / 600 A / 6000 A ac rms Output Sensitivity 50 mV / 5 mV / 0.5 mV per A (AC Coupled) Load Impedance 100 kΩ minimum ± 1% of range (45 – 65 Hz) Accuracy (at 25 ºC) Linearity ±0.2 % of reading... - Page 4 General Characteristics Head Cable 610 mm (24 in.) i6000s Flex-24 Length 915mm (36 in.) i6000s Flex-36 (double insulated) Cable Diameter 14.3 mm (0.562 in) Bend Radius 38.1 mm (1.5 in) Cable Length 2 m long (78.7 in) (head to electronics) 0.5 m cable terminated with safety BNC...
- Page 5 Operating Instructions ewf0001.eps Measuring head Measuring head coupling Head output cable Enclosure Power on/Range selector Battery low indicator Power on indicator Output cable Safety BNC connector External power supply input...
- Page 6 External Power Supply An optional Class II external power supply is available from Fluke. The power supply is designed to ensure that the Probe continues to meet its specified safety standards. The usage of a power supply from another vendor is not recommended.
- Page 7 XWWarning To avoid electric shock or injury, the flexible current Probes are not for use on conductors with a potential of over 600 V. Wrap the flexible measuring head around the conductor to be tested in a close coupling manner. Energize the circuit under test.
-
Page 8: Maintenance
LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
