Summary of Contents for Fluke ScopeMeter 190 II Series

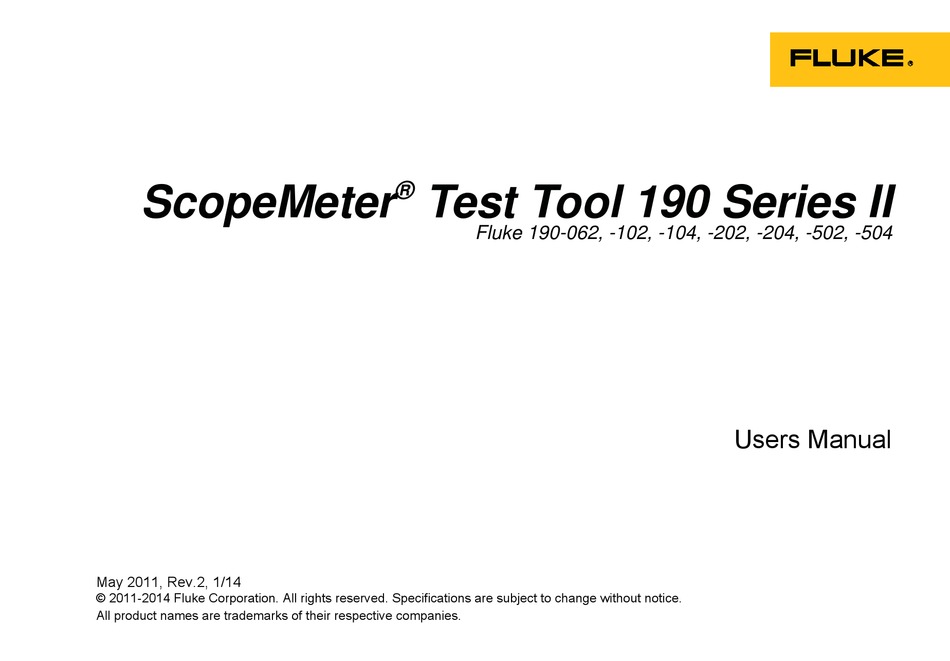

  • Page 1 ® ScopeMeter Test Tool 190 Series II Fluke 190-062, -102, -104, -202, -204, -502, -504...
  • Page 3 Table of Contents Chapter Title Page Chapter 1........................... 1-11 Using the Scope and Meter ..................1-11...
  • Page 4 ScopeMeter® Test Tool 190 Series II Users Manual Using The Recorder Functions................... 2-41...
  • Page 5 Contents (continued) Using Replay, Zoom and Cursors................3-49 Triggering on Waveforms.................... 4-57...
  • Page 6 ScopeMeter® Test Tool 190 Series II Users Manual Using Memory and PC....................5-71...
  • Page 7 Contents (continued) Maintaining the Test Tool .................... 7-95 Specifications....................... 8-111...
  • Page 8 ScopeMeter® Test Tool 190 Series II Users Manual...
  • Page 9 Contents (continued)
  • Page 10 ScopeMeter® Test Tool 190 Series II Users Manual viii...
  • Page 11 Introduction Introduction Version Description Warning Read “Safety Information” before using this instrument.
  • Page 12: Unpacking The Test Tool Kit

    ScopeMeter® Test Tool 190 Series II Users Manual Note Unpacking the Test Tool Kit When new, the rechargeable Li-ion battery is not fully charged. See Chapter 7. 12345 - 12345 - 12345 Figure 1. Test Tool Kit...
  • Page 13 Unpacking the Test Tool Kit Description Description not for 190-xx2 not for 190-xx2 Each set includes: Fluke 190-50x: Other models: Fluke 190-50x:...
  • Page 14: Safety Information: Read First

    ScopeMeter® Test Tool 190 Series II Users Manual Safety Information: Read First Description A “Warning” identifies conditions and actions that pose hazard(s) to the user. A “Caution” identifies conditions and actions that may damage the product.
  • Page 15 Safety Information: Read First...
  • Page 16 Use only insulated voltage probes, test leads Before use, check that the selected/indicated and adapters supplied with the product, or range on the BC190 matches the local line indicated by Fluke as suitable for the Fluke power voltage and frequency. ® 190 Series II ScopeMeter Test Tool series.
  • Page 17 (CAT) rating of the lowest rated individual Do not use exposed metal BNC or banana component of a product, probe, or accessory. plug connectors. Fluke offers cables with Do not use the product around explosive gas, plastic, safety designed BNC connectors vapor, or in damp or wet environments.
  • Page 18: Safe Use Of Li-Ion Battery Pack

    ScopeMeter® Test Tool 190 Series II Users Manual Do not operate the product with covers removed or the case open. Hazardous voltage exposure is possible. Remove the input signals before you clean the product. If Safety Features are Impaired Use only specified replacement parts. Safe Use of Li-ion battery pack...
  • Page 19 Safe Use of Li-ion battery pack Recommendations to safe storage of battery pack. Recommendations to safe use of the battery pack.
  • Page 20 ScopeMeter® Test Tool 190 Series II Users Manual Recommendations to safe disposal of a battery pack. Recommendations to safe transport of battery packs...
  • Page 21: Using The Scope And Meter

    Chapter 1 Using the Scope and Meter About this Chapter Powering the Test Tool BC190 Figure 2. Powering the Test Tool...
  • Page 22: Resetting The Test Tool

    ScopeMeter® Test Tool 190 Series II Users Manual Resetting the Test Tool USER USER USER USER Figure 3. The Screen After Reset...
  • Page 23: Navigating A Menu

    Using the Scope and Meter Navigating a Menu Navigating a Menu SCOPE ENTER ENTER ENTER SCOPE SCOPE Figure 4. Basic Navigation ENTER ENTER...
  • Page 24: Key Illumination

    ScopeMeter® Test Tool 190 Series II Users Manual Note Key Illumination To exit the menu at any moment press (CLOSE). Hiding Key Labels and Menus Off: HOLD CLEAR Off: Off: SCOPE MANUAL Off: AUTO TRIGGER Off: Flashing:...
  • Page 25: Making Input Connections

    Using the Scope and Meter Input Connections Input Connections Making Input Connections each Warning To avoid electrical shock use the insulation sleeve (Figure 1 item e)) if you use the probes without the hook clip or the ground spring. ALL INPUTS ISOLATED Notes To maximally benefit from having independently isolated floating inputs and to...
  • Page 26: Adjusting The Probe Type Settings

    ScopeMeter® Test Tool 190 Series II Users Manual Adjusting the Probe Type Settings INPUT A PROBE ON A Voltage Current Temp. ENTER Figure 6. Scope Connections Voltage ENTER Current Temp...
  • Page 27 Using the Scope and Meter Selecting an Input Channel Selecting an Input Channel To set multiple channels to the same range (V/div) as, for example, input A, do the following: Select the input A measurement function, probe setting and input options for all involved channels press and hold press...
  • Page 28: Displaying An Unknown Signal With Connect-And-View

    ScopeMeter® Test Tool 190 Series II Users Manual Displaying an Unknown Signal with MANUAL AUTO Connect-and-View™ MANUAL AUTO MANUAL AUTO Figure 7. The Screen After an Auto Set RANGE TIME MOVE...
  • Page 29 Using the Scope and Meter Making Automatic Scope Measurements Making Automatic Scope Measurements ENTER 1 … 4 EADING Peak-Peak SCOPE SCOPE SCOPE SCOPE READING .. READING .. EADING on B EADING ENTER on A ENTER...
  • Page 30: Freezing The Screen

    ScopeMeter® Test Tool 190 Series II Users Manual Freezing the Screen PEAK ENTER HOLD HOLD Peak-Peak ENTER HOLD Figure 8. Hz and V peak-peak as Scope Readings...
  • Page 31 Using the Scope and Meter Using Average, Persistence and Glitch Capture Using Average, Persistence and Glitch Average factor: Average Capture ENTER Using Average for Smoothing Waveforms Average: Normal Smart ENTER SCOPE SCOPE WAVEFORM OPTIONS Smart average Average: On... AVERAGE ENTER...
  • Page 32 ScopeMeter® Test Tool 190 Series II Users Manual Using Persistence, Envelope and Dot-Join to Display Waveforms SCOPE SCOPE WAVEFORM OPTIONS Waveform: Figure 9. Smoothing a Waveform Persistence... ENTER Digital Persistence: Short, Medium, Long Infinite ENTER Digital Persistence: Off Display: Envelope...
  • Page 33 Using the Scope and Meter Using Average, Persistence and Glitch Capture Displaying Glitches Display: Dot-join: Off SCOPE SCOPE Display: Normal WAVEFORM OPTIONS Glitch: On ENTER Figure 10. Using Persistence to Observe Dynamic Signals...
  • Page 34: Acquiring Waveforms

    ScopeMeter® Test Tool 190 Series II Users Manual Suppressing High Frequency Noise Acquiring Waveforms Glitch Off) Setting the Acquisition Speed and Waveform Memory Depth SCOPE SCOPE SCOPE SCOPE WAVEFORM OPTIONS WAVEFORM OPTIONS Glitch: Off Average: On… ENTER Acquisition: AVERAGE ENTER Average 8 Fast –...
  • Page 35 Using the Scope and Meter Acquiring Waveforms Reversing the Polarity of the Displayed Normal – Waveform INPUT A Selecting AC-Coupling INPUT A Inverted ENTER INPUT A...
  • Page 36 ScopeMeter® Test Tool 190 Series II Users Manual Variable Input Sensitivity INPUT A Variable ENTER MANUAL AUTO RANGE Note Variable input sensitivity is not available in the Mathematics functions (+ - x and Spectrum). INPUT A...
  • Page 37 Using the Scope and Meter Acquiring Waveforms Working with Noisy Waveforms Using Mathematics Functions +, -, x, XY-mode INPUT A SCOPE SCOPE INPUT A WAVEFORM OPTIONS Bandwidth: Waveform: 10kHz ENTER Mathematics... ENTER Mathematics To suppress noise without loss of bandwidth, use the average function or turn off Display Glitches.
  • Page 38 ScopeMeter® Test Tool 190 Series II Users Manual Using Mathematics Function Spectrum (FFT) + - x mode ENTER Source 1: A B C ENTER Source 2: A B C ENTER SCOPE SCOPE Waveform Options...
  • Page 39 Using the Scope and Meter Acquiring Waveforms Waveform: Mathematics... ENTER Mathematics Function: Spectrum ENTER Source : A B C ENTER Window: Auto , Hanning Hamming ENTER None...
  • Page 40 ScopeMeter® Test Tool 190 Series II Users Manual Comparing Waveforms SCOPE SCOPE Waveform Options Figure 11. Spectrum Measurement Waveform Reference… ENTER WAVEFORM REFERENCE...
  • Page 41 Using the Scope and Meter Acquiring Waveforms ENTER ENTER Recall… New… REFERENCE New…...
  • Page 42: Pass - Fail Testing

    ScopeMeter® Test Tool 190 Series II Users Manual Pass - Fail Testing Analyzing Waveforms CURSOR ZOOM REPLAY Using Cursors, Zoom and Replay Pass Fail Testing: ENTER Store “Fail” Store “Pass”...
  • Page 43: Making Automatic Meter Measurements (For Models 190-Xx4)

    Using the Scope and Meter Making Automatic Meter Measurements (for models 190-xx4) Making Automatic Meter Measurements (for models 190-xx4) READING on A ENTER 1 … 4 EADING A dc… ENTER ENTER Selecting a Meter Measurement METER METER Reading .. Figure 12. Meter Screen...
  • Page 44 ScopeMeter® Test Tool 190 Series II Users Manual Making Relative Meter Measurements METER METER RELATIVE Figure 13. Making a Relative Measurement ADJUST REFERENCE...
  • Page 45: Making Multimeter Measurements (For Models 190-Xx2)

    Using the Scope and Meter Making Multimeter Measurements (for models 190-xx2) Adjusting the reference value Making Multimeter Measurements (for models 190-xx2) Making Meter Connections ENTER Figure 14. Meter Connections...
  • Page 46 ScopeMeter® Test Tool 190 Series II Users Manual Measuring Resistance Values METER METER MEASUREMENT Figure 15. Resistor Value Readings Ohms ENTER...
  • Page 47 Using the Scope and Meter Making Multimeter Measurements (for models 190-xx2) Making a Current Measurement Figure 16. Measurement Setup Warning MEASUREMENT Carefully read the instructions about the current probe you are using. A ac CURRENT PROBE ENTER METER METER...
  • Page 48 ScopeMeter® Test Tool 190 Series II Users Manual Selecting Auto/Manual Ranges 1 mV/A MANUAL AUTO ENTER RANGE MANUAL AUTO Figure 17. Ampere Measurement Readings...
  • Page 49 Using the Scope and Meter Making Multimeter Measurements (for models 190-xx2) Making Relative Meter Measurements METER METER RELATIVE Figure 18. Making a Relative Measurement ADJUST REFERENCE...
  • Page 50 ScopeMeter® Test Tool 190 Series II Users Manual Adjusting the reference value ENTER...
  • Page 51: Using The Recorder Functions

    Chapter 2 Using The Recorder Functions About this Chapter Opening the Recorder Main Menu RECORDER Figure 19. Recorder Main Menu Trendplot Meter is only present in models 190-xx2.
  • Page 52: Plotting Measurements Over Time (Trendplot™)

    ScopeMeter® Test Tool 190 Series II Users Manual Starting a TrendPlot Function Plotting Measurements Over Time (TrendPlot™) RECORDER Note RECORDER Because the navigations for the TrendPlot Scope Trend Plot and the TrendPlot Meter are identical, only Scope TrendPlot is explained in the next sections. ENTER...
  • Page 53 Using The Recorder Functions Plotting Measurements Over Time (TrendPlot™) Note When simultaneously TrendPlotting two readings, the screen area is split into two sections of four RECORDER STOP divisions each. When simultaneously TrendPlotting three or four readings, the screen RECORDER area is split into three or four sections of two divisions each.
  • Page 54 ScopeMeter® Test Tool 190 Series II Users Manual Displaying Recorded Data Changing the Recorder Options NORMAL VIEW ALL RECORDER OPTIONS Time of Day From Start ENTER Turning Off the TrendPlot Display...
  • Page 55: Recording Scope Waveforms In Deep Memory (Scope Record)

    Using The Recorder Functions Recording Scope Waveforms In Deep Memory (Scope Record) Recording Scope Waveforms In Deep Memory (Scope Record) SCOPE RECORD Figure 21. Recording Waveforms Starting a Scope Record Function RECORDER RECORDER Scope Record Note ENTER For accurate recordings it is advised to let the instrument first warm up for five minutes.
  • Page 56 ScopeMeter® Test Tool 190 Series II Users Manual Displaying Recorded Data Using Scope Record in Single Sweep Mode Single Sweep OPTIONS… RECORDER OPTIONS VIEW ALL NORMAL Using Replay, Zoom and Cursors Mode Single Sweep ENTER...
  • Page 57 Using The Recorder Functions Recording Scope Waveforms In Deep Memory (Scope Record) Using Triggering to Start or Stop Scope Record RECORDER OPTIONS Start on trigger Stop on trigger Stop when untriggered Mode: on Trigger… ENTER on Ext. START SINGLE SWEEP ON TRIGGERING START SINGLE SWEEP ON EXT...
  • Page 58: Analyzing A Trendplot Or Scope Record

    ScopeMeter® Test Tool 190 Series II Users Manual Slope:) Level: ENTER ENTER Figure 22. Triggered Single Sweep Recording Note Analyzing a TrendPlot or Scope Record To learn more about the Single Shot trigger function, see Chapter 4 “Triggering on Waveforms”. Using Replay, Zoom and Cursors...
  • Page 59: Using Replay, Zoom And Cursors

    Chapter 3 Using Replay, Zoom and Cursors Replaying the 100 Most Recent Scope About this Chapter Screens Cursor Zoom Replay HOLD REPLAY REPLAY HOLD replay zoom cursors...
  • Page 60 ScopeMeter® Test Tool 190 Series II Users Manual Replaying Step-by-Step REPLAY REPLAY REPLAY Figure 23. Replaying a Waveform...
  • Page 61 Using Replay, Zoom and Cursors Replaying the 100 Most Recent Scope Screens Replaying Continuously Turning Off the Replay Function REPLAY Capturing 100 Intermittents Automatically REPLAY REPLAY triggered REPLAY Triggering on Waveforms...
  • Page 62: Zooming In On A Waveform

    ScopeMeter® Test Tool 190 Series II Users Manual Zooming in on a Waveform ZOOM ZOOM ZOOM ZOOM Figure 24. Zooming in a Waveform Turning Off the Zoom Function ZOOM Even when the key labels are not displayed at the bottom of the screen, you can still use the arrow keys to zoom in and out.
  • Page 63: Making Cursor Measurements

    Using Replay, Zoom and Cursors Making Cursor Measurements Note Making Cursor Measurements Even when the key labels are not displayed at the bottom of the screen, you still can use the arrow keys. This allows full control of both cursors while having full screen view.
  • Page 64 ScopeMeter® Test Tool 190 Series II Users Manual Using Vertical Cursors on a Waveform CURSOR Figure 26. Time Measurement with Cursors A B C...
  • Page 65 Using Replay, Zoom and Cursors Making Cursor Measurements Notes Using Cursors on Spectrum Measurements For mVs select probe type ‘Voltage’. For mAs select probe type ‘Current’. CURSOR For mWs select mathematical function x, and probe type ‘Voltage’ for one channel and ‘Current’...
  • Page 66 ScopeMeter® Test Tool 190 Series II Users Manual Making Rise Time Measurements CURSOR Figure 27. Risetime Measurement Note Direct access to Rise time or Fall time with cursors on is possible via the key sequence SCOPE, F2 – READING, and then selection of Rise or Fall time.
  • Page 67: Triggering On Waveforms

    Chapter 4 Triggering on Waveforms About this Chapter...
  • Page 68: Setting Trigger Level And Slope

    ScopeMeter® Test Tool 190 Series II Users Manual Setting Trigger Level and Slope AUTO MANUAL AUTO Figure 28. Screen with all Trigger Information TRIGGER TRIGGER...
  • Page 69: Using Trigger Delay Or Pre-Trigger

    Triggering on Waveforms Using Trigger Delay or Pre-trigger Using Trigger Delay or Pre-trigger MOVE Figure 29. Trigger Delay or Pre-trigger View...
  • Page 70: Automatic Trigger Options

    ScopeMeter® Test Tool 190 Series II Users Manual Automatic Trigger Options “Displaying an Unknown Signal with Connect-and-View” TRIGGER TRIGGER > 1 H Note ENTER key labels can differ depending on TRIGGER the latest trigger function used. TRIGGER OPTIONS AUTOMATIC TRIGGER ENTER...
  • Page 71: Triggering On Edges

    Triggering on Waveforms Triggering on Edges Free Run Triggering on Edges On Trigger only TRIGGER Single Shot TRIGGER TRIGGER OPTIONS Free Run Trigger Filter ENTER Trigger Filter ENTER TRIGGER ON EDGE ENTER...
  • Page 72 ScopeMeter® Test Tool 190 Series II Users Manual Triggering on Noisy Waveforms MANUAL HOLD On Trigger Trigger Filter ENTER HOLD Noise Reject HF Reject ENTER The test tool stores all single shots in the replay Noise Reject memory. Use the Replay function to look at all the stored single shots (see Chapter 3).
  • Page 73 Triggering on Waveforms Triggering on Edges N-Cycle Triggering On Trigger Single Shot Trigger Filter ENTER Trigger Filter ENTER NCycle ENTER Figure 31. N-Cycle triggering...
  • Page 74 ScopeMeter® Test Tool 190 Series II Users Manual Triggering on External Waveforms (models 190-xx2) 1.2V Ext LEVEL TRIGGER TRIGGER...
  • Page 75: Triggering On Video Signals

    Triggering on Waveforms Triggering on Video Signals Triggering on Video Signals TRIGGER TRIGGER Trigger Options Figure 32. Measuring Interlaced Video Signals Video on A interlaced… ENTER ENTER TRIGGER ON VIDEO ENTER...
  • Page 76 ScopeMeter® Test Tool 190 Series II Users Manual Triggering on Video Frames Triggering on Video Lines FIELD 1 FIELD 2 ALL LINES ALL LINES. FIELD 2...
  • Page 77: Triggering On Pulses

    Triggering on Waveforms Triggering on Pulses Triggering on Pulses Condition ENTER <t Update ENTER Detecting Narrow Pulses On Trigger ENTER TRIGGER TRIGGER TRIGGER OPTIONS ENTER...
  • Page 78 ScopeMeter® Test Tool 190 Series II Users Manual Finding Missing Pulses The test tool stores all triggered screens in the replay memory. For example, if you setup your triggering for glitches, you can capture 100 glitches with time stamps. Use the key to REPLAY look at all the stored glitches.
  • Page 79 Triggering on Waveforms Triggering on Pulses ENTER Condition: >t Update: ENTER On Trigger ENTER Figure 34. Triggering on Missing Pulses...
  • Page 80: About This Chapter

    Using Memory and PC About this Chapter Using the USB Ports ® Figure 35. Test Tool USB Connections...
  • Page 81: Saving And Recalling

    ScopeMeter® Test Tool 190 Series II Users Manual Saving and Recalling Table 1. Test Tool Internal Memory Mode Memory locations METER SCOPE SCOPE REC TRENDPLOT Notes: In persistence mode, the most recent Notes waveform will be saved, not all Saved data is stored in non-volatile Flash waveforms that build the persistence memory.
  • Page 82 Using Memory and PC Saving and Recalling In the displayed file list of stored data Saving Screens with Associated Setups the following symbols are used: SAVE SAVE SAVE - a screen image can be copied to a USB stick connected to the test tool. The USB stick connected to a PC allows you to insert the image for instance into a text document.
  • Page 83 ScopeMeter® Test Tool 190 Series II Users Manual Screen+Setup SAVE AS ENTER SAVE Editing Names ENTER HOLD...
  • Page 84: Editing Names

    Using Memory and PC Saving and Recalling All memories in use ENTER ENTER ENTER Editing names Notes The ‘record+setup’ memory locations store more than just what is visible on the screen. In TrendPlot or Scope Record mode the full EDIT NAME recording is saved.
  • Page 85 ScopeMeter® Test Tool 190 Series II Users Manual Saving Screens in .bmp Format (Print Deleting Screens with Associated Screen) Setups SAVE SAVE SAVE SAVE FILE OPTIONS DELETE ENTER ENTER...
  • Page 86 Using Memory and PC Saving and Recalling Recalling Screens with Associated Setups Recalling a Setup Configuration SAVE SAVE SAVE RECALL SAVE RECALL DATA ENTER setup ENTER ENTER HOLD ENTER...
  • Page 87 ScopeMeter® Test Tool 190 Series II Users Manual Note: Viewing Stored Screens In the VIEW mode the replay screens of a saved ‘record+setup’ cannot be viewed! Only the screen at the instant of saving can be SAVE reviewed in this way. To see all replay screens SAVE recall them from memory using the RECALL option.
  • Page 88: Using Flukeview

    Using Memory and PC Using FlukeView® COPY MOVE RENAME ENTER ENTER ENTER RENAME Copying-Moving Stored Screens and ENTER Setup Files ® Using FlukeView SAVE SAVE FILE OPTIONS...
  • Page 89: Connecting To A Computer

    FlukeView® Demo version into a fully operational version. - A complete FlukeView® version can be ordered using ordering code SW90W. For use with the Fluke Series II ScopeMeter®test tools FlukeView®ScopeMeter®release V5.1 or higher is required. - The test tool input channels are electrically isolated from the USB port.
  • Page 90 Chapter 6 Tips About this Chapter Using the Standard Accessories...
  • Page 91 ScopeMeter® Test Tool 190 Series II Users Manual Figure 37. HF Voltage Probe Connection Using Ground Spring Warning To avoid electrical shock or fire, do not Figure 38. Electronic Connections for Measurements connect the ground spring to voltages higher Using Hook Clips and Alligator Clip Grounding than 30 Vrms from earth ground.
  • Page 92: Using The Independently Floating Isolated Inputs

    Tips Using the Independently Floating Isolated Inputs Using the Independently Floating Isolated Inputs Measuring Using Independently Floating Isolated Inputs Note The input channels are electrically isolated from the USB port and from the power adapter input.
  • Page 93 ScopeMeter® Test Tool 190 Series II Users Manual Warning To avoid electrical shock, always use the insulation sleeve (Figure 1, item e) or the hook clip when using the probe reference (ground) lead. The voltage applied to the reference lead is also present on the ground ring near the probe tip as shown in Figure 40.
  • Page 94 Tips Using the Independently Floating Isolated Inputs DC BUS ANALOG INPUT DIGITAL CONTROLLER MOTION/MOTOR CONTROLLER DC BUS Figure 42. Correct connection of reference leads Figure 41. Parasitic capacitance between analog and digital reference...
  • Page 95: Using The Tilt Stand

    ScopeMeter® Test Tool 190 Series II Users Manual ANALOG INPUT DIGITAL CONTROLLER Using the Tilt Stand Figure 43. Wrong connection of reference leads Figure 44. Using the Tilt Stand Note An optional Hanging Hook, ordering code HH290, can be attached to the rear of the test tool. The hook enables you to hang the test tool at a convenient viewing position, for example a cabinet door or a separation wall.
  • Page 96: Fixing The Hangstrap

    Tips Kensington®-lock ® Kensington -lock Fixing the Hangstrap Figure 45. Fixing the Hangstrap...
  • Page 97: Suppressing Key Labels And Menu's

    ScopeMeter® Test Tool 190 Series II Users Manual Resetting the Test Tool Suppressing Key Labels and Menu’s CLEAR USER SCOPE USER...
  • Page 98: Changing The Information Language

    Tips Changing the Information Language Changing the Information Language Adjusting the Contrast and Brightness USER USER USER USER LANGUAGE SELECT Note The new contrast and brightness are stored until a new adjustment is made. FRENCH ENTER Note The languages available in your test tool may Note differ from this example.
  • Page 99: Changing Date And Time

    ScopeMeter® Test Tool 190 Series II Users Manual Changing Date and Time Month: ENTER USER Day: USER ENTER Format: USER OPTIONS ENTER ENTER DATE ADJUST Time Adjust… ENTER...
  • Page 100: Saving Battery Life

    Tips Saving Battery Life Setting the Power Down Timer Saving Battery Life USER USER USER OPTIONS BATTERY SAVE OPTIONS ENTER Note If the power adapter is connected, there is no automatic power shutdown, and the display AUTO-off function is inactive. Instrument Auto-OFF 5 Minutes ENTER...
  • Page 101 ScopeMeter® Test Tool 190 Series II Users Manual Setting the Display AUTO-off Timer USER USER USER OPTIONS BATTERY SAVE OPTIONS ENTER Display Auto-OFF 30 Seconds 5 Minutes ENTER...
  • Page 102: Changing The Auto Set Options

    Tips Changing the Auto Set Options Changing the Auto Set Options 1 Hz and up Input Coupling: ENTER AUTO MANUAL AUTO MANUAL USER USER Unchanged ENTER USER OPTIONS AUTO MANUAL Unchanged ENTER AUTO SET ADJUST ENTER Note The auto set option for the signal frequency is similar to the automatic trigger option for the signal frequency.
  • Page 103: Maintaining The Test Tool

    Chapter 7 Maintaining the Test Tool About this Chapter Cleaning the Test Tool Warning Remove the input signals before you clean the test tool. Warning Have an approved technician repair the product. Storing the Test Tool Use only specified replacement parts. Before carrying out any maintenance, carefully read the safety information at the beginning of this manual.
  • Page 104: Charging The Batteries

    ScopeMeter® Test Tool 190 Series II Users Manual Charging the Batteries Figure 46. Charging the Batteries Caution To avoid overheating of the batteries during charging, do not exceed the allowable ambient temperature given in the specifications. Note No damage will occur if the power adapter is connected for long periods, e.g., during the weekend.
  • Page 105: Replacing The Battery Pack

    Maintaining the Test Tool Replacing the Battery Pack Replacing the Battery Pack Warning Use only the Fluke BP290 (not recommended for 190-xx4) or BP291 for replacement! Figure 47. Unlocking the Battery Cover...
  • Page 106 ScopeMeter® Test Tool 190 Series II Users Manual Figure 48. Removing the Battery Cover Figure 49. Removing the Battery...
  • Page 107: Calibrating The Voltage Probes

    Maintaining the Test Tool Calibrating the Voltage Probes Calibrating the Voltage Probes PROBE ON A PROBE ON A Figure 50. Adjusting Voltage Probes Probe Type: Voltage Note Attenuation: 10:1 ENTER it is necessary to connect both the hook clip and the zero reference contact.
  • Page 108 ScopeMeter® Test Tool 190 Series II Users Manual Note When using 100:1 voltage probes, choose 100:1 attenuation to perform an adjustment.
  • Page 109: Displaying Version And Calibration Information

    Maintaining the Test Tool Displaying Version and Calibration Information Displaying Version and Calibration Displaying Battery Information Information USER USER BATTERY INFORMATION & VERSION CALIBRATION...
  • Page 110: Parts And Accessories

    ScopeMeter® Test Tool 190 Series II Users Manual Parts and Accessories Replacement Parts Item Ordering Code * UL listing applies to BC190/808 and BC190/820 with UL listed line plug adapter for North America. The 230 V rating of the BC190/808 and BC190/820 are not for use in North America.
  • Page 111 Maintaining the Test Tool Parts and Accessories Replacement Parts (continued) See Figure 1 on page 2 for item reference. See the VPS410-II instruction sheet for voltage/CAT ratings.
  • Page 112 ScopeMeter® Test Tool 190 Series II Users Manual Replacement Parts (continued) See Figure 1 on page 2 for item reference. See the VPS410 instruction sheet for voltage/CAT ratings.
  • Page 113 Maintaining the Test Tool Parts and Accessories Optional Accessories Item Ordering Code...
  • Page 114 ScopeMeter® Test Tool 190 Series II Users Manual Optional accessories (continued)
  • Page 115 Maintaining the Test Tool Parts and Accessories Optional accessories (continued)
  • Page 116: Troubleshooting

    ScopeMeter® Test Tool 190 Series II Users Manual Troubleshooting The Test Tool Shuts Down After a Short Time The Test Tool Cannot Be Turned Off ® FlukeView Does Not Recognize The Test Tool The Screen Remains Black USER...
  • Page 117 Maintaining the Test Tool Troubleshooting Battery Operated Fluke Accessories Do Not Function...
  • Page 118 Chapter 8 Specifications Safety Characteristics Introduction Performance Characteristics Environmental Data...
  • Page 119 ScopeMeter® Test Tool 190 Series II Users Manual Oscilloscope Isolated Inputs A,B, C and D (Vertical) Horizontal...
  • Page 120 Specifications Oscilloscope Table 2. Record Length (all models, Samples/points per input) Mode Glitch Detect On Glitch Detect Off Max. Samplerate...
  • Page 121 ScopeMeter® Test Tool 190 Series II Users Manual Trigger and Delay Edge Trigger Automatic Connect-and-View Trigger Isolated External Trigger (190-xx2)
  • Page 122 Specifications Oscilloscope Video Trigger Continuous Auto Set Pulse Width Trigger Automatic Capturing Scope Screens For viewing screens, see Replay function.
  • Page 123: Automatic Scope Measurements

    ScopeMeter® Test Tool 190 Series II Users Manual Automatic Scope Measurements AC Voltage (VAC) General DC Voltage (VDC)
  • Page 124 Specifications Automatic Scope Measurements AC+DC Voltage (True RMS)
  • Page 125 ScopeMeter® Test Tool 190 Series II Users Manual Amperes (AMP) With Optional Current Probe or Current Shunt Duty Cycle (DUTY) Peak Pulse Width (PULSE) GLITCH Vpwm Frequency (Hz)
  • Page 126 Specifications Automatic Scope Measurements V/Hz Phase (A and B, C and D) Note AC motors are designed for use with a rotating Temperature (TEMP) magnetic field of constant strength. This strength With Optional Temperature Probe ( F not for Japan) depends on the applied vottage (Vpwm) divided by the fundamental frequency of the appied voltage (Hz).
  • Page 127 ScopeMeter® Test Tool 190 Series II Users Manual Meter Measurements for Fluke 190-xx4 Meter Measurements for Fluke 190-xx2 Meter Input (Banana Jacks) Meter Functions General...
  • Page 128 Specifications Meter Measurements for Fluke 190-xx2 Temperature (TEMP) Ohms ( ) With Optional Temperature Probe DC Voltage (VDC) Continuity (CONT) AC Voltage (VAC) Diode...
  • Page 129 ScopeMeter® Test Tool 190 Series II Users Manual AC+DC Voltage (True RMS) Recorder TrendPlot (Meter or Scope) Amperes (AMP) With Optional Current Probe or Current Shunt Scope Record...
  • Page 130 Specifications Zoom, Replay and Cursors Cursor Measurements Zoom, Replay and Cursors Zoom Replay...
  • Page 131 ScopeMeter® Test Tool 190 Series II Users Manual Miscellaneous Display Power Probe Calibration...
  • Page 132 Specifications Miscellaneous Internal Memory Interface Ports External Memory Mechanical...
  • Page 133 ScopeMeter® Test Tool 190 Series II Users Manual Environmental Standards...
  • Page 134 Specifications Safety Max. Floating Voltage FLUKE 190-xxx (test tool or test tool + VPS410) Safety FLUKE 190-xxx + VPS510 Max. Input Voltages Voltage ratings are given as “working voltage”. They should be read as Vac-rms (50-60 Hz) for AC sinewave...
  • Page 135 ScopeMeter® Test Tool 190 Series II Users Manual CAT III 1000 CAT IV 0.01 0.02 0.05 0.1 0.2 0.5 50 100 200 0.01 0.02 0.05 0.1 0.2 0.5 50 100 Figure 52. Safe Handling: Max. Voltage Between Figure 51. Max. Input Voltage vs. Frequency Scope References, and Between Scope References and earth ground.
  • Page 136: 10:1 Probe Vps410

    Specifications 10:1 Probe VPS410 10:1 Probe VPS410 Accuracy For further probe specifications see the instruction sheet supplied with the VPS410 probe set.
  • Page 137 ScopeMeter® Test Tool 190 Series II Users Manual Electromagnetic Immunity Scope Mode (10 ms/div: Waveform disturbance with VPS410 voltage probe shorted. (Table 3) Table 3. (E = 3V/m) Frequency No Disturbance Disturbance < 10% of full scale Disturbance > 10% of full scale...
  • Page 138 Appendices Appendix Title Page Installing USB Drivers.................... A-1 Battery Pack MSDS ....................B-1...
  • Page 139: Appendix A Installing Usb Drivers

    Appendix A Installing USB Drivers Introduction Note The Fluke 190 Series II instrument requires two drivers to be loaded in sequence. it requires installation of the Fluke 190 ® ScopeMeter USB driver it requires installation of the Fluke USB Serial port Both of these drivers need to be installed to be ®...
  • Page 140: Installing The Usb Drivers

    ScopeMeter® Test Tool 190 Series II Users Manual Installing the USB Drivers...
  • Page 141 Appendices Installing USB Drivers...
  • Page 142 ScopeMeter® Test Tool 190 Series II Users Manual...
  • Page 143 Appendices Installing USB Drivers...
  • Page 144 In this situation the COM port number can be changed manually. To manually assign a different COM port number right click on ‘Fluke USB Serial Port COM(5)’ and select properties. From the Properties menu, select the Port Settings tab, and click ‘Advanced…’ to change the port number.
  • Page 145 Appendices Battery Pack MSDS Appendix B Battery Pack MSDS Li-ion Battery Pack...
  • Page 146 Table of Contents Chapter Title Page...
  • Page 147 Fluke-062, -102, -104, -202, -204, -502, -504 Service Manual...
  • Page 148 Contents (continued)
  • Page 149: List Of Tables

    List of Tables Table Title Page...
  • Page 150: List Of Figures

    List of Figures Figure Title Page...
  • Page 151: Safety Instructions

    Chapter 1 Safety Instructions Title Page...
  • Page 152: Safety Precautions

    Safety Instructions Introduction Introduction Warning To prevent possible electrical shock, fire, or personal injury, do not service the Test Tool unless you are qualified to do so. Service described in this manual is to be done only by qualified service personnel. Safety Precautions Caution and Warning Statements Warning...
  • Page 153 Fluke-062, -102, -104, -202, -204, -502, -504 Service Manual Symbols Table 1-1. Symbols Symbol Description...
  • Page 154 42 V peak (30 Vrms) or 60 V dc: Use only insulated voltage probes, test leads and adapters supplied with the product, or indicated by Fluke as suitable for the Fluke 190 Series II ScopeMeter® Test Tool series.
  • Page 155 Fluke-062, -102, -104, -202, -204, -502, -504 Service Manual Use the product only as specified, or the protection supplied by the product can be compromised. Carefully read all instructions. Do not use the product if it operates incorrectly. Do not use the product or its accessories in case of any damage.
  • Page 156: Li-Ion Battery Pack

    Safety Instructions Li-ion Battery Pack Li-ion Battery Pack Safe Storage of Battery Pack Warning To prevent electrical shock or fire: Do not store battery packs near heat or fire. Do not store in sunlight. Do not remove a battery pack from its original packaging until ready to use.
  • Page 157 Warning To prevent electrical shock or fire: The battery pack needs to be charged before use. Use only Fluke approved power adapters to charge the battery pack. Refer to Fluke’s safety instructions and Users Manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use.
  • Page 158 Safety Instructions Li-ion Battery Pack Safe Transport of Battery Pack Safe Disposal of Battery Pack...
  • Page 159: Specifications

    Chapter 2 Specifications Title Page...
  • Page 160 Specifications Introduction Introduction Oscilloscope Isolated Inputs A, B, C and D (Vertical)
  • Page 161 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Horizontal Record Length (all models, Samples/points per input) Mode Glitch Detect On Glitch Detect Off Max. Sample Rate Trigger and Delay Automatic Connect-and-View Trigger...
  • Page 162 Specifications Automatic Scope Measurements Edge Trigger Isolated External Trigger (190-xx2) Video Trigger Pulse Width Trigger Continuous Auto Set Automatic Capturing Scope Screens...
  • Page 163 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Automatic Scope Measurements General DC Voltage (VDC) AC Voltage (VAC)
  • Page 164 Specifications Automatic Scope Measurements AC+DC Voltage (True RMS) Amperes (AMP) With Optional Current Probe or Current Shunt...
  • Page 165: Frequency (Hz)

    Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Peak Frequency (Hz) Duty Cycle (DUTY) Pulse Width (PULSE) GLITCH Vpwm V/Hz Note AC motors are designed for use with a rotating magnetic field of constant strength. This strength depends on the applied voltage (Vpwm) divided by the fundamental frequency of the applied voltage (Hz).
  • Page 166: Meter Measurements For Fluke 190-Xx4

    Specifications Meter Measurements for Fluke 190-xx4 Power (A and B, C and D) Phase (A and B, C and D) Temperature (TEMP) With Optional Temperature Probe ( F not for Japan) Decibel (dB) Meter Measurements for Fluke 190-xx4 Meter Measurements for Fluke 190-xx2...
  • Page 167 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Meter Input (Banana Jacks) Meter Functions General Ohms ( ) Continuity (CONT) Diode Temperature (TEMP) With Optional Temperature Probe...
  • Page 168 Specifications Recorder DC Voltage (VDC) AC Voltage (VAC) For higher frequencies the frequency roll-off of the Meter input starts affecting accuracy. AC+DC Voltage (True RMS) Amperes (AMP) With Optional Current Probe or Current Shunt Recorder TrendPlot (Meter or Scope)
  • Page 169: Zoom, Replay And Cursors

    Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Scope Record Zoom, Replay and Cursors Zoom Replay Cursor Measurements Miscellaneous Display...
  • Page 170: Internal Memory

    Specifications Miscellaneous Power Probe Calibration Internal Memory Each memory can contain 2/4 waveforms plus corresponding setups Each memory can contain one screen image External Memory Mechanical...
  • Page 171 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Interface Ports Environmental Certifications Safety Max. Input Voltages...
  • Page 172 Specifications Safety Max. Floating Voltage 0.01 0.02 0.05 0.1 0.2 0.5 50 100 Max. Input Voltage vs. Frequency CAT III 1000 CAT IV 0.01 0.02 0.05 0.1 0.2 0.5 50 100 200 Safe Handling: Max. Voltage between Scope References, and between Scope References and Earth Ground...
  • Page 173: Electromagnetic Immunity

    Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual 10:1 Probe VPS410 Accuracy Electromagnetic Immunity (E = 3V/m) Disturbance <10 % of Disturbance >10 % of Frequency No Disturbance full scale full scale...
  • Page 174: Parts List

    Chapter 3 Parts List Title Page...
  • Page 175 Parts List Introduction Introduction Caution Electrical components, and in particular active components such as ICs, transistors, and diodes, may be damaged by static discharge. Only qualified personnel at a static-free workstation should handle and service static-sensitive components and assemblies.
  • Page 176 Fluke 190-062, -102, -104, -202, -204,-502, -504 Service Manual Final Assembly Parts Caution The Test Tool contains a Li-ion battery. Do not mix with the solid waste stream. Spent batteries should be disposed of by a qualified recycler or hazardous materials handler.
  • Page 177 Parts List Final Assembly Parts Table 3-1. Final Assembly Parts and Kits (cont.) Part or Kit Ordering Code Consists of Following Parts Figure/Item nr...
  • Page 178 Fluke 190-062, -102, -104, -202, -204,-502, -504 Service Manual Figure 3-1. Open Case and Screws...
  • Page 179 Parts List Final Assembly Parts Figure 3-2. Screening Plate Removed and Screws...
  • Page 180: Accessory List

    Fluke 190-062, -102, -104, -202, -204,-502, -504 Service Manual Figure 3-3. PCA Removed from Chassis, Bottom Side Visible Accessory List Maintaining the Test Tool Fluke ScopeMeter 190 Series II Users Manual...
  • Page 181: Performance Verification

    Chapter 4 Performance Verification Title Page...
  • Page 182 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual...
  • Page 183 Performance Verification Introduction Introduction Warning To prevent possible electrical shock, fire, or personal injury, do not service the Test Tool unless you are qualified to do so. Service described in this manual is to be done only by qualified service personnel. Table 4-1.
  • Page 184: General Instructions

    Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Equipment Requirements for Verification TRM50 General Instructions Operation Instructions Reset the Test Tool USER beeps twice USER...
  • Page 185: Menu Navigation

    Performance Verification Operation Instructions Menu Navigation SCOPE READING 1 V ac+dc on A ENTER Figure 4-1. Menu Item Selection Standard Test Tool Setup ENTER Note The setup steps for channel C and D are only for the models 190-104, 190-204, and 190-504. INPUT B ON...
  • Page 186 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual PROBE B Probe Type: Voltage | Attenuation: 1:1 INPUT C ON PROBE C Probe Type: Voltage | Attenuation: 1:1 INPUT D ON PROBE D Probe Type: Voltage | Attenuation: 1:1...
  • Page 187: Display And Backlight Test

    Performance Verification Display and Backlight Test Display and Backlight Test CLEAR USER CLEAR Contrast (CL 0100): Figure 4-2. Display Test Pattern Contrast (CL 0100): Contrast (CL 0110):...
  • Page 188 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Contrast (CL 0110): Contrast (CL 0120): Scope Input A, B, C, D Tests Input A, B, C, D Vertical Accuracy Test Warning To prevent possible electrical shock, fire, or personal injury, ensure that the calibrator is in standby mode before making any connection between the calibrator and the Test Tool.
  • Page 189 50 OHM TERMINATION METER 2 CHANN. + METER 4 CHANNELS NORMAL SCOPE PM9081 FLUKE 5502A CALIBRATOR Figure 4-3. Test Tool Inputs A, B to 5502A Normal Output SAVE Standard Test Tool Setup ENTER SETUP ENTER Attenuator: Normal | Bandwidth: 10 kHz...
  • Page 190 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual TRIGGER Table 4-2. Vertical Accuracy Verification Points Initial 5502A Setting Allowable 5502A output for trace amplitude of Range 6 divisions V ac, sine, 50 Hz...
  • Page 191 PM9092 CONNECT TO CHANNEL A, B, C, D IN PARALLEL PM9093 50 OHM TERMINATION METER 2 CHANN. + METER 4 CHANNELS NORMAL SCOPE PM9081 FLUKE 5502A CALIBRATOR Figure 4-4. Test Tool Inputs A, B, C, D to 5502A Normal Output...
  • Page 192 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual SAVE Standard Test Tool Setup ENTER SETUP ENTER Attenuator: Normal | Bandwidth: 10 kHz 20 kHz Attenuator: Normal | Bandwidth: 10 kHz 20 kHz Attenuator: Normal | Bandwidth: 10 kHz...
  • Page 193 Performance Verification Scope Input A, B, C, D Tests Table 4-3. Volts DC Measurement Verification Points Range 5502A Output V dc 2 Channel Input Reading 4 Channel Input Reading...
  • Page 194 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input A, B, C, D AC Voltage Accuracy Test (LF) Note The test steps for channel C and D are only for the models 190-104, 190-204, and 190-504. Input A AC Voltage Accuracy (HF) &...
  • Page 195 Performance Verification Scope Input A, B, C, D Tests TIME RANGE RANGE A, B, C, Table 4-4. Volts AC Measurement Verification Points 5502A output Range 2 Ch Input Reading 4 Ch Input Reading V ac Frequency (Select 10 ms/div) 60 Hz Note Set input A, B, Bandwidth 10 kHz or 20 kHz to prevent OL due to calibrator noise, see step 2.
  • Page 196 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input A, B, C, D AC-Coupled Lower Frequency Test Note The test steps for channel C and D are only for the models 190-104, 190-204, and 190-504. SAVE Standard Test Tool Setup...
  • Page 197 Performance Verification Scope Input A, B, C, D Tests Input A, B, C, D Peak Measurements Test Warning To prevent possible electrical shock, fire, or personal injury, ensure that the calibrator is in standby mode before making any connection between the calibrator and the Test Tool. Dangerous voltages are present on the calibration source and connection cables during these steps.
  • Page 198 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input A, B, C, D Frequency Measurement Accuracy Test Note The test steps for channel C and D are only for the models 190-104, 190-204, and 190-504. PM9091 PM9092 PM9092...
  • Page 199 Performance Verification Scope Input A, B, C, D Tests Table 4-7. Input A, B, C, D Frequency Measurement Accuracy Test Input A, B Model Time base 5502A-SC... MODE Voltage Frequency Reading Note Because Duty Cycle and Pulse Width measurements are based on the same principles as Frequency measurements, these measurement functions will not be verified separately.
  • Page 200: Time Base Test

    Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual A, B, C, Table 4-8. Phase Measurement Verification Points Input A, B, C, D Time base 5502A-SC... MODE Frequency Voltage Reading … Deg Time Base Test PM9091 PM9091 50 OHM e.g. PM9585 or 50 OHM e.g.
  • Page 201 Performance Verification Scope Input A, B, C, D Tests RANGE RANGE TIME MOVE | 8.00 ms TIME MOVE Figure 4-7. Time Base Verification Input A Trigger Sensitivity Test RANGE RANGE TIME...
  • Page 202 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual TRIGGER Table 4-9. Input A Trigger Sensitivity Test Points 5502A SC... MODE levsine UUT Model UUT Time base UUT Trigger Amplitude Initial Input Voltage Frequency...
  • Page 203 Performance Verification Scope Input A, B, C, D Tests Input A AC Voltage Accuracy (HF) and Bandwidth Test SAVE Standard Test Tool Setup ENTER SETUP ENTER SCOPE on A | V ac MANUAL AUTO AUTO RANGE RANGE AUTO ½ AUTO MOVE Table 4-10.
  • Page 204 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input B Trigger Sensitivity Test PM9091 PM9091 50 OHM e.g. PM9585 or 50 OHM e.g. PM9585 or TRM50 TRM50 For 190-502 and -504 use only TRM50! USE 50 OHM TERMINATION METER 2 CHANN.
  • Page 205 Performance Verification Scope Input A, B, C, D Tests Table 4-11. Input B Trigger Sensitivity Test Points 5502A SC... MODE levsin Model Time base Trigger Amplitude Initial Input Voltage Frequency Input B AC Voltage Accuracy (HF) and Bandwidth Test SAVE Standard Test Tool Setup ENTER SETUP...
  • Page 206 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Table 4-12. HF AC Voltage Verification Points 5502A SC... MODE levsine Model Reading B Voltage Frequency Input C Trigger Sensitivity Test Note The test steps for channel C are only for the models 190-104, 190-204, and 190-504.
  • Page 207 Performance Verification Scope Input A, B, C, D Tests MOVE TRIGGER RANGE RANGE TIME TRIGGER Table 4-13. Input C Trigger Sensitivity Test Points 5500A SC... MODE levsin Model Time base Trigger Amplitude Initial Input Voltage Frequency Input C AC Voltage Accuracy (HF) and Bandwidth Test Note The test steps for channel C are only for the models 190-104, 190-204, and 190-504.
  • Page 208 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual SAVE Standard Test Tool Setup ENTER SETUP ENTER SCOPE READINGS 3 on C | V ac MANUAL AUTO AUTO RANGE RANGE MOVE TRIGGER Table 4-14. HF AC Voltage Verification Points 5500A SC...
  • Page 209 Scope Input A, B, C, D Tests PM9091 PM9585 - 50 OHM For 190-502 and -504 USE 50 OHM use only TRM50! TERMINATION 4 CHANNELS NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 4-10. 5502A Scope Output to Test Tool Input D MOVE TRIGGER RANGE RANGE TIME TRIGGER...
  • Page 210 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Table 4-15. Input D Trigger Sensitivity Test Points 5500A SC...MODE levsin Model Time base Trigger Amplitude Initial Input Voltage Frequency Input D AC Voltage Accuracy (HF) and Bandwidth Test Note The test steps for channel C are only for the models 190-104, 190-204, and 190-504.
  • Page 211 USE 50 OHM use TRM50! TERMINATION METER 2 CHANN. + METER 4 CHANNELS NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 4-11. Test Tool Input A to TV Signal Generator TRIGGER VIDEO on A... Polarity: POSITIVE | PAL NTSC PALplus SECAM ALL LINES...
  • Page 212 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual RANGE RANGE TIME...
  • Page 213 Performance Verification Scope Input A, B, C, D Tests VIDEO on A... Polarity: NEGATIVE | PAL NTSC PALplus SECAM Figure 4-12. SC600 Marker Pulse...
  • Page 214 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual External Trigger Level Test Note The external trigger level test is for the models 190-062, 190-102, 190-202, and 190-502. USE STACKABLE TEST LEADS AS SUPPLIED WITH CALIBRATOR METER 2 CHANN. + METER...
  • Page 215 Performance Verification Meter Tests Meter Tests Note The following tests are for the models 190-062, 190-102, 190-202, and 190-502. Meter DC Voltage Accuracy Test Warning To prevent possible electrical shock, fire, or personal injury, ensure that the calibrator is in standby mode before making any connection between the calibrator and the Test Tool.
  • Page 216 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Table 4-17. Meter Volts dc Measurement Verification Points Range 5502A output V dc Meter Reading Meter AC Voltage Accuracy and Frequency Response Test Warning To prevent possible electrical shock, fire, or personal injury, ensure that the calibrator is in standby mode before making any connection between the calibrator and the Test Tool.
  • Page 217 Performance Verification Meter Tests Table 4-18. Meter Volts AC Measurement Verification Points Range 5502A output V ac Frequency Meter Reading Continuity Function Test METER Continuity. Diode Test Function Test METER Diode...
  • Page 218 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual 0.4 V 0.6 V 1 V dc. 0.975 V 1.025 V Ohms Measurements Test USE STACKABLE TEST LEADS AS SUPPLIED WITH CALIBRATOR METER 2 CHANN. + METER NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 4-14.
  • Page 219: Probe Calibration Generator Test

    Performance Verification Meter Tests Table 4-19. Resistance Measurement Verification Points 5502A output Meter Reading (COMP 2 wire) Probe Calibration Generator Test...
  • Page 220 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Figure 4-15. Probe Calibration...
  • Page 221: Calibration Adjustment

    Chapter 5 Calibration Adjustment Title Page...
  • Page 222 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual...
  • Page 223 Calibration Adjustment Introduction Introduction Final Calibration for V11.10 and later Final Calibration for V11.10 and later...
  • Page 224 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual General Calibration Number and Date USER Figure 5-1. Version and Calibration Data (example) Note The calibration date and calibration number do not change if you do only the Contrast Calibration Adjustment and/or the Probe Calibration.
  • Page 225 Calibration Adjustment Calibration Procedure Steps Equipment Required For Calibration Calibration Procedure Steps Final Calibration for V11.10 and Later Final Calibration V09.00, V10.00 or (Firmware: V10.9 and Lower) V10.4x Final Calibration (Firmware: V10.9 And Lower) V11.10 Final Calibration For V11.10 and later...
  • Page 226 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual How to Start the Calibration USER OPTIONS DATE ADJUST ENTER DATE ADJUST ENTER CLEAR USER USER CAL MODE WarmingUp (CL 0200) :IDLE (valid) :IDLE (invalid) Calibration Procedure Steps...
  • Page 227 Calibration Adjustment Contrast Calibration Adjustment Explanation of Display Messages and Key Functions CLEAR Cal Name (CL nnnn) :Status (…) Cal Name WarmingUp (CL nnnn) Status (…) IDLE (valid) IDLE (invalid) BUSY aaa% bbb% READY Error :xxxx Warming-Up 2, Warm-Up Final, and ADC Timing PREVIOUS NEXT...
  • Page 228 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Contrast (CL 0100). CALIBRATE) Contrast (CL 0110): CALIBRATE) Contrast (CL 0120): CALIBRATE) Save Calibration Data and Exit Figure 5-2. Display Test Pattern...
  • Page 229 Calibration Adjustment Warming-Up and Pre-Calibration Warming-Up and Pre-Calibration WarmingUp (CL 0200):IDLE (valid) (invalid). WarmingUp (CL 0200) WarmingUp (CL 0200) :BUSY 00:29:59 WarmingUp1 (CL 0200) :BUSY 00:09:59 End Precal: READY NEXT) Final Calibration Final Calibration Error Messages 1000...
  • Page 230 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Final Calibration For v11.10 and later CL 0799: READY Note You must always start the Final Calibration at the first step. See the section. Starting at another step will make the calibration invalid.
  • Page 231 Input A LF-HF Gain PM9091 TRM 50 - 50 OHM For 190-502 and -504 USE 50 OHM use only TRM50! TERMINATION METER 2 CHANN. + METER NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 5-3. 5502A SCOPE Output to Test Tool Input A...
  • Page 232 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input A LF-HF Gain :READY Input B LF-HF Gain...
  • Page 233 Calibration Adjustment Final Calibration For v11.10 and later Table 5-1. Input A LF-HF Gain Calibration Points Cal step UUT input signal 5502A Setting...
  • Page 234 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input B LF-HF Gain :READY Input C LF-HF Gain PM9091 PM9091 50 OHM e.g. PM9585 or 50 OHM e.g. PM9585 or TRM50 TRM50 For 190-502 and -504 use only TRM50!
  • Page 235 Calibration Adjustment Final Calibration For v11.10 and later Table 5-2. Input B LF-HF Gain Calibration Points Cal step UUT input signal 5502A Setting...
  • Page 236 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input C LF-HF Gain Input C LF-HF Gain Input D LF-HF Gain Input AB Position PM9091 PM9585 - 50 OHM For 190-502 and -504 use only TRM50! USE 50 OHM...
  • Page 237 Calibration Adjustment Final Calibration For v11.10 and later Table 5-3. Input C LF-HF Gain Calibration Points Cal step UUT input signal 5502A Setting...
  • Page 238 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input D LF-HF Gain :READY Input AB Position PM9091 PM9585 - 50 OHM For 190-502 and -504 USE 50 OHM use only TRM50! TERMINATION 4 CHANNELS NORMAL SCOPE FLUKE 5502A CALIBRATOR...
  • Page 239 Calibration Adjustment Final Calibration For v11.10 and later Table 5-4. Input D LF-HF Gain Calibration Points Cal step UUT input signal 5502A Setting...
  • Page 240 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input AB Position CL 0637 :READY Input AB LF-HF Gain and Position Input AB LF-HF Gain and Position PM9091 PM9092 PM9092 CONNECT TO CHANNEL A, B, C, D IN PARALLEL...
  • Page 241 Calibration Adjustment Final Calibration For v11.10 and later Input Pos ABCD (AB) Calibration Table 5-5. Input AB Gain and Position Calibration Points Cal step UUT input value (5502A SCOPE, MODE volt, SCOPE Z 1 M , 1 kHz)
  • Page 242 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input Pos ABCD (AB) Calibration :READY Input ABCD (AB) NoiseF FBW Calibration Input ABCD (AB) Noise F FBW Calibration :READY Input AB Volt Gain Input AB Volt Gain Warning To prevent possible electrical shock, fire, or personal injury, ensure that the calibrator is in standby mode before making any connection between the calibrator and the Test Tool.
  • Page 243 Calibration Adjustment Final Calibration For v11.10 and later :READY Multimeter (DMM) Meter Zero Table 5-6. Input ABCD Gain Calibration Points Cal step UUT input value (5502A NORMAL, dc output)
  • Page 244 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Multimeter Meter Zero Note The adjustment steps for the meter section are only for the models 190-062, 190-102, and 190-202. For 4-Channel ScopeMeters, go to section. short as possible :READY...
  • Page 245 USE STACKABLE TEST LEADS AS SUPPLIED WITH CALIBRATOR METER 2 CHANN. + METER NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 5-9. 5502A NORMAL Output to Test Tool Banana Input :READY Multimeter (DMM) Ohm Gain Table 5-7. DMM Volt Gain Calibration Points Cal step...
  • Page 246 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Multimeter Ohm Gain Note The adjustment steps for the meter section are only for the models 190-062, 190-102, 190-202, and 190-502. USE STACKABLE TEST LEADS AS SUPPLIED WITH CALIBRATOR METER 2 CHANN.
  • Page 247 Calibration Adjustment Final Calibration For v11.10 and later :READY Save Calibration Data and Exit Table 5-8. Ohm Gain Calibration Points Cal Step UUT input Value (5500 NORMAL)
  • Page 248: Error Messages

    Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Final Calibration (Firmware: V10.9 and Lower) USER – VERSION & CAL …. V09.00, V10.00 or V10.4x Final V11.10 Calibration (Firmware: V10.9 and Lower) Final Calibration For V11.10 and later Note You must always start the Final Calibration at the first step.
  • Page 249 50 OHM e.g. PM9585 or TRM50 TRM50 For 190-502 and -504 only USE 50 OHM use TRM50! TERMINATION METER 2 CHANN. + METER 4 CHANNELS NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 5-11. 5502A SCOPE Output to Test Tool Input A Input A LF-HF Gain...
  • Page 250 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual :READY Input B LF-HF Gain Table 5-9. Input A LF-HF Gain Calibration Points Cal step UUT input signal 5502A Setting Table 5-10. Input A LF-HF Gain Calibration Points (Extra steps for 190-104/204, V10.4x firmware *)
  • Page 251 TRM50 TRM50 For 190-502 and -504 use only TRM50! USE 50 OHM TERMINATION METER 2 CHANN. + METER 4 CHANNELS NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 5-12. 5502A SCOPE Output to Test Tool Input B :READY Input C LF-HF Gain...
  • Page 252 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Table 5-11. Input B LF-HF Gain Calibration Points Cal step UUT input signal 5502A Setting Table 5-12. Input B LF-HF Gain Calibration Points (Extra steps for 190-104/204, V10.4x firmware *)
  • Page 253 190-204. PM9091 PM9585 - 50 OHM For 190-502 and -504 use only TRM50! USE 50 OHM TERMINATION 4 CHANNELS NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 5-13. 5502A SCOPE Output to Test Tool Input C :READY Input D LF-HF Gain...
  • Page 254 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Table 5-13. Input C LF-HF Gain Calibration Points Cal step UUT input signal 5502A Setting Table 5-14. Input C LF-HF Gain Calibration Points (Extra steps for 190-104/204, V10.4x firmware *)
  • Page 255 190-204. PM9091 PM9585 - 50 OHM For 190-502 and -504 USE 50 OHM use only TRM50! TERMINATION 4 CHANNELS NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 5-14. 5502A SCOPE Output to Test Tool Input D :READY Input ABCD (AB) LF-HF Gain...
  • Page 256 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Table 5-15. Input D LF-HF Gain Calibration Points Cal step UUT input signal 5502A Setting Table 5-16. Input D LF-HF Gain Calibration Points (Extra steps for 190-104/204, V10.4x firmware *)
  • Page 257 Calibration Adjustment Final Calibration (Firmware: V10.9 and Lower) Warning To prevent possible electrical shock, fire, or personal injury, ensure that the calibrator is in standby mode before making any connection between the calibrator and the Test Tool. Dangerous voltages are present on the calibration source and connection cables during these steps.
  • Page 258 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Input ABCD (AB) Position CL 0619. :READY Input ABCD (AB) Volt Gain Input ABCD (AB) Volt Gain Warning To prevent possible electrical shock, fire, or personal injury, ensure that the calibrator is in standby mode before making any connection between the calibrator and the Test Tool.
  • Page 259 Calibration Adjustment Final Calibration (Firmware: V10.9 and Lower) Input ABCD (AB) Zero Table 5-18. Input ABCD Gain Calibration Points Cal step UUT input value (5502A NORMAL) Input ABCD (AB) Zero :READY Multimeter (DMM) Volt Gain Save Calibration Data and Exit...
  • Page 260 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Multimeter Volt Gain Warning To prevent possible electrical shock, fire, or personal injury, ensure that the calibrator is in standby mode before making any connection between the calibrator and the Test Tool.
  • Page 261 Calibration Adjustment Final Calibration (Firmware: V10.9 and Lower) Table 5-19. DMM Gain Calibration Points Cal step UUT input value (5502A NORMAL) Multimeter Numeric Zero Note The adjustment steps for the meter section are only for the models 190-062, 190-102, and 190-202. :READY Multimeter (DMM) Ohm Gain Multimeter Ohm Gain...
  • Page 262 Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual USE STACKABLE TEST LEADS AS SUPPLIED WITH CALIBRATOR METER 2 CHANN. + METER NORMAL SCOPE FLUKE 5502A CALIBRATOR Figure 5-18. Four-wire Ohms Calibration Connections :READY Save Calibration Data and Exit Table 5-20.
  • Page 263 Calibration Adjustment Save Calibration Data and Exit Save Calibration Data and Exit EXIT) Calibration data valid. Save data and exit maintenance mode? Note Calibration data valid indicates that the calibration adjustment procedure is performed correctly. It does not necessarily mean that the Test Tool meets the specifications listed in Chapter 2.
  • Page 264: Probe Calibration

    Fluke 190-062, -102, -104, -202, -204, -502, -504 Service Manual Probe Calibration Figure 5-19. 10:1 Probe Calibration Connection Probe on A Voltage | Attenuation: 10:1 ENTER - PROBE A. - PROBE CAL...
  • Page 265 Calibration Adjustment Probe Calibration Figure 5-20. 10:1 Probe Calibration...
  • Page 266 Chapter 6 Disassembly Title Page...
  • Page 267: Disassembly And Reassembly Procedures

    Disassembly Introduction Introduction Warning To prevent electric shock, disconnect test leads, probes and power supply from any live source and from the Test Tool itself. Always remove the battery pack before completely disassembling the Test Tool. Only qualified personnel using customary precautions against electric shock should work on a disassembled unit with power on.
  • Page 268 Fluke 190-062, -102, -104, -202, -204,-502, -504 Service Manual Open the Test Tool, Remove the Battery Pack Note Do not short circuit the battery contacts. Do not open or damage the battery housing. Removing the Tilt Stand, Hang Strap, and Side Strap...
  • Page 269 Disassembly Disassembly and Reassembly Procedures How to Access the Top Side of PCA How to Access the Bottom Side of PCA Figure 6-1. Flat Cable Connector...
  • Page 270: Disassembly Steps

    Fluke 190-062, -102, -104, -202, -204,-502, -504 Service Manual Note Before you attach the PCA again to the lower chassis plate, it is advised to place the isolation foils around the channels. Access to LCD, Keypad Foil, and Keypad Note When installing the LCD-module into the top case, take care that no dust or dirt is present between module and the window/decal.
  • Page 271 Disassembly Disassembly and Reassembly Procedures Figure 6-2. Opened Case and Screws...
  • Page 272 Fluke 190-062, -102, -104, -202, -204,-502, -504 Service Manual Figure 6-3. Screening Plate Removed and Screws...
  • Page 273 Disassembly Disassembly and Reassembly Procedures Figure 6-4. PCA Removed from Chassis, Bottom Side Visible...
  • Page 274 This supplement contains information necessary to ensure the accuracy of the above manual. This manual is distributed as an electronic manual on the following CD-ROM: CD Title: 190 Series II CD Rev. & Date: 2, 1/2014 CD PN: 0040 244 00774 and 0040 247 00784 © 2015 Fluke Corporation. All rights reserved.
  • Page 275 190 Series II Users Manual Supplement Change #1, On page 9, remove the following sentence from the top of the page: 3/15...
  • Page 276 Manual Supplement 190 Series II Service...
  • Page 277 Change #1, Table 4-7. Input A, B, C, D Frequency Measurement Accuracy Test Time 5502A-SC... Model Voltage Frequency Input A, B Reading base MODE Change #2, Table 4-2. Vertical Accuracy Verification Points Allowable 5502A Allowable 5502A Output for trace Range 5Initial 5502A Setting, V ac, sine, 50 Hz amplitude of 6 divisions...
  • Page 278 Change #3, 643, 655 Specifications ScopeMeter 190 Series II Product Specifications Change #4, SP12 On our website you can discover more about electrical testing.

Table of Contents
