2.3.1 2012E Relay Board
Each relay board has 12 Form C relay contacts rated at 0.25 A max. / 100 VDC
max.
2.3.1.1 2012E Relay Board Components
JW1-12. Jumpers for selecting normally open or normally closed relay
operation. By default the relays are normally open.
For example, if you want relay 1 to be normally closed, then put the jumper on the
top two pins of JW1. If you want relay 1 to be normally open, then put the jumper
on the bottom two pins of JW1.
I1-12. LEDs indicating when each relay is active.
Relays 1 to 12. Screw terminal contacts for each relay.
Elevator Restriction System Installation and Operation Manual
NC
JW1
R E L A Y 1
NO
NC
JW2
R E L A Y 2
NO
NC
JW3
R E L A Y 3
NO
NC
JW4
R E L A Y 4
NO
NC
JW5
R E L A Y 5
NO
NC
JW6
R E L A Y 6
NO
NC
JW7
R E L A Y 7
NO
NC
JW8
R E L A Y 8
NO
NC
JW9
R E L A Y 9
NO
NC
JW10
R E L A Y 1 0
NO
NC
JW11
R E L A Y 1 1
NO
NC
JW12
R E L A Y 1 2
NO

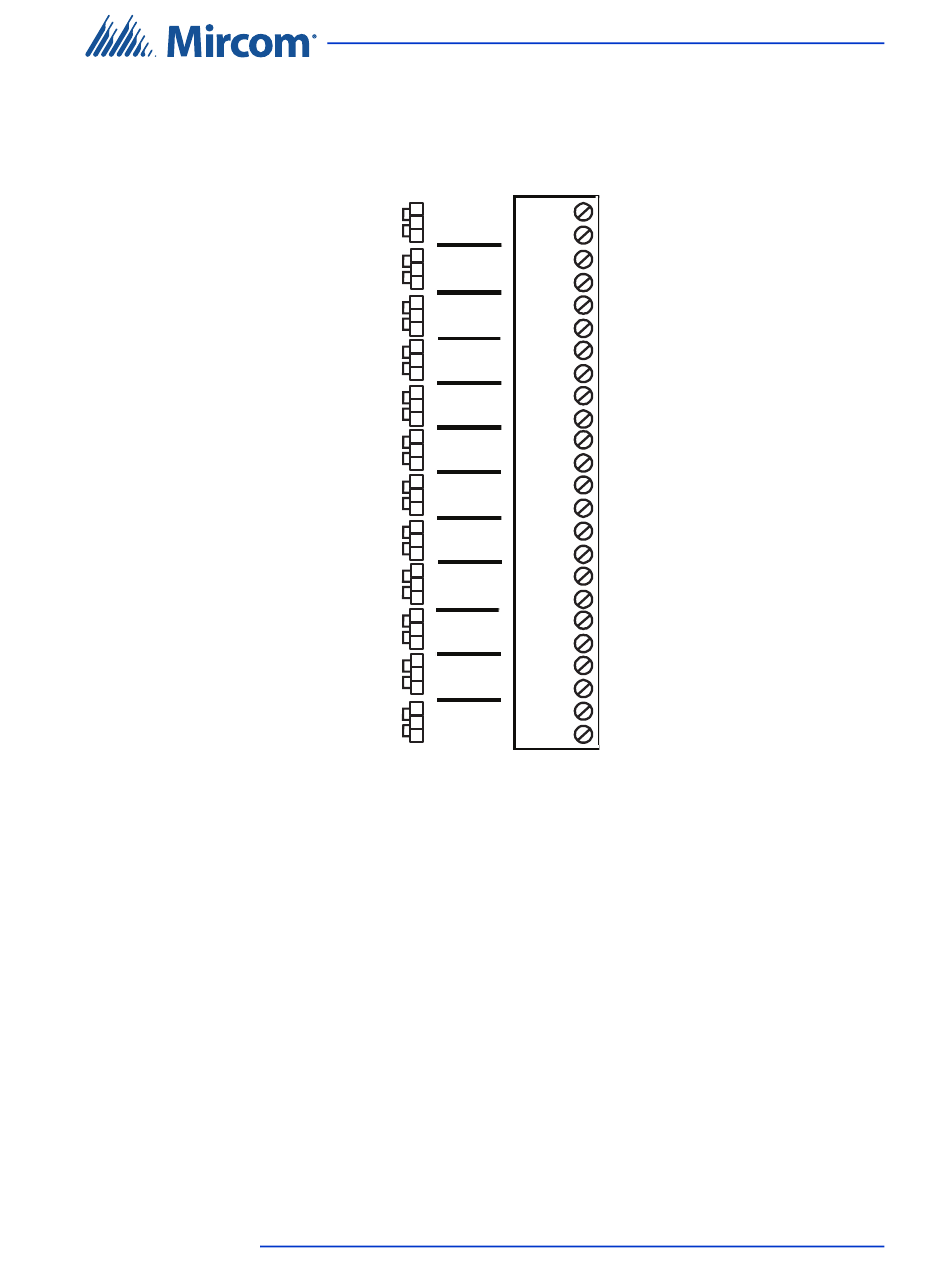

Figure 9. 2012E Elevator Restriction Relay Board
Installing the Elevator Restriction Unit
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
C o m
N O / N C
