1.5 Telephone Access System and New Elevator
Restriction Firmware

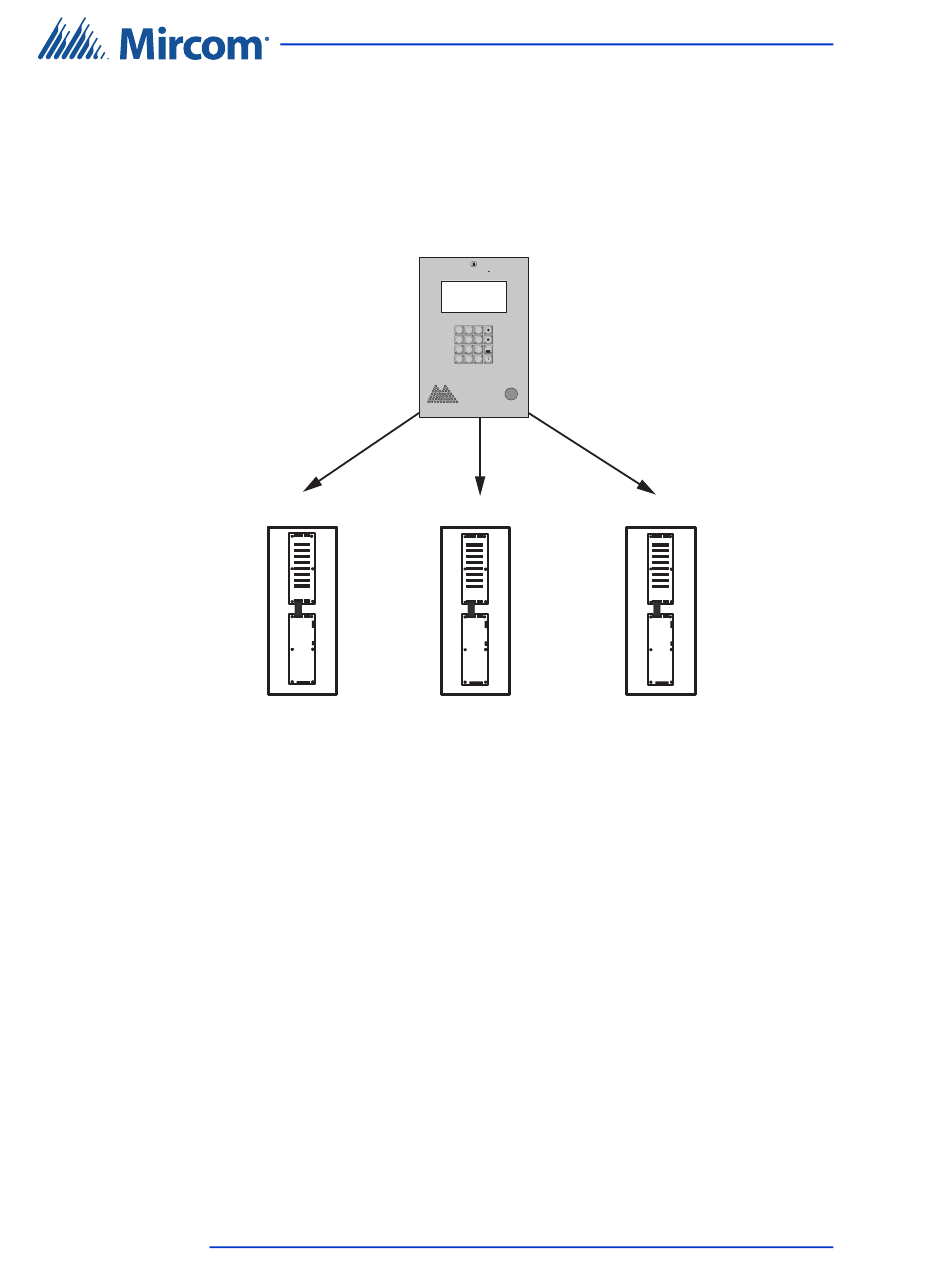

Figure 4 is a conceptual diagram of an example system with three elevator cabs
and a Telephone Access Controller. There is an elevator restriction unit (ERU)
restricting each cab, for a total of three elevator restriction units.
Floors are grouped into floor groups. For example, consider a 4-floor building
where residents are allowed access only to the floor they live on and the ground
floor. There are 3 Floor Groups:
•
•
•
Each resident is assigned to one of these Floor Groups depending on which floor
he lives on. Each resident is also assigned one or more ERUs.
When a resident grants a visitor access, the Telephone Access Controller
activates the resident's Floor Group on the ERUs that are assigned to that
resident, for a configurable amount of time.
Elevator Restriction System Installation and Operation Manual
10
controls
ERU 1
Figure 4. Elevator Restriction Units (ERU) and a Telephone
Access Controller
Floor Group 1: Floors 1 and 2
Floor Group 2: Floors 1 and 3
Floor Group 3: Floors 1 and 4
Telephone Access
1 2 3
Controller
4 5 6
7 8 9
* 0 #
controls
controls
ERU 2
Introduction
ERU 3
