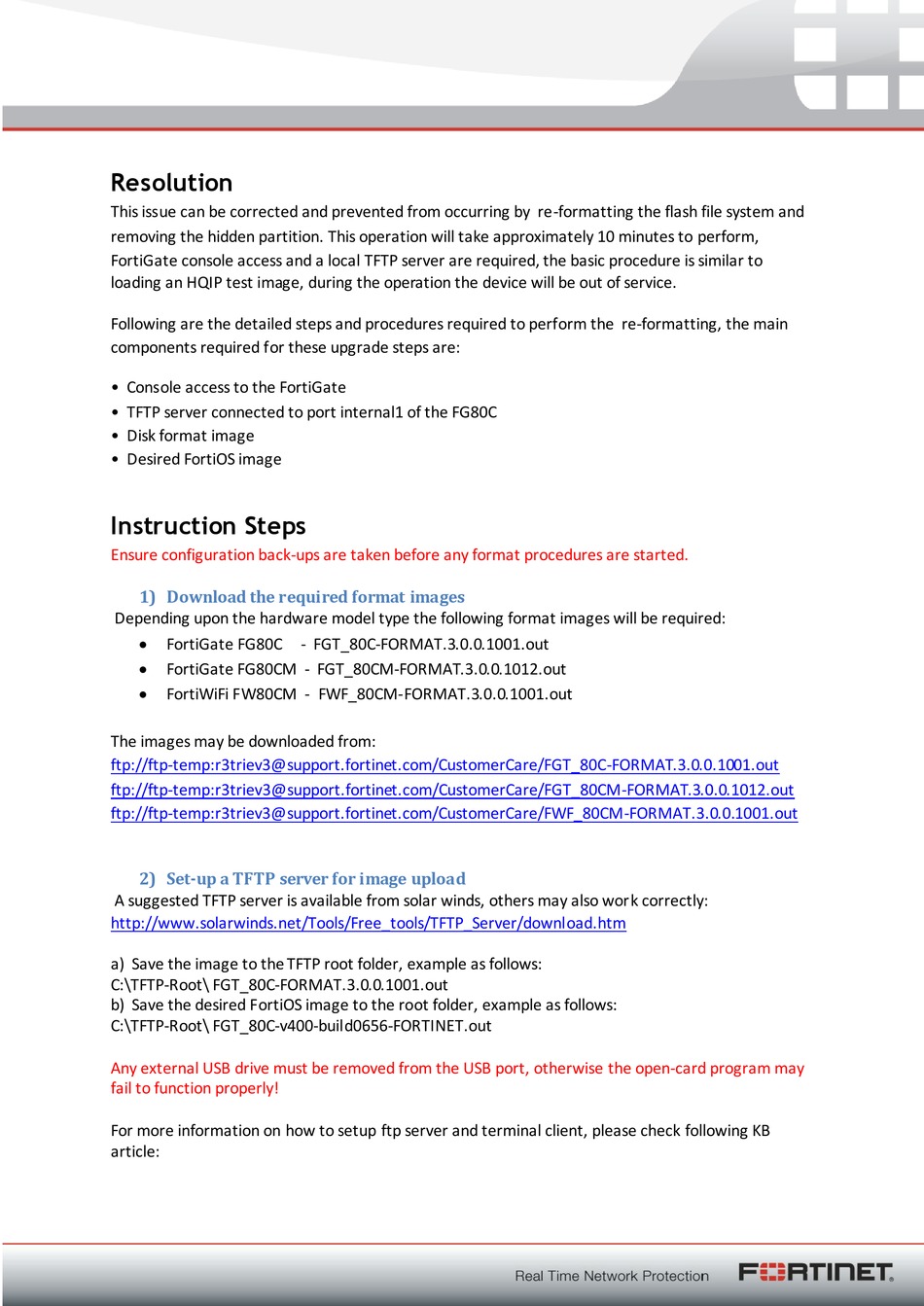

Resolution

This issue can be corrected and prevented from occurring by re-formatting the flash file system and
removing the hidden partition. This operation will take approximately 10 minutes to perform,
FortiGate console access and a local TFTP server are required, the basic procedure is similar to
loading an HQIP test image, during the operation the device will be out of service.
Following are the detailed steps and procedures required to perform the re-formatting, the main
components required for these upgrade steps are:
• Console access to the FortiGate
• TFTP server connected to port internal1 of the FG80C
• Disk format image
• Desired FortiOS image

Instruction Steps

Ensure configuration back-ups are taken before any format procedures are started.
1) Download the required format images
Depending upon the hardware model type the following format images will be required:

FortiGate FG80C - FGT_80C-FORMAT.3.0.0.1001.out

FortiGate FG80CM - FGT_80CM-FORMAT.3.0.0.1012.out

FortiWiFi FW80CM - FWF_80CM-FORMAT.3.0.0.1001.out
The images may be downloaded from:
ftp://ftp-temp:r3triev3@support.fortinet.com/CustomerCare/FGT_80C-FORMAT.3.0.0.1001.out
ftp://ftp-temp:r3triev3@support.fortinet.com/CustomerCare/FGT_80CM-FORMAT.3.0.0.1012.out
ftp://ftp-temp:r3triev3@support.fortinet.com/CustomerCare/FWF_80CM-FORMAT.3.0.0.1001.out
2) Set-up a TFTP server for image upload
A suggested TFTP server is available from solar winds, others may also work correctly:
http://www.solarwinds.net/Tools/Free_tools/TFTP_Server/download.htm
a) Save the image to the TFTP root folder, example as follows:
C:\TFTP-Root\ FGT_80C-FORMAT.3.0.0.1001.out
b) Save the desired FortiOS image to the root folder, example as follows:
C:\TFTP-Root\ FGT_80C-v400-build0656-FORTINET.out
Any external USB drive must be removed from the USB port, otherwise the open-card program may
fail to function properly!
For more information on how to setup ftp server and terminal client, please check following KB
article:
