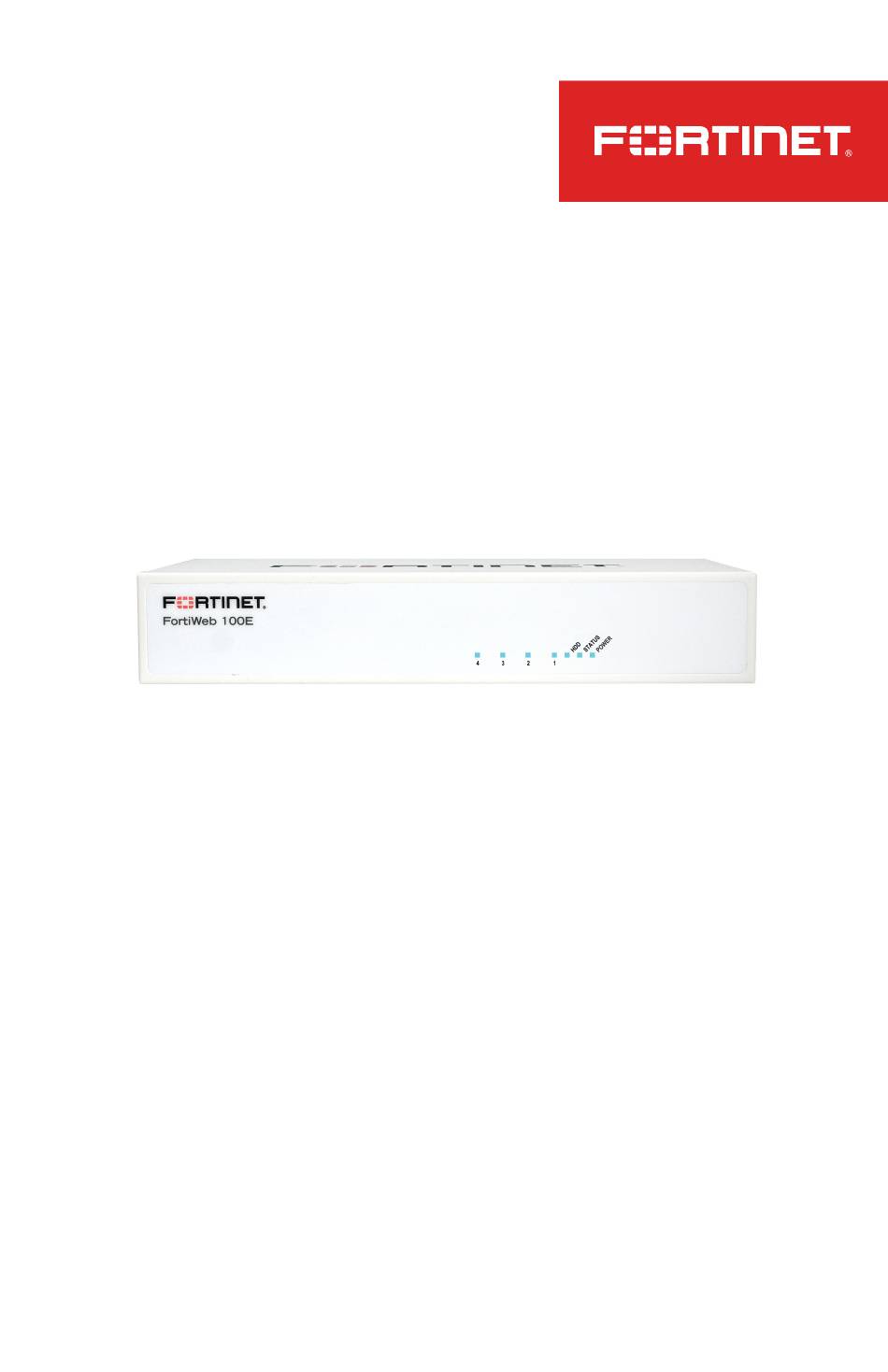

- Page 1 FortiWeb 100E QuickStart Guide...
-
Page 2: Product Registration
Copyright© 2020 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. -
Page 3: Box Includes
Box Includes Front Panel FortiWeb 100E Ports 1 to 4 Status Link established at 1000/100/10Mbps Green: Flashing Green: Data activity Off: No link established AC DC Power Adapter HDD Status Amber: Hard Disk connected QuickStart Guide Data activity Flashing Amber:... -
Page 4: Rear Panel
Basic Connections Rear Panel Plug in your device to a power outlet using the provided power cable and connect the Internet to any port using the provided Ethernet cable. RESET RESET Power Supply 12V DC with AC-DC adapter, 100V-240V, 50/60Hz, 1.7A Max CONSOLE (RJ45) Power Connection Power Outlet... -
Page 5: Desktop Installation
Desktop Installation You can also install this device as a desktop unit. Place the unit on a flat, clean and stable surface Ensure there is at least 1.5in of clearance for adequate airflow 1.5in 1.5in 1.5in 1.5in Plug in the provided power cables into the rear of the unit and then into a grounded electrical outlet or separate power source... -
Page 6: Setup Options
Setup Options Set up your device locally using the GUI or CLI. Choose an option to complete your setup, then configure your device. easy-to-use GUI, compatible with most web browsers. Local Setup FortiWeb Port 1 Management Computer Command Line Interface (CLI) Ethernet Cable An alternate configuration tool from the web-based manager that Local Setup... - Page 7 Deployment Setup Integrate with other Fortinet Security Fabric elements, including FortiGate and FortiSandbox, to deliver APT (advanced persistent threat) protection. WCCP External USB Port Console Port FortiGate USB Console Cable 1. Connect the Console Port with the Console cable to the...
- Page 8 Product Safety Electrical Appliance & Material (PSE) – Japan 日本では電気用品安全法(PSE)の規定により、同梱している電源コードは本製 品の専用電源コードとして利用し、他の製品に使用しないでください。 Bureau of Standards Metrology and Inspection (BSMI) – Taiwan The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi 英屬蓋曼群島商防特網股份有限公司台灣分公司 地址：台北市內湖區行愛路176號2樓 電話：(02) 27961666...
- Page 9 Fortinet.com...
