Summary of Contents for EJEAS Q7

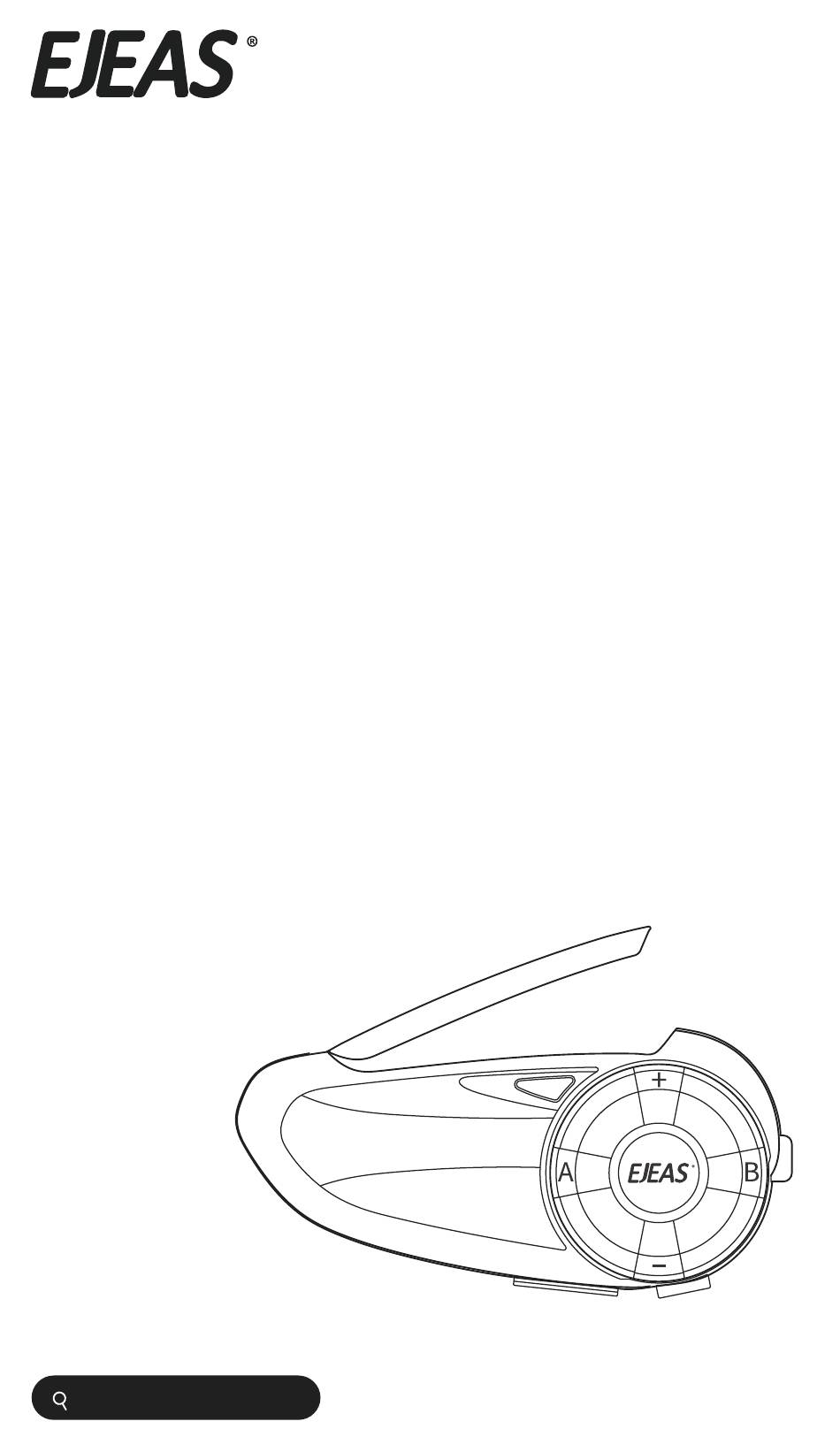

- Page 1 User manual Top Quality Hi-Fi Motorcycle Bluetooth Intercom www.ejeas.com...

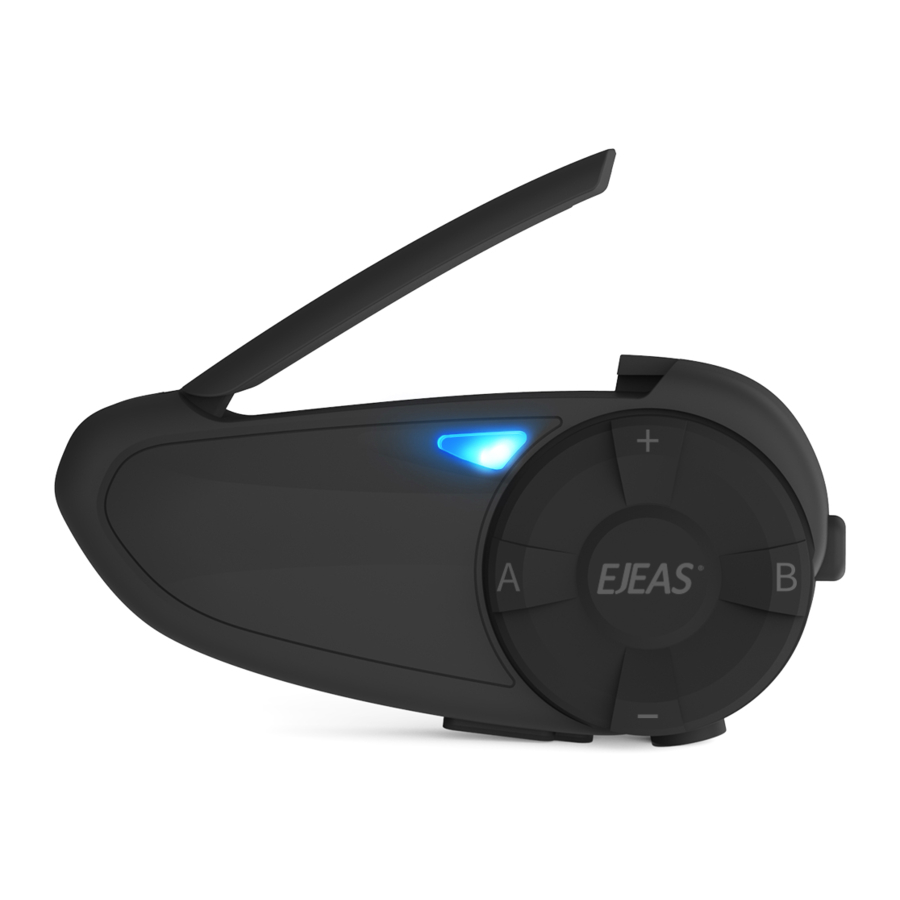

- Page 2 English Q7 is a cost-effective Bluetooth communication system for motorcycle helmets. The Qualcomm 5.0 chip is adopted to quickly pair in one second. The actual maximum communication distance reaches to 800 meters. It can realize seven people switching and talking with each other. FM support, and can automati- cally answer the phone, more convenient and safe to use.
-
Page 3: Product Installation
English 1. Product Installation Loosen the screws of the clip, install it on your helmet for fixed. Install the intercom on the clip. Use the Velcro stick inside your helmet, choose the stick/soft mic for your need. Organize the inside messy cables, and put them inside your helmet foam for easy wearing. -
Page 4: Packing List
2. Packing list Optional Host Earphone EUC remote control handle Mounting clip Microphone Cable User manual Top Quality Hi-Fi Motorcycle Bluetooth Intercom www.ejeas.com Type-C Soft microphone Manual charging cable 3. Operating Instruction Basic operating diagram Single-click Double-click Triple-click Long-press for 5s... - Page 5 Standby Lights off Blue light flashes slowly Two-model Pairing Power on, long-press the A-key for 5s of both Q7, enter the pairing mode and automatically search for getting connected Red & Blue lights quick flash "Intercom A pairing" Pairing successful, start communication Blue light flashes simultaneously "Intercom pairing successful"...
- Page 6 English Turn ON. Regard one as host, the rest are all sub-intercom Pair with A sub-intercom Long-press the A-key for 5s of the host and A sub-intercom, enter the pairing mode and automatically Host search for getting connected "Intercom A pairing" A sub-intercom Pairing successful, start communication "Intercom A connected"...
- Page 7 English Intercom Switching Only the Host allows to switch. Single-click to talk Double-click to talk Triple-click to talk to A intercom to C intercom to E intercom Single-click to talk Double-click to talk Triple-click to talk to B intercom to D intercom to F intercom Intercom switching Start talking...
-
Page 8: Phone Pairing
English Compatible with Other EJEAS Model When pairing with other Bluetooth intercoms of the same brand. Turn ON Regard Q7 as host, the rest are all sub-intercom Others Long-press Q7's A-key for 5s, enters the pairing mode Press the corre-... - Page 9 English Phone Disconnected Phone Re-connection Automatically connect back to the last paired Telephone Answering Hang up The Call Auto answering within 8s if no any operation Call Rejection Last Num Redial Cancel the Redial TEL Priority When listening to music/FM/intercom, and receiving a phone call. Music Music Intercom...
-
Page 10: Volume Control
English FM ON/OFF 76~108MHz Auto search & radio, intercom & radio could working at the same time. Press for 1s to open the FM "FM radio" Long-press for 1s again to turn off the FM "FM radio off" FM Frequency Switching Frequency + Frequency - Volume control... -
Page 11: Voice Assistant
English Voice Assistant Phone must support & open the voice assistant (Google assistant & Siri). Voice Assistant Turn on voice assistant Press the phone button for 1 second Power Query "Battery level high" "Battery level medium" "Battery level low" Low Battery Indication Charging Indication Charging Red light always on... -
Page 12: Product Characteristics
English 4. Product Characteristics Bluetooth Version: Bluetooth 5.0 Support: Qualcomm®aptX™, CVC noise reduction, 3D sound effect Audio encoding format: SBC & AAC Intercom mode: Two-person intercom, can save 6 way switch intercom Intercom communication distance: Up to 800 meters Bluetooth headset distance: More than 10 meters Music time: 22 hours... -
Page 13: Precautions For Battery Use
English Attention Installing equipment on the helmet is a modification of the helmet, which may cause the helmet's warranty to fail or hinder the helmet's function. This may cause danger in the event of accidents, so please fully understand the facts when using the helmet. If not, please return the product. Before driving, please makesure that the product is firmly and correctly mounted on the helmet. -
Page 14: Safety Precaution
English Safety Precaution 1. Keep out of reach of children and pets: Please keep the products and all spare parts out of reach of children and pets. Children or pets may swallow small parts that can cause suffocation or other dangerous conditions. 2. - Page 15 English NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equi pment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
