Summary of Contents for EJEAS MS20

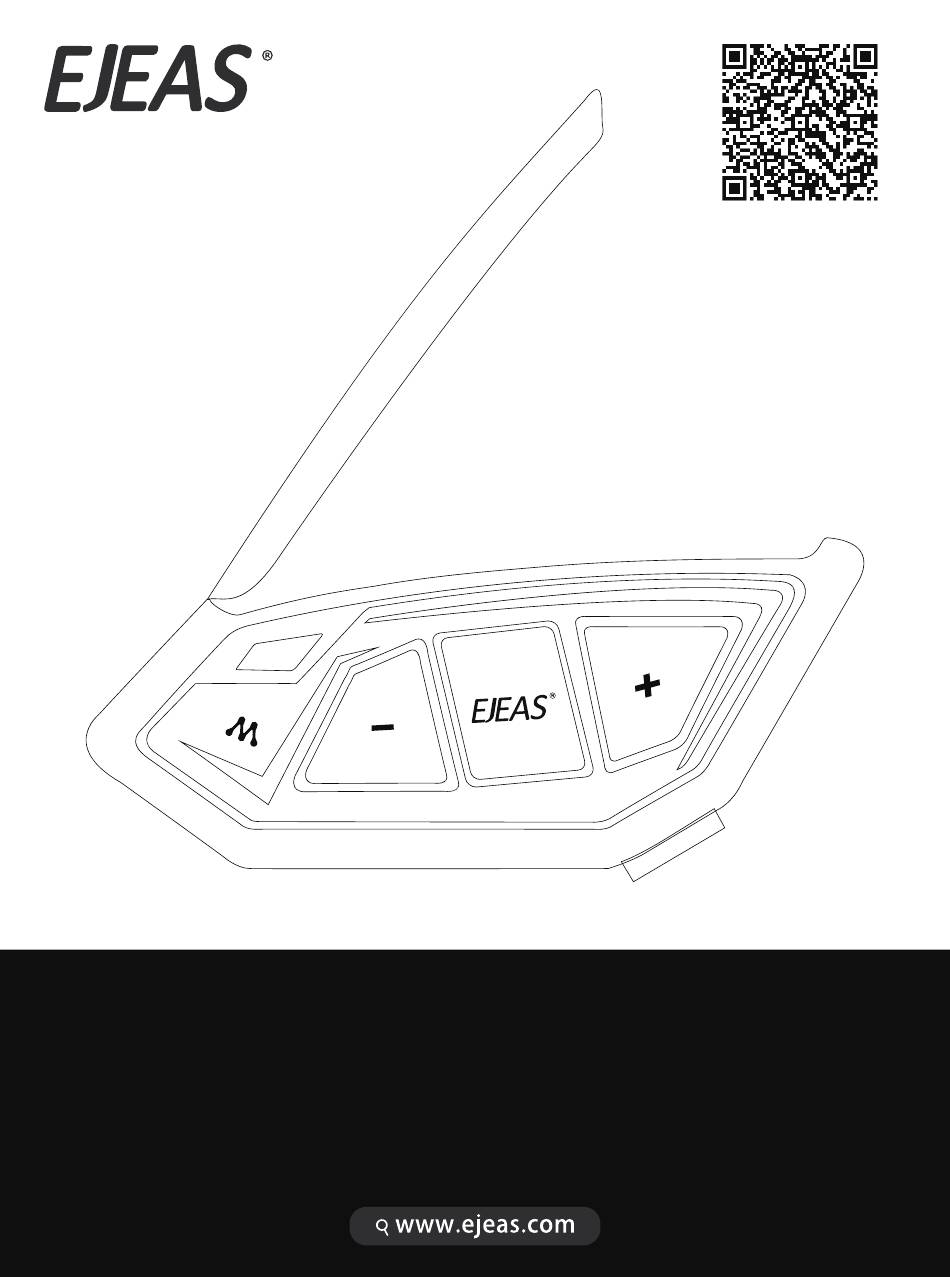

- Page 1 More Languages MS20 User Manual Mesh Group Intercom System...
-
Page 2: Product Details

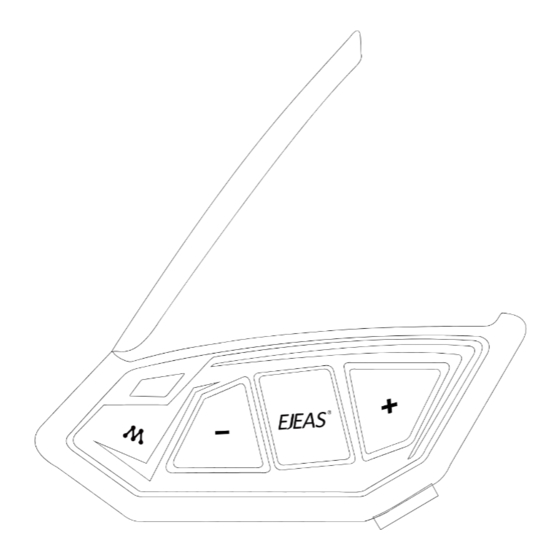

Product Details Antenna LED Light Blue Green Volume + M Button Charging Volume - Phone/ Interface/ Power Button Headphone Jack MS20 Intercom Bluetooth Intercom Music Share Auto Phone Answering Voice Assistant FM Radio Support EUC Remote Support Mobile App... -
Page 3: Product Operation
Product Operation Operation Diagram Click Double-click Long-press Long press Long press for 2 seconds for 5 seconds Basic Operation Power ON/OFF Please charge it before using Long press <Phone/Power Button > for 1 second, Long press <Phone/Power Button > + < until the blue light flashes with a voice prompt. -
Page 4: Microphone Mute
Mesh Intercom Mesh intercom is a multi-hop technology mesh network intercom (Communication frequency 470-488MHz). On account of large number of participants and unrestricted location, people are able to move at will within the effective range. It is not only superior to the traditional Bluetooth When entering the Mesh network, Bluetooth music can be chain intercom, but has a longer transmission distance and played at the same time .When someone speaks, it will... -
Page 5: Intercom Reconnection
Pairing Steps as Members： All devices first enter the intercom pairing state, long press <M Button> (about 5s) until you hear a prompt and the red light and green light flash alternately. Red light and green light flash alternately “Mesh Pairing” Take one of them as the paired server, press <M Button>... - Page 6 Pairing Steps as Listeners： To become a team listening role, the prerequisite is that the other intercoms have been paired to form a team simultaneously. The pairing steps is taken as followed. Take the intercom to be paired, enter listening mode pairing, long press <M Button>...
-
Page 7: Bluetooth Intercom
Bluetooth Intercom How To Pair With The Device After powering on the device, press and hold <Phone/Power Button> + <Volume +> (about 5s) until the red and blue lights flash alternately, and the pairing voice prompts "Intercom Pairing". Wait for connection to other intercoms. - Page 8 Pairing With Headsets or Other Branded Bluetooth Intercoms Search Note: It is not guaranteed to be compatible with all Bluetooth headsets or intercoms on the market. Long press <Phone/Power Button> + <Volume +> (approx. 5s) until the red and blue lights flash alternately and the prompt "Intercom pairing"...
-
Page 9: Mobile Phone Pairing
<Phone/Power Button> until the red and blue lights flash alternately and the voice prompts "Phone Pairing". Red light and blue light flash alternately The phone searches for the device named "MS20" using Bluetooth. Click on it to connect. MS20... -
Page 10: Voice Assistant
“Open Music” “ ” Previous Song Voice Assistant “ ” Next Song “ ” Call EJEAS Press and hold <Phone/Power Button> to wake “ ” Open Navigation up voice assistant. Music Control Play/Pause Previous Song Next Song Music Playing Volume -... -
Page 11: Switching Channels
FM Radio FM On/Off After turning on the FM radio, it will automatically search for stations and play the found station. FM can be turned on during the intercom, and you can listen to the radio while talking. Press and hold <Volume +>... -
Page 12: Music Share
Music Share Share the music played by Bluetooth on your phone to another device, and this function cannot be used during Bluetooth intercom. This function cannot be used when two phones are connected simultaneously. Take an intercom as the host, connect it to the phone, and the other one is the slave. -
Page 13: Buttons Introduction
EUC Remote Controller (Optional) Buttons Introduction Actions Function Buttons FM Button C Button Short press Volume + B Button Volume + A Button Next song when music is playing. Long press Increase the frequency when FM is on Double click FM volume + Volume + Short press... - Page 14 EUC Pairing Press and hold the <Phone/Power Button> + <Volume -> for about 5s to enter the pairing mode, the voice prompts "Remote Control Pairing", the red and blue lights flash alternately, if the pairing is not successful within 2 minutes, exit the pairing. Red light and blue light flash alternately Press and hold the <...
-
Page 15: Restore Default Settings
Firmware Upgrades Connect to the computer with a USB data cable. Download and open the "EJEAS Upgrade.exe" upgrade software. Click on the "Upgrade" button to start and wait for the upgrade to complete. -
Page 16: Mobile App
Mobile App Download and install EJEAS SafeRiding mobile APP for the first time. Press and hold (approx. 5s) <Phone/Power Button> until the red and blue lights flash alternately to enter phone pairing. Red light and blue light flash alternately Open the APP, click on the Bluetooth icon in the...
