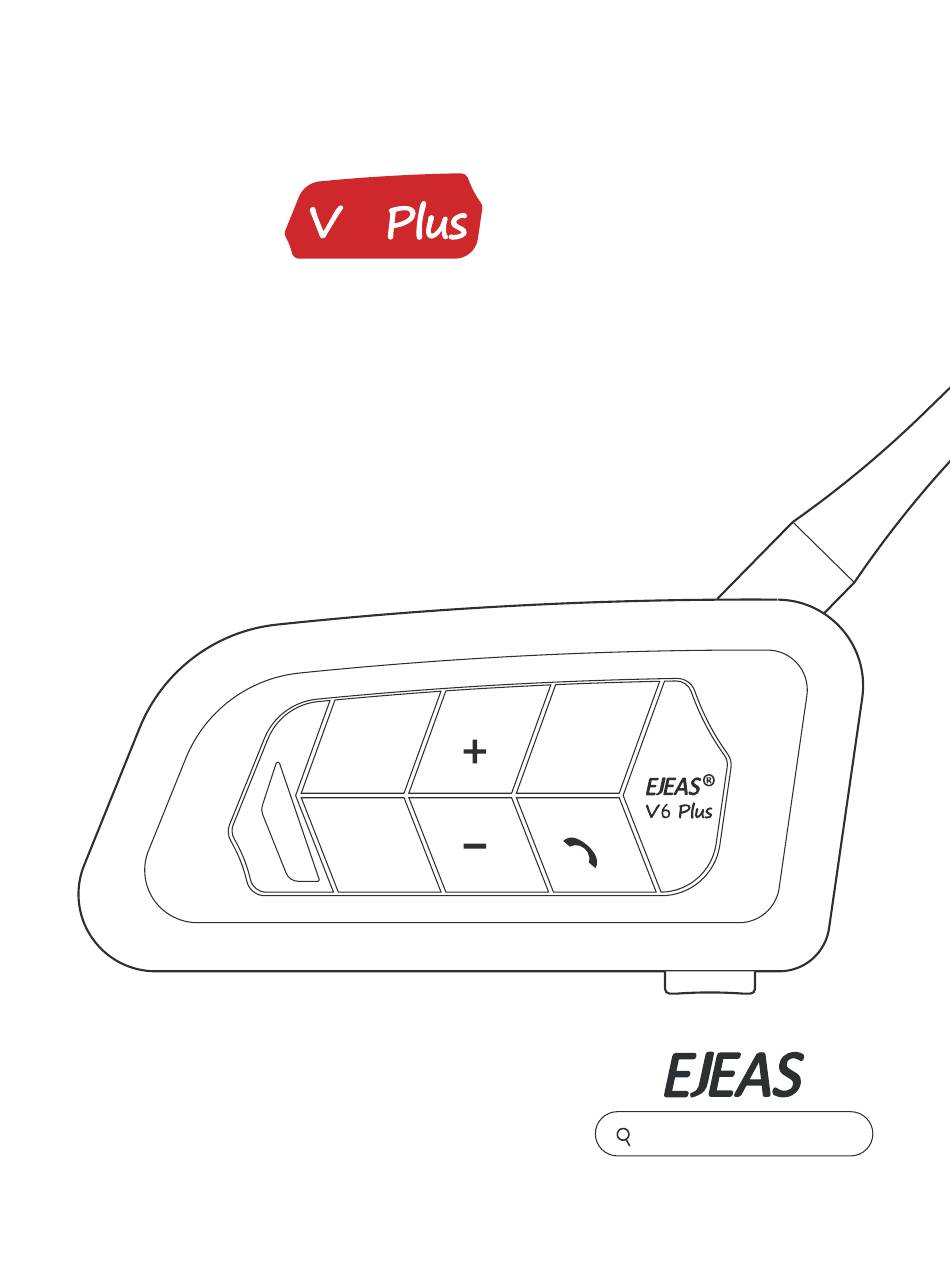

- Page 1 USER MANUAL M oto rcy cl e Inter co m S ystem www.ejeas.com...
-
Page 2: Product Details
Product Details Antenna Volume + A Button FM Button Indicator Phone/ Power Button Volume - B Button 3.5mm Round hole charging/ Earphone interface Product Installtion Loosen the screws of the clip, Organize the inside messy cables, install it on your helmet for fixed. and put them inside your helmet foam for easy wearing. -
Page 3: Product Operations
Product Operations Operation Diagram Long Press Click Double Click Long Press Simultaneously for 5s for 5s Basic Operations Power ON/OFF Please charge it before using. Prompt tone Lights off Standby Blue light flashes slowly Battery Level "Battery Level High" "Battery Level Medium" "Battery Level Low"... -
Page 4: Low Battery Indication
Low Battery Indication Charging Indication Charging Red light double Red light is on flashes quickly Full "Low Battery" Red light is off Volume Control FM and intercom can be used at the same time. Intercom / Calling / Music / FM When Intercom &... -
Page 5: Bluetooth Intercom
Bluetooth Intercom 2-Way Intercom Pairing Long press both <A Button> of device 1 and <B Button> of device 2 for 5s, waiting to pair. Red and blue lights flash alternately Searching and paring. Paring successfully. Connected, start communication. 3-Way Intercom Pairing Pair device 1 and device 2 as above one step. - Page 6 4-Way Intercom Pairing Device 1, device 2, and device 3 are paired as above two steps. Long press both <A Button> of device 3 and <B Button> of device 4 for 5s, waiting to pair. Red and blue lights flash alternately Searching and paring.
- Page 7 5-Way Intercom Pairing Device 1, device 2, device 3, and device 4 are paired as above two steps. Long press both <A Button> of device 4 and <B Button> of device 5 for 5s, waiting to pair. Red and blue lights flash alternately Searching and paring.
- Page 8 6-Way Intercom Pairing Device 1, device 2, device 3, d e v i c e 4 , a n d d e v i c e 5 a r e paired as above two steps. Long press both <A Button> of device 5 and <B Button>...
-
Page 9: Intercom Reconnection
Intercom Reconnection Reconnect after disconnection or boot. (Examples of the device 2) To connect device 3, click <A Button> of device 2. To connect device 1, click <B Button> of device 2. Device 1 & device 2 (or device 2 & device 3) connection is successful. {Blue light flashes once + stays on for 2s} and cycle Device 1 &... - Page 10 Compatible with Old Intercom Pairing Long press both < Volume - > V6 Plus and <A Button> of V6 Plus for 5s, while long press <B Button> of V4 for 3s. Red and blue lights flash alternately Long press both < Volume - >...
- Page 11 Red and blue lights flash alternately Other devices enter Bluetooth Supports other search mode. HFP protocol Click <A Button> of V6 Plus to V6 Plus connect. Pairing of Bluetooth HFP-HF Long press both <Volume +> and <B Button> of V6 Plus simultaneously for 5s.
-
Page 12: Bluetooth Pairing
Tu r n o n t h e B l u e t o o t h o f t h e mobile phone and click on the Bluetooth device. V6 Plus Pairing successful. Blue light twice flashes slowly "Pairing Successful"... -
Page 13: Mobile Phone
Mobile Phone Answer a Call Auto answering within 8s if no any operation. Reject a Call Last Call Replay End a Call TEL Priority When listening to music/FM/intercom, and receiving a phone call. Call Hang up music music intercom intercom Interrupt Restore... -
Page 14: Music Control
Voice Assistant Phone must support the voice assistant (Google assistant & Siri). Voice assistant Turn on voice assistant. Long press the <Phone Button> for 1s. Music Control Music Play/Pause Music Switching FM Radio FM ON/OFF 76~108MHz Auto search and radio, intercom and radio could working at the same time. Long press <FM Button>... - Page 15 Frequency Switching Frequency - Frequency + EUC Remote Control (Optional) EUC Details Useless Button B Button A Button Volume + Phone Volume -...
- Page 16 -> of EUC for 5s to clear the pairing record of EUC. Red and Blue lights consistently on Long press both <Phone Button> and <B Button> of V6 Plus for 5s. Red and blue lights flash alternately and quickly "Remote Control Pairing" Click any key of EUC.
- Page 17 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
