Full duplex industrial mesh digital intercom (12 pages)
Summary of Contents for EJEAS X10
Page 1
MESH Intercom Expert More Languages User Manual Certified Version Model Model Mesh Groups Intercom System 10-Riders...
Page 2

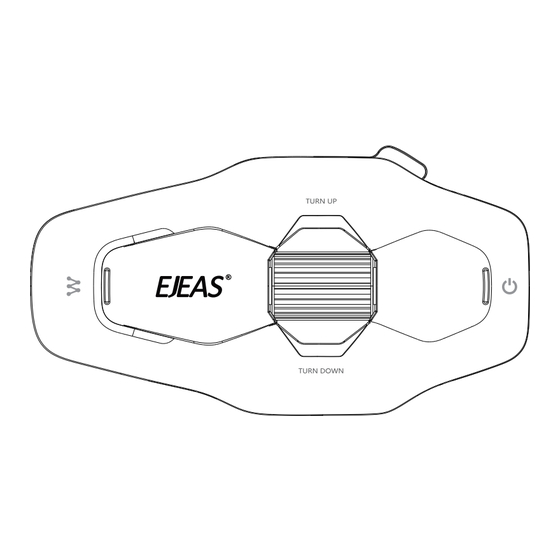

Product Introduction Track Roller LED indicator light Blue Green Intercom Power On/ Button Phone Button MESH 10 Replaceable Music Sharing IP67 Waterproof Person Intercom Color Cases Magnetic Connects to other Automatic Intelligent reconnection within Voice Control Charging brands of 5ms after Bluetooth radios effective distance disconnection...
Page 4
Product Operation Button Description Click Double Three Long press Long press Long press Click Click for 1 second for 3 second for 5 second Basic Operation Power on/off Please charge it well before use. Power on Power off Long press (about 1 second) the <Phone/ Press and hold <Phone/Power Button>...
Page 5
Mesh Intercom Function Mesh intercom is a multi-hop technology mesh network intercom (communication frequency 470~488MHz), the number of intercom, and is not subject to positional restrictions, effective intercom range of personnel can be moved arbitrarily, superior to the traditional chained Resonance Function bluetooth intercom, but also has a longer transmission (When Mesh is enabled, Bluetooth...
Page 6
Intercom pairing process with group member roles: All radios first enter the intercom pairing state, long press the <Intercom key> (about 5s) until you hear a beep and the red and green lights flash alternately. Red light and green light flashing alternately “Mesh System Pairing”...
Page 7
Bluetooth intercom function for two persons After switching on the radio, press and hold the <Track Roller> (about 5s) until the red and blue lights flash alternately, and there is a pairing voice prompting ‘Bluetooth intercom pairing, wait for connecting with other intercom. Red and blue lights flash alternately “Bluetooth intercom pairing”...
Page 8
Pairing Success. Firmware Upgrade EJEAS Use EJEAS mobile phone APP or magnetic dock to update the product firmware, download and open the ‘EJEAS Upgrade.exe’ upgrade software, click the ‘Upgrade’ button to start upgrading, wait for the upgrade to complete. Note: Charging and upgrading must be done with the data cable that...
Page 9
‘Pairing the phone’. The red and blue lights flash alternately. “Mobile Phone Pairing” Search for the device named ‘X10’ on your mobile phone's Bluetooth and click on it to pair and connect. The connection Blue light slow double flash was successful “Pairing Success”...
Page 10
<Phone/On Button>, which requires support from your phone. “Turn on the music” “Previous song in music” Voice Assistant “Music Next” “Call EJEAS” Press and hold <Phone/On button> “Open the navigation” for 1 second to turn on the voice assistant function. Music Control...
Page 11
Radio (FM) FM on/off Automatically search for radio stations and play them automatically when they are searched for.FM can be turned on during intercom, so that you can listen to the radio while intercom. Double click the <Track Roller> and the prompt sound will be 'FM radio'.
Page 12
Music Sharing Share the music played on your mobile phone's Bluetooth to another device, this function cannot be used when Bluetooth intercom is available. This function cannot be used when two mobile phones have been connected at the same time. Take one intercom as the master and connect it to the mobile phone and the other as the slave.
Page 13
Handle EUC(Optional) Button Description Buttons Actions Function Intercom Volume +/ Short Press Music Volume +/ FM Volume + FM Button Next song when music Volume + Long press is playing / When FM is on, tune up C Button Double click B Button None A Button...
Page 14
Handle Pairing Long press the product <Phone Button> + <Track Roller> for about 3s, enter the joystick pairing mode, voice prompts “Remote Control Joystick Pairing”, red and blue lights flash alternately, no pairing success in 2 minutes, exit pairing. The red and blue lights flash alternately “Remote Control Handle Pairing”...
Page 15
Mobile APP Download and install the EJEAS Mobile App for the first time. EJEAS Long press (approx. 5s) <Phone/On Button> until the red and blue lights flash alternately fast to enter phone pairing. The red and blue lights flash alternately.
Page 16
Intelligent voice function The X10 supports the intelligent voice function, which allows you to control the intercom through the machine's built-in voice phrases. This greatly simplifies the experience and enhances operational efficiency. Operation method: Step 1: The intercom is turned on. The Intelligent Voice function can only be used when the intercom is on.
