Avocent DSR Series DSR1024 Quick Installation Manual

The following instructions will help you
to connect your DSR switch.
Should you require further assistance, please
consult your installer/user guide.
1

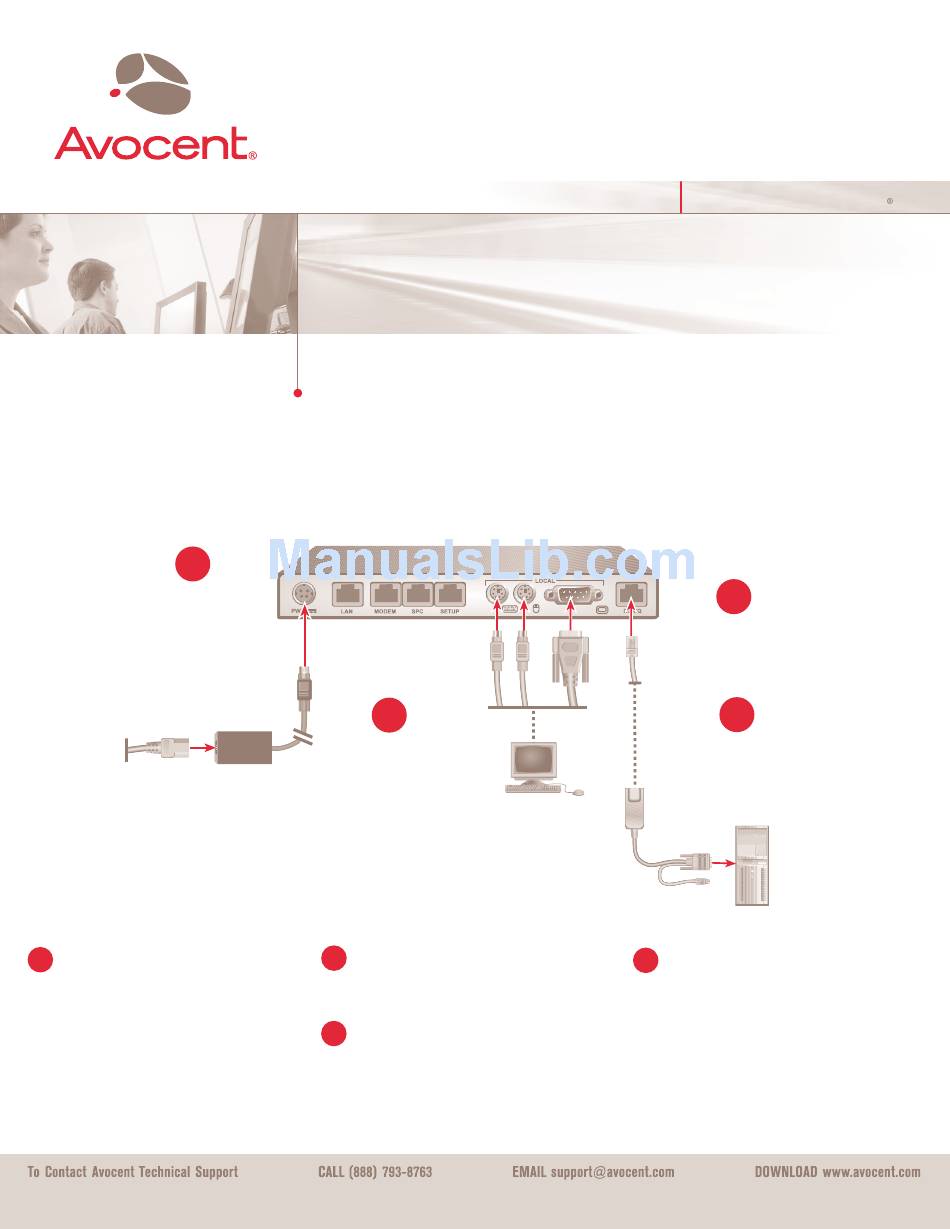

Power down the
target server and
attach the power cord
to the DSR switch.
Transformer
1
Connecting power to the
DSR switch
Power down the target server that will be part of
your DSR switching system. Locate the power
transformer and cord that came with your DSR switch.
Plug the 4-pin connector into the rear of the DSR
switch. Plug one end of an AC power cord into the
transformer box and the other end into an appropriate
AC wall outlet.
Avocent, the Avocent logo, The Power of Being There, DSView and DSR are registered trademarks of Avocent Corporation. All other marks are the property of their respective owners. ©2004 Avocent Corporation. All rights reserved.
Quick Installation Guide
DSR
To connect a DSR switch
2
Plug in the keyboard,
monitor and mouse for
Power
your local connection.
2
Connecting the local port
Plug a VGA monitor and the PS/2 keyboard and mouse
cables into the appropriately labeled DSR ports.
3
Connecting a DSRIQ module to the
DSR switch
Plug one end of a CAT 5 cable (4-pair, up to 10 meters)
into the DSRIQ port and plug the other end into the
RJ-45 connector of a DSRIQ module.
® 1024 Switch
DSR1024 Switch
Local
Connection
The Power of Being There
3
Connect a DSRIQ
module to the
DSR switch.
4
Connect the
server to the
DSRIQ module.
Server
4
Connecting the server to the
DSRIQ module
Plug the DSRIQ module into the appropriate ports on
the back of the target server.
(Continued on reverse side)
590-441-501A
