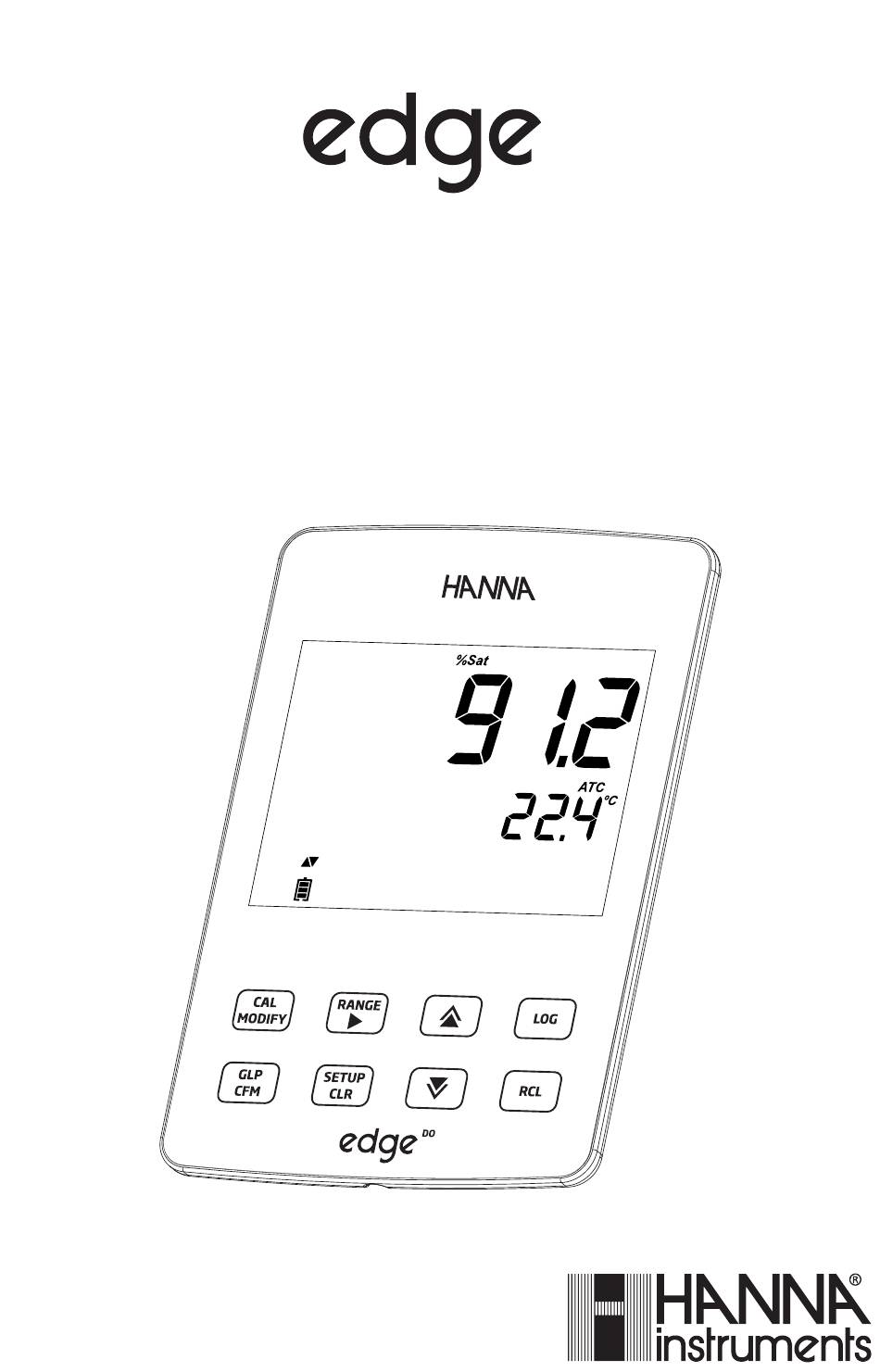

- Page 1 ®...
-
Page 2: Table Of Contents
Hanna representative near you at www.hannainst.com. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895 , USA Table of Included ...............................3... -
Page 3: Table Of Included
Remove the instrument & accessories from the packaging and verify damage Included has not occurred during shipping. Remove protective lm from meter. Notify your nearest Hanna Customer Service Center if damage is observed. Each instrument is supplied with: edge ® ( HI 2004 Bench cradle Wall cradle... -
Page 4: Description

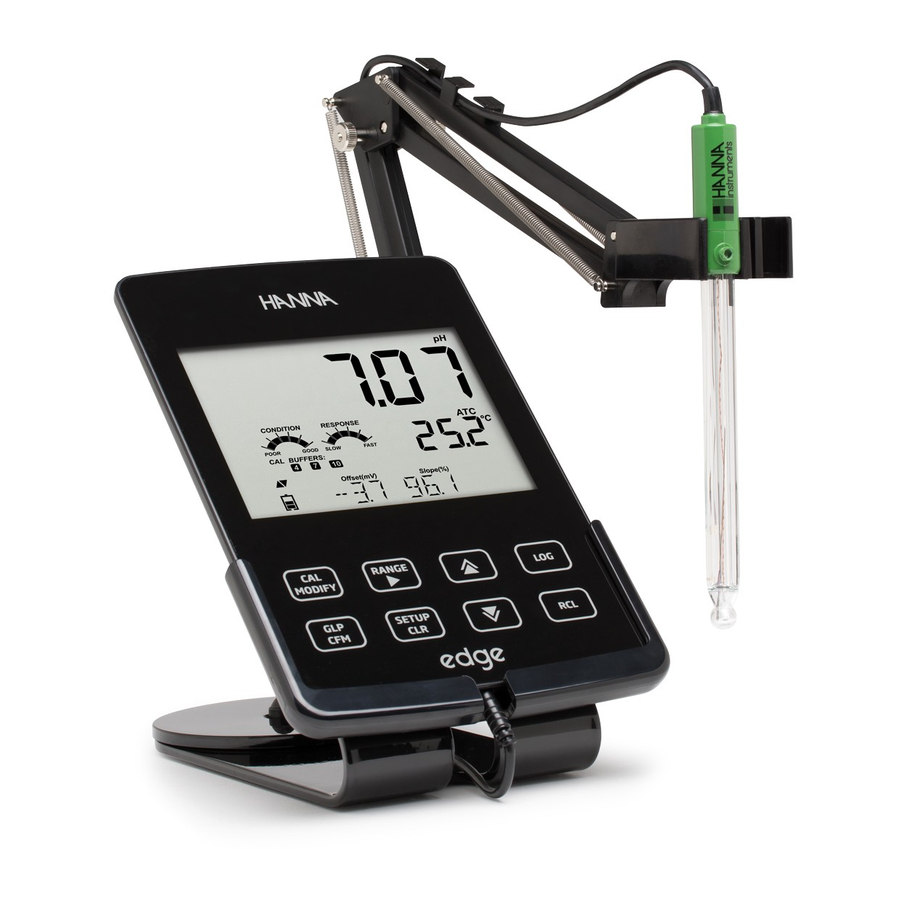

Description edge ® enables the user to make fast, accurate measurements of dissolved oxygen using one of the Hanna edge ® digital sensors for Dissolved Oxygen. Each digital sensors has a unique serial number that is automatically identi ed by the meter. Once connected to the meter, the sensor is ready to measure dissolved oxygen along with temperature. -
Page 5: Product Diagram
Product Diagram Liquid Crystal Display (LCD) Micro USB device connection for Capacitive Touch Keypad power or PC interface 3 mm jack input for edge ® Standard USB host connection digital probes for data transfer to a USB Top mounted ON/OFF button thumb-drive Diagram... -
Page 6: Probe Diagram
Probe Diagram Probes DO Electrode • Probes process signal directly for noise free measurements • Auto sensor recognition • Store calibration speci c data from the last calibration • Are built with materials suitable for use in chemical analysis • Have integrated temperature measurement •... -
Page 7: Keypad Function
Keypad Function CAL/MODIFY - Used to enter - Used to scroll through exit calibration mode. SETUP menu. Used change SETUP, used to initiate changes of a selection when modifying con guration setting. parameter in SETUP. GLP/CFM - Used to display GLP RCL (Recall) - Used to view calibration information. -
Page 8: Guide To Indicators
Guide to Indicators Mode tags Second LCD line, temperature Con rm tag measurement USB connection status 10. Temperature units Probes symbol 11. Temp. Compensation status Battery symbol 12. Measurement line Arrow tags, displayed when they 13. Measurement units are available 14. -
Page 9: Setup/Installation
The main operating modes of edge ® are setup, calibration, measurement, Setup/ data logging, and data export. Follow this general outline of steps to get you Installation started. The following topics are expanded upon in the sections that follow in Setting Up this manual. -
Page 10: Electrode & Probe Connections
Setting Up edge ® Connect the power adapter cable to the bottom socket of the wall cradle. Connect the other end to the power adapter and plug into line power. Connect the 3 mm probe jack to the socket located at the bottom of edge ®. -
Page 11: General Setup
The following General Setup options are displayed regardless of the sensor General being used. These settings remain when switching to another probe type or Setup when no probe is attached. Options are tabulated in the table below with choices and default values. Options are accessed by pressing SETUP. Loop through the options by using the pq arrows. - Page 12 General Option Description Choices Default Setup Used to save battery life by automatically turning o when 5, 10, 30, 60 no key press is Set Auto O 10 MIN detected for or O time set and meter is not in active logging or calibration mode.
- Page 13 Logging Note: • If powering edge ® through the micro USB connector to a PC, a SETUP Function option will require the choice “LOG ON EDGE” or “EXPORT TO PC“. • 1000 log records can be stored into edge ® memory. This memory is shared between and all logging types (Manual, Manual Stability, Interval logs).
-
Page 14: Logging Function
Logging A “PLEASE WAIT” message will be displayed followed by the number of free spaces. During active interval Function logging, lot information is displayed on the third LCD line. The line indicates in which lot the data will be placed and keeps track of the number of logged records taken. -
Page 15: Viewing Logged Data
Stability Logging Logging Select Stability and choose measurement stability Function criteria in the SETUP menu. To initiate the Stability log, press the LOG key while the instrument is in measurement. The “PLEASE WAIT” screen will be displayed brie y followed by a screen showing the stability tag, “LOG” tag and a “WAITING”... - Page 16 Viewing If no data was logged for the selected measurement range, the instrument displays the following Logged messages: Data • “NO MANUAL LOGS” • “NO STABILITY LOGS” Press CFM to enter inside lot information to view recorded data. Use the ARROW keys to toggle between di erent records. Use u to display GLP data including calibration information, date, time, etc.
- Page 17 Press CFM. The instrument will display “PLEASE WAIT” and then “CLEAR Viewing DONE” message. When individual logs are deleted within saved MANUAL or Logged STABILITY logs, the logs will renumber, lling in the deleted data but staying in Data chronological order. To delete all records of the MANUAL (STABILITY) log, proceed as described on page 16 for LOTS.
-
Page 18: Pc & Storage Interface
PC & Storage Logged data on edge ® can be transferred from the meter to a USB ash drive by using the log recall function. The minimum requirement for the drive is USB Interface 2.0. Select the DO record you wish to export and follow the simple steps below. Connect USB ash drive to the USB port, located on the top of the meter. - Page 19 Logged data on the edge ® can be transferred from the meter to a PC by PC & Storage following these simple directions. Suitable operating systems include Windows Interface (Xp minimum), OS X or Linux. Connect edge ® to the PC using the supplied micro USB cable. Turn on edge ®.
-
Page 20: Operational Guide
CAUTION: Use care during servicing and use. The HI 764080 contains a glass insulator. Do not drop or handle carelessly. Probes from Hanna Instruments are shipped dry. 1. Carefully remove the cardboard shipping tube used to protect the probe during shipping. Save the tube, should the probe be stored dry again. -
Page 21: Dissolved Oxygen Probe Diagram
The probe is polarized with a xed voltage of approximately 800 mV between Dissolved the cathode and anode. Probe polarization is essential for stable measurements. Oxygen With the probe properly polarized, oxygen is continually consumed as it passes Setup through gas permeable PTFE membrane. If polarization is interrupted, the electrolyte solution continues to be enriched with oxygen until it reaches an equilibrium with the surrounding solution. -
Page 22: Dissolved Oxygen Meter Con Guration
Dissolved DO (Dissolved Oxygen) meter operation is con gured using the SETUP key with a DO probe connected to the meter. The parameter-speci c options will be seen Oxygen inserted into the menu. Meter Con guration Parameter Description Choices Default Concentration -500, -400, -300, measurements of... -
Page 23: Dissolved Oxygen Calibration
Salinity and Altitude Compensation Dissolved Temperature, altitude and salinity compensation are used for DO concentration Oxygen measurements (ppm or mg/L). When the water is colder, it can hold more Meter dissolved oxygen, when it is warmer it holds less oxygen. Compensation Con guration for temperature-related solubility is done automatically using the built-in temperature sensor within the DO probe and algorithms in edge... - Page 24 Dissolved 100% Saturated Calibration It is suggested to perform the slope calibration in water-saturated air. Oxygen Pour water into a small beaker. Calibration Rinse the polarized probe with clean water. Dry the probe tip and allow a few seconds for the LCD reading to stabilize (probe in air).
-
Page 25: Dissolved Oxygen Calibration Messages
If the reading is outside limits, “WRONG STANDARD“ Dissolved message will be displayed. Oxygen Calibration Messages If the temperature is out of range (0.0 - 50.0 ºC) during calibration, then the message “WRONG STANDARD TEMPERATURE” will be displayed and temperature value will blink. - Page 26 The date of the calibration together with the Dissolved current reading. Oxygen Information Calibration Expiration status together with the current reading: If disabled, “EXPIRATION WARNING DISABLED” is displayed. If enabled, the number of days until the calibration alarm “CAL DUE” will be displayed. (i.e. “CAL EXPIRES IN 2 DAYS”) If enabled, the number of days the calibration has expired (i.e.
-
Page 27: Dissolved Oxygen Measurements
Oxygen is consumed during the measurement. For accurate DO measurements, Dissolved water movement of 0.3 m/s is suggested. This is to ensure that the oxygen- Oxygen depleted membrane surface is constantly measuring a representative sample. Measurements The use of a magnetic stirrer is recommended. The probe has a built-in temperature sensor. -
Page 28: Maintenance
Maintenance The DO probe body is made of PEI. Use the protective cap when the probe is not in use. To replace the membrane or Dissolved re ll with electrolyte, proceed as follows: Oxygen Probe For a new probe, remove the protective shipping tube by gently twisting and pulling it o the body of the probe (see g. -
Page 29: Troubleshooting Guide
Troubleshooting Symptoms Problems Solution Guide Readings uctuate up DO: DO probe electrolyte Remove cap. Re ll, tap and reinstall. and down (noise). contains entrapped gas. Verify area of cathode is free of bubbles inside cap. Verify solution movement past membrane. Remove The display shows DO Out of range in DO scale. -
Page 30: Speci Cations
Speci cations 0.00 to 45.00 ppm (mg/L) Dissolved Range 0.0 to 300.0% Oxygen 0.0 to 50.0 ºC (32.0 to 122.0 °F)** Speci cations 0.01 ppm (mg/L) Resolution 0.1% 0.1 °C Accuracy ±1.5% of reading or ±1 digit @ 25 °C / 77 °F ±0.5 ºC One or two points at 0% (HI 7040) and 100% (water saturated DO Calibration... -
Page 31: Accessories
Accessories HI 7040L Zero Oxygen Solution, 500 mL HI 7041S Re lling Electrolyte Solution, 30 mL HI 764080 Spare DO probe HI 764080A/P 5 spare membranes Other Accessories HI 75110/220U Voltage adapter from 115 VAC to 5 VDC (USA plug) HI 75110/220E Voltage adapter from 230 VAC to 5 VDC (European plug) HI 76404B... -
Page 32: Warranty
If the repair is not covered by the warranty, you will be noti ed of the charges incurred. If the instrument is to be returned to Hanna Instruments, rst obtain a Returned Goods Authorization number from the Technical Service department and then send it with shipping costs prepaid.
